■SF6 gas insulated Ring Main Unit (RMU)




RMU is a SF6 gas insulated metal-enclosed switchgear that used in 24kV, 3 phase 3 wire, 50Hz underground distribution system having the neutral solidly grounded at the distribution substations, here the fault level of the outgoing feeders is 16kA at system voltage of 24kV. RMU has 2-load break switch and 1- fuse combination switch. This equipment also works as Automatic Transfer Switches (ATS).

▼ To Resource



Rated voltage [kV]		24
Rated frequency [Hz]		50
Number of circuit		2-incoming feeder [LBS] 1-outging feeder [LBS w/ HRC fuse]
Rated current [A]		630A [2-in] 200A [1-out]
BIL(Basic Impulse Level) [kV]		125
Rated power frequency withstand voltage [kV]		50(Dry)

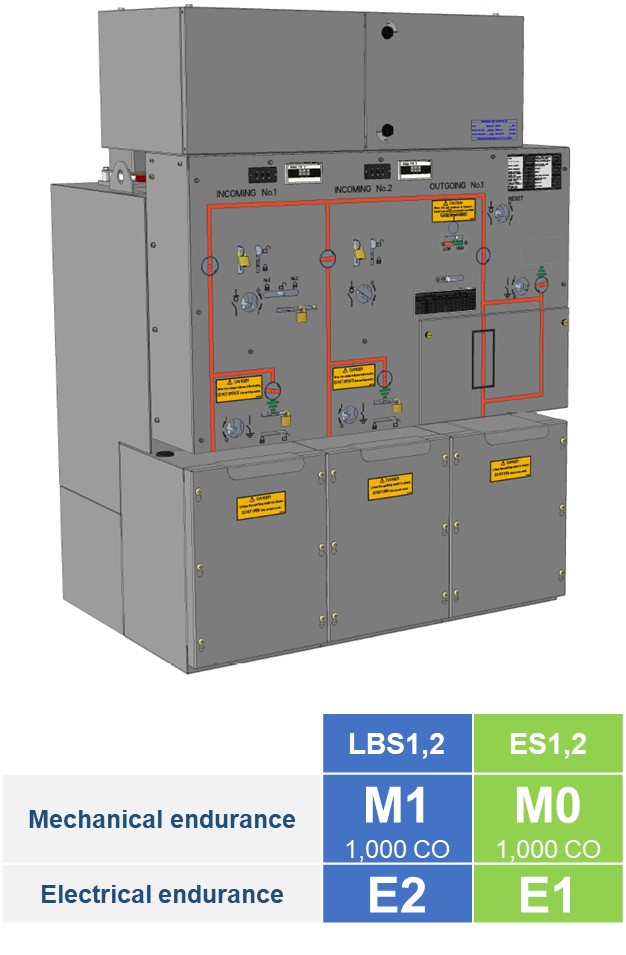

Mechanical endurance [operations]	LBS1,2,3	1,000 (M1)
	ES1,2	1,000 (M0)
Electrical endurance	LBS1,2	E2
	ES1,2	E1
Rated short time withstand current [kA/1sec]	LBS1,2	16
	ES1,2
Rated short circuit making current [kApeak]	LBS1,2	40
	ES1,2
Rated SF6 gas pressure [kPa・G at 20℃]		50
Ambient temperature [℃]		-5 to +40
Total weight [kg]		680

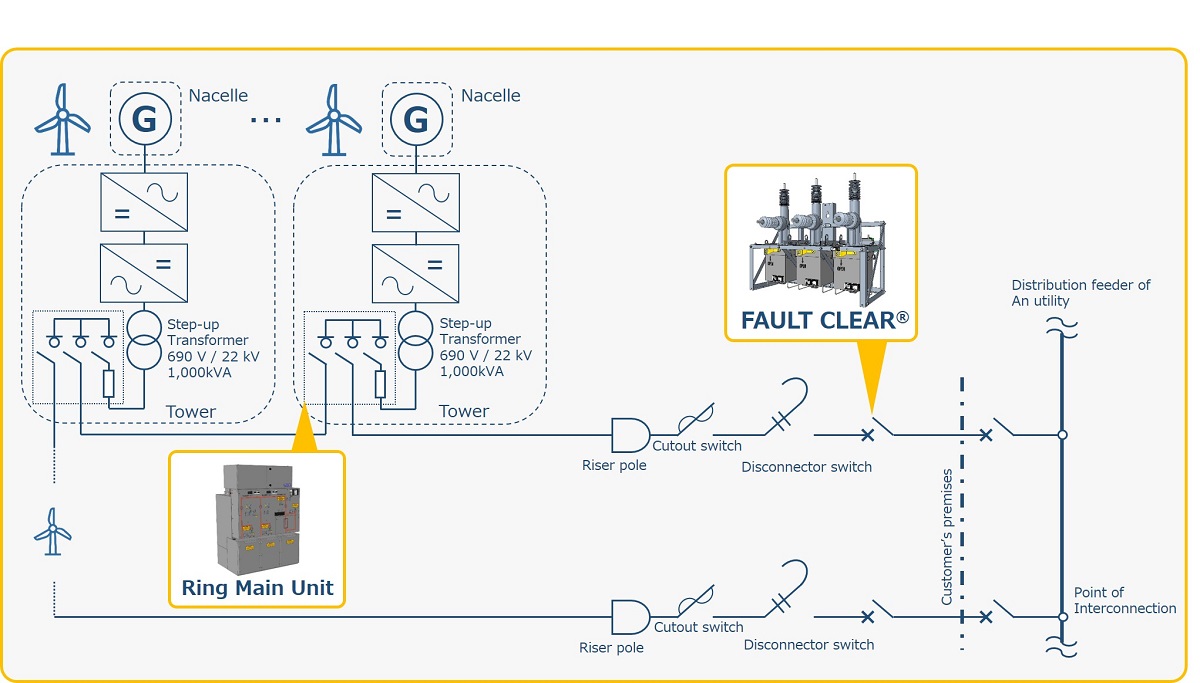

❚ RMU/FAULT CLEAR^® for a wind farm

❚ Compact Unit Substation (CUS)

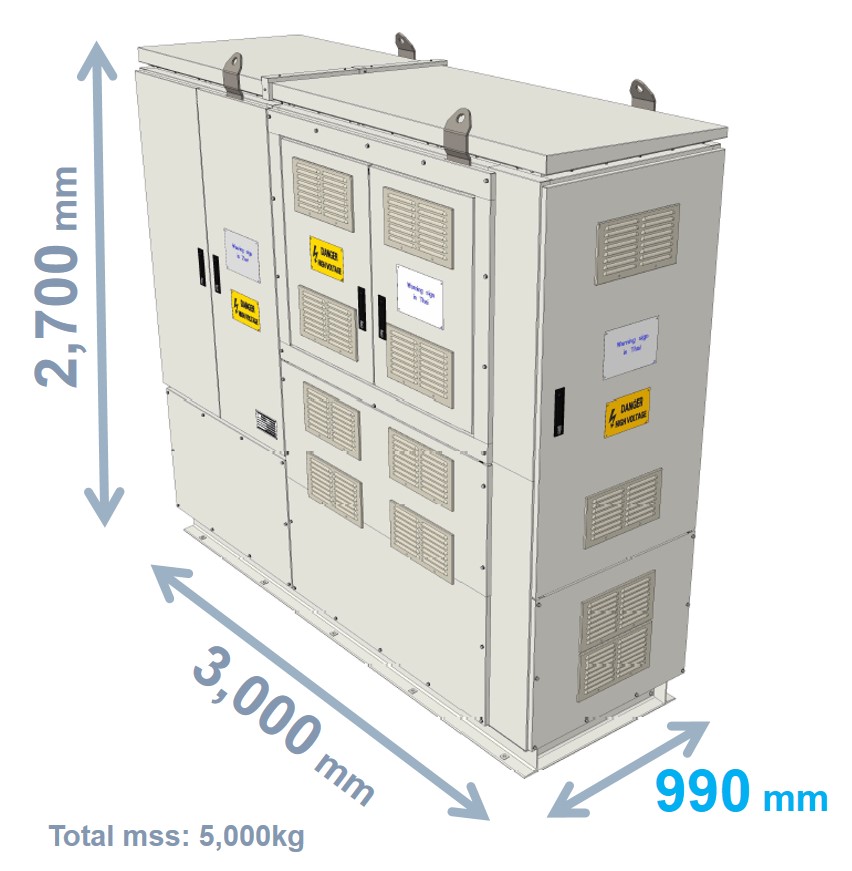

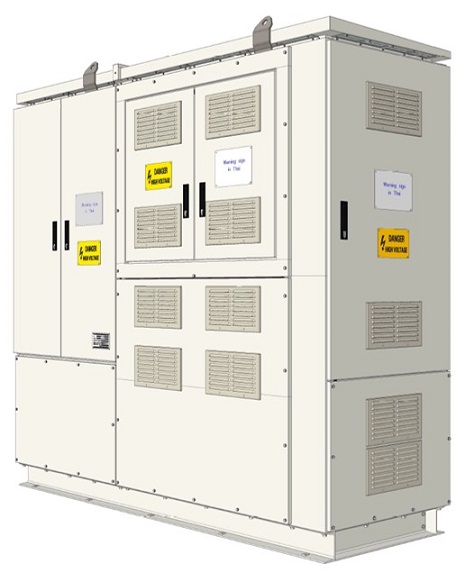

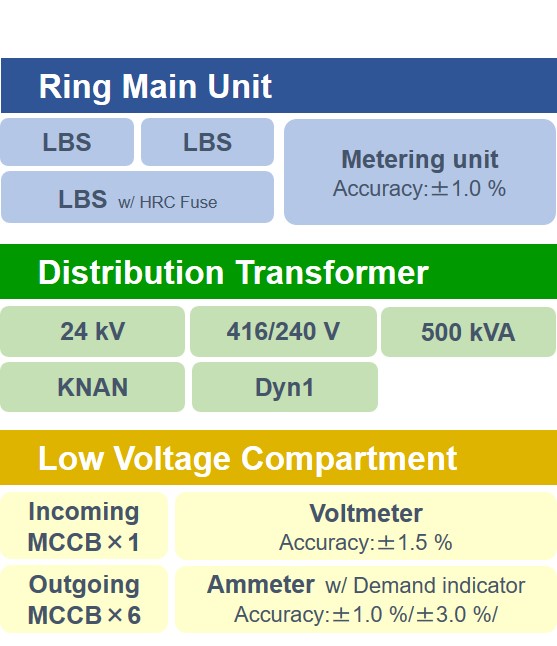

CUS consists of RMU, distribution transformer, and low-voltage equipment. This is an all in one package as minimal distribution system.

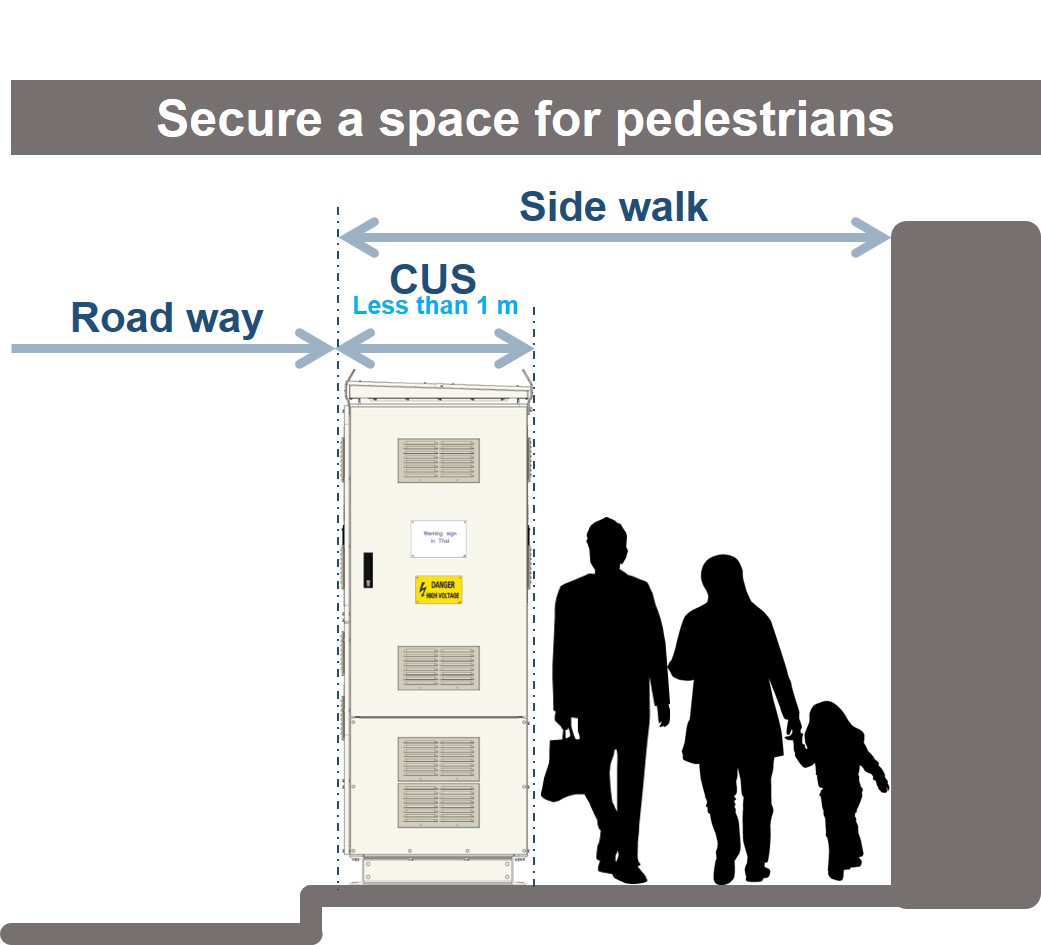

❚ The Slim Size Advantage

❚ Internal Arc Safety Design

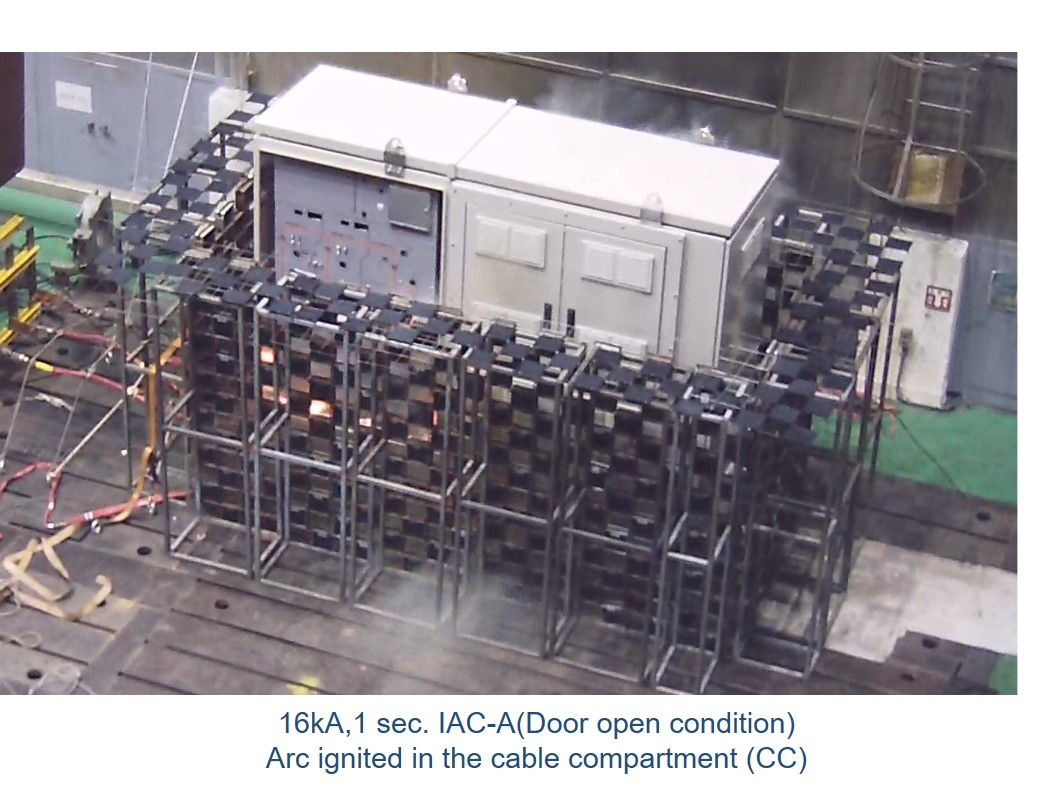

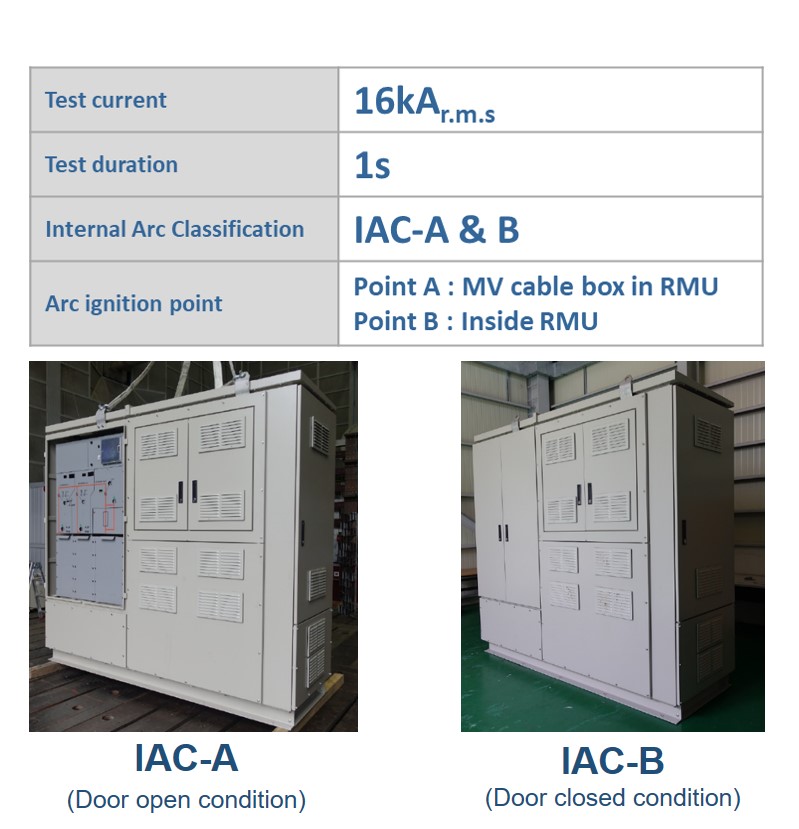

Our CUS is certified by a STL laboratory. (IEC62271-202 6.102) The test is carried out 4 patterns [IAC-A & B with 2 ignition points each]

❚ Single Line Diagram

Single line diagram of CUS ( RMU with plug in voltage transformer)
