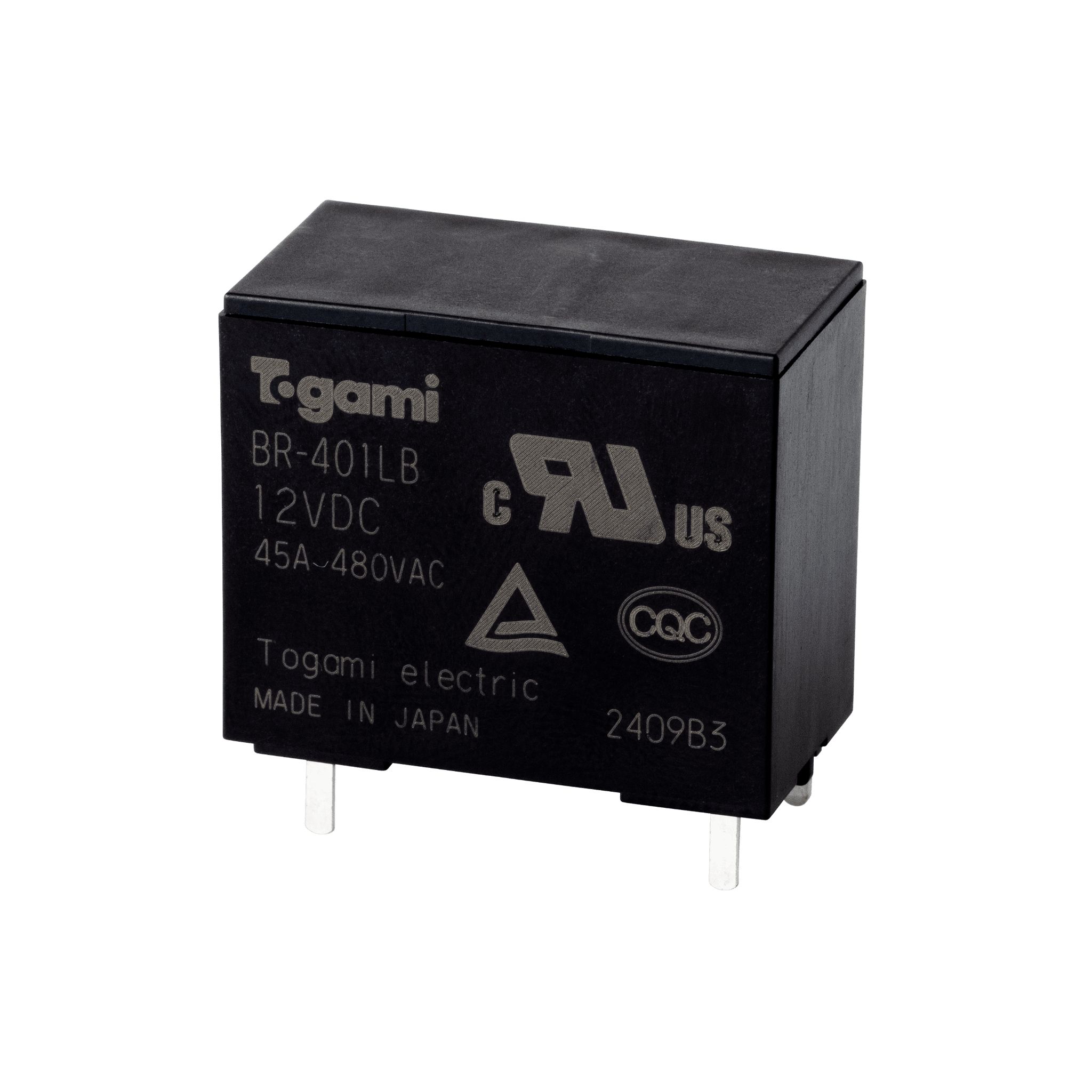

BR-401LB

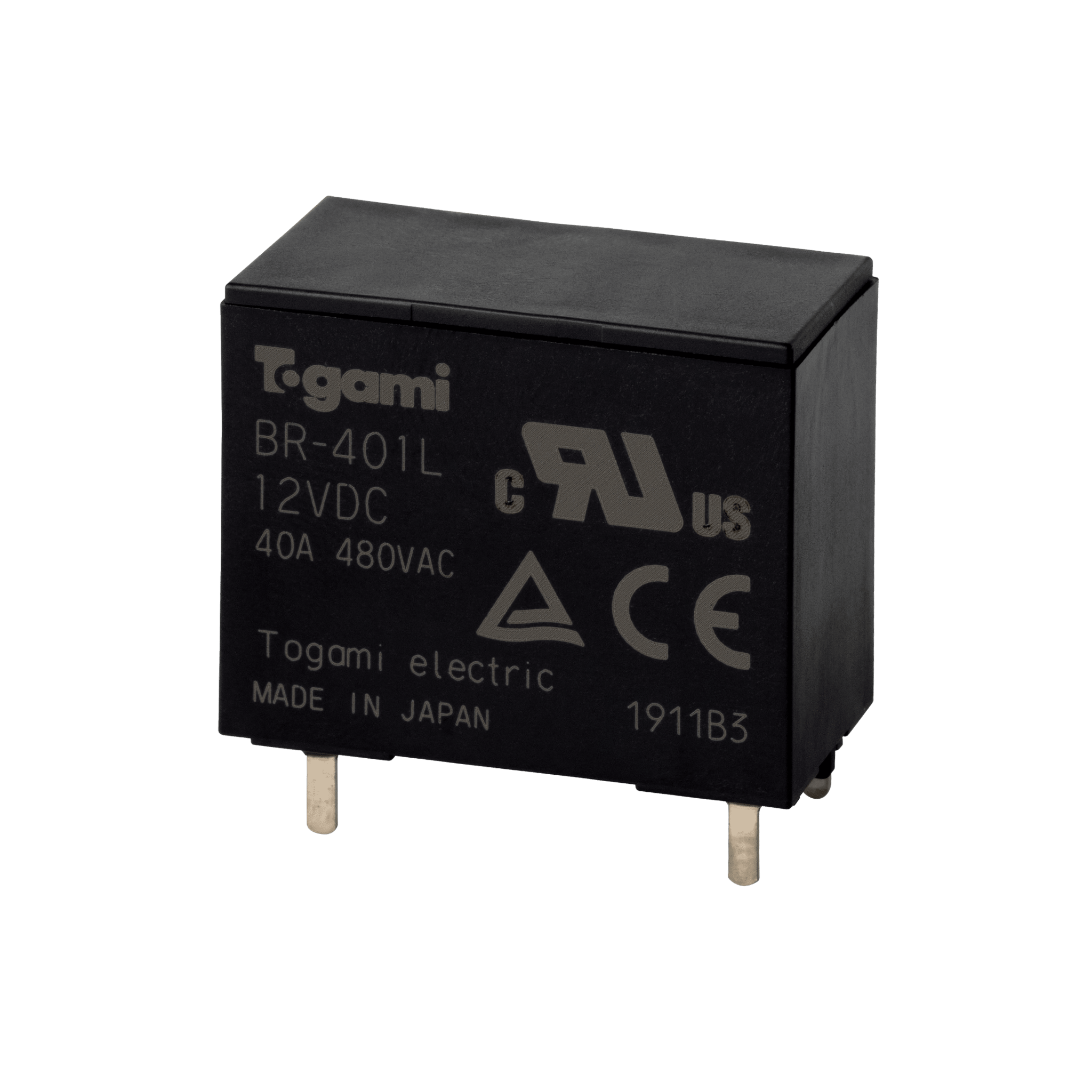

BR-401L

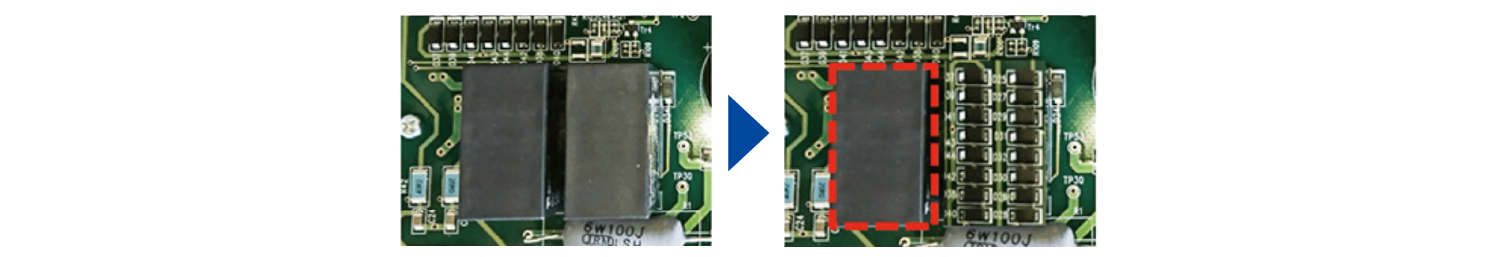

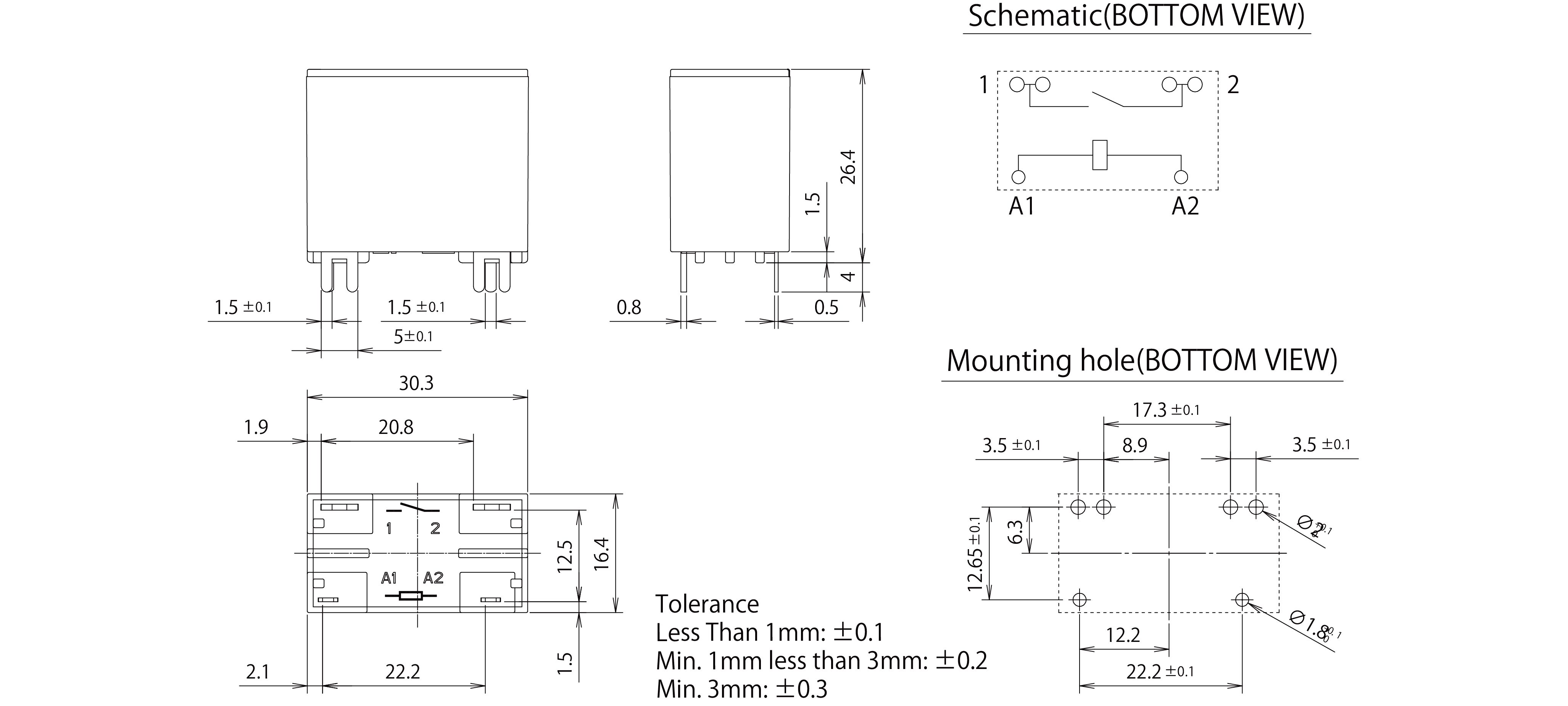

This relay is ideal for inrush current prevention in inverter power circuits. It is compact and has a high capacity.

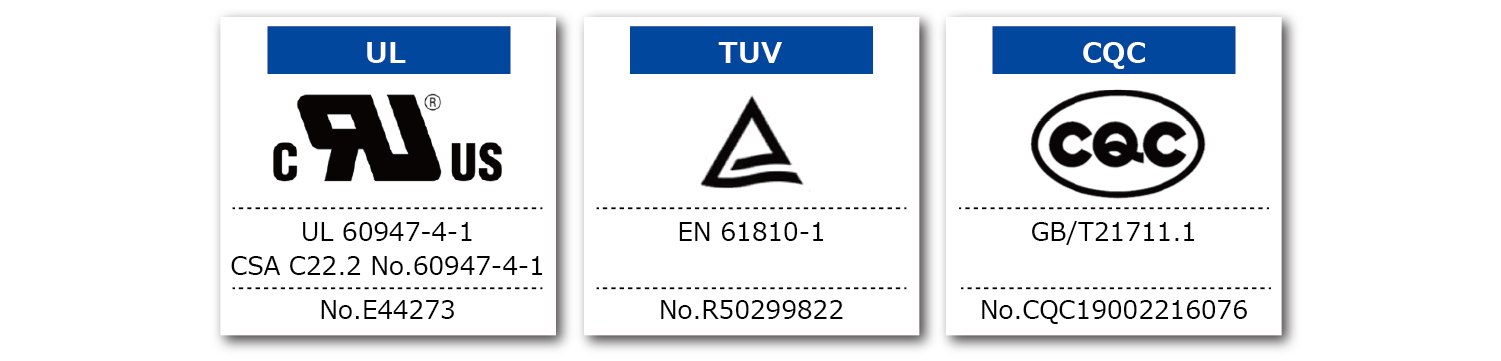

▼Contact rating for safety standard


| Model number | BR-401LB | BR-401L | BR-301L | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Contact configuration | 1a(NO) | ||||||||||||||||||
| Contact resistance(Initial) | MAX.100 mΩ(6 VDC,1 A, Voltage drop method) | ||||||||||||||||||
| Contact material | Silver alloy | ||||||||||||||||||
| Rated operating voltage | 480 VAC | ||||||||||||||||||
| Limiting continuous current | 45 A | 40 A | 30 A | ||||||||||||||||
| Contact rating (Resistive load) |
250 VAC | 440 VAC | 480 VAC | 250 VAC | 440 VAC | 480 VAC | 250 VAC | 440 VAC | 480 VAC | ||||||||||
| 40 A | 28 A | 25 A | 40 A | 28 A | 25 A | 30 A | 21 A | 19 A | |||||||||||
| Rated breaking capacity(50 operations) | 60 A | 42 A | 37.5 A | 60 A | 42 A | 37.5 A | 45 A | 31.5 A | 28.5 A | ||||||||||
| Min. switching load | 100 mA,5 VDC | ||||||||||||||||||
| Electrical endurance | 10×103 operations(Resistive load) | ||||||||||||||||||
| Mechanical endurance | 3×106operations(No load) | ||||||||||||||||||
| Frequency of opening and closure | No load | 1,800 operations/ hour | |||||||||||||||||
| Resistive load | 120 operations/ hour | ||||||||||||||||||
| Operate voltage※1 | Max. 95% of the rated coil voltage | Max. 85% of the rated coil voltage | |||||||||||||||||
| Release voltage | Min. 10% of the rated coil voltage | ||||||||||||||||||
| Limiting voltage | 110% of the rated coil voltage | ||||||||||||||||||
| Operation time | Max. 20 ms | ||||||||||||||||||
| Release time | Max. 10 ms | ||||||||||||||||||
| Insulation resistance(Initial) | Min. 1,000 MΩ | ||||||||||||||||||
| Dielectric strength(Initial) | Between open contacts:1,700 VAC for 1 minute | ||||||||||||||||||
| Between coil and contact: 4,500 VAC for 1 minute | |||||||||||||||||||
| Rated impulse withstand voltage (Initial) |
Between open contacts:2,500 V(1.2×50 μs) | ||||||||||||||||||
| Between coil and contact:6,000 V(1.2×50 μs) | |||||||||||||||||||
| Protection | RT Ⅱ Flux proof relay | ||||||||||||||||||
| Insulation characteristics (IEC 61810-1) |
Insulation distance:Clearance/ Creepage distance 5.5 mm/ 8.0 mm Type of disconnection:Micro disconnection Over voltage category:Ⅲ Materials group:Ⅲa Rated insulation voltage:500 V Rated insulation voltage:250 V Between coil and contact:Basic insulation Between coil and contact:Reinforced insulation Pollution degree:2 Pollution degree:3 |
||||||||||||||||||
| Shock resistance | Malfunction | Peak acceleration: 100 m/s2 Duration time: 11 ms | |||||||||||||||||
| Destruction | Peak acceleration: 1,000 m/s2 Duration time: 6 ms | ||||||||||||||||||
| Vibration resistance | Malfunction | Frequency range: 10 to 55 to 10Hz Double amplitude: 1.5 mm |
|||||||||||||||||
| Destruction | |||||||||||||||||||
| Environmental conditions | Avoid icing and condensation. If left or used for a long period of time in sulfur gas or organic gas atmosphere, the contact surface may corrode and contact resistance may increase. Do not use products dontaining silicon near relays. Silicon oxide may form on the contact surface and cause contact failure. |
||||||||||||||||||
| Ambient temperature | -40 ℃ to 85 ℃ | -40 ℃ to 65 ℃ | |||||||||||||||||
| Storage temperature | -40 ℃ to 80 ℃ | ||||||||||||||||||

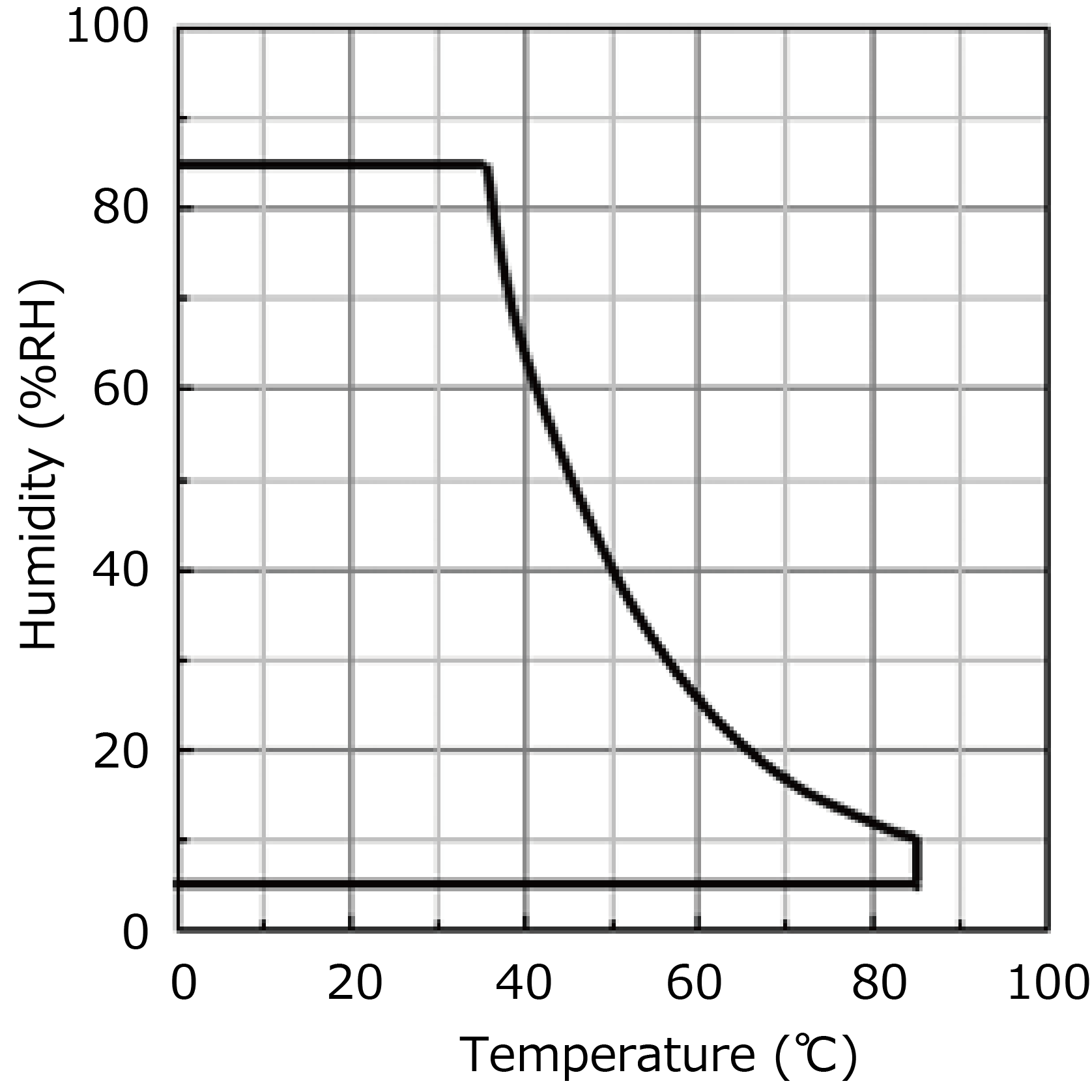

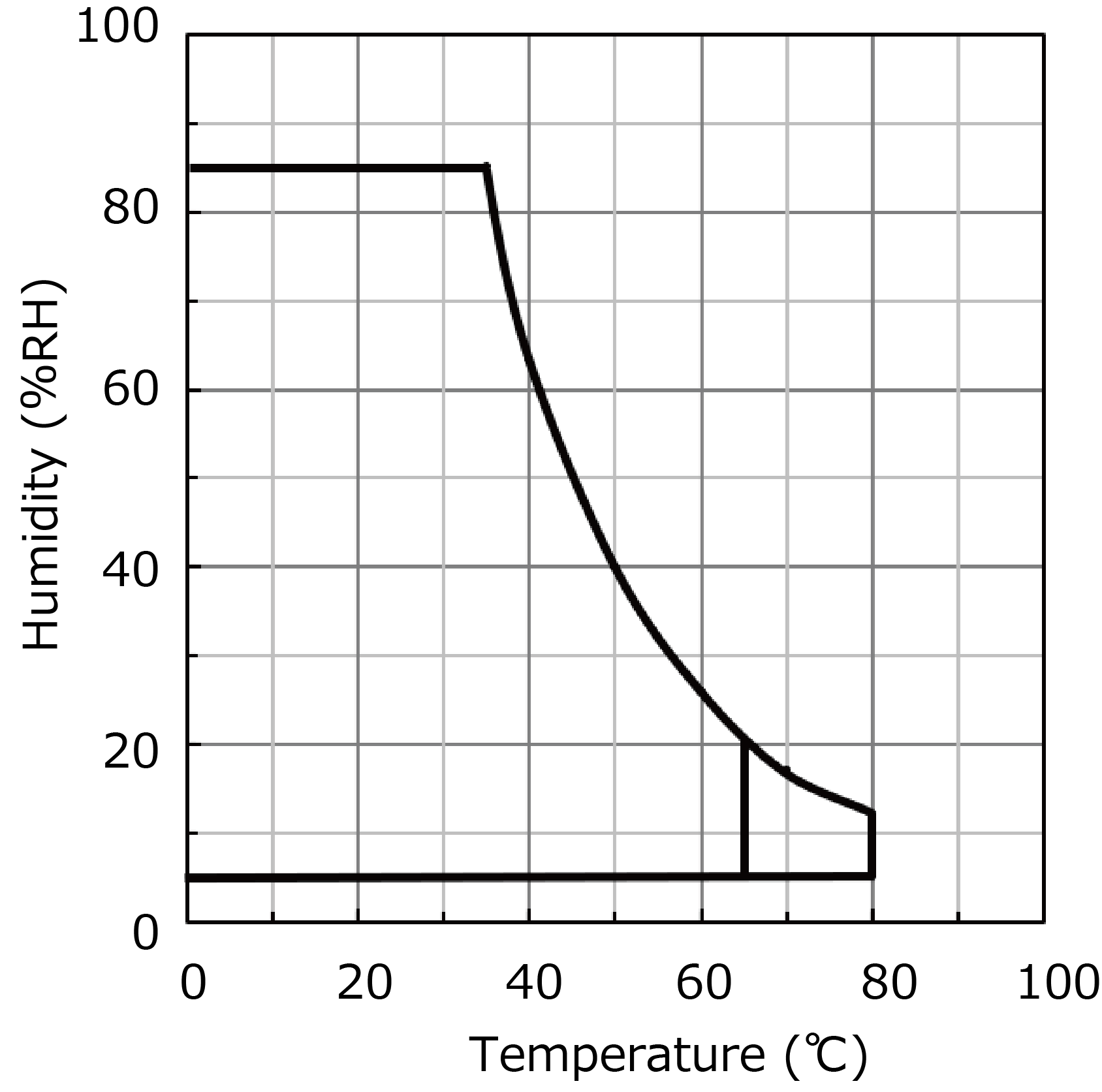

| Ambient temperature and ambient humidity range Storage temperature and storage humidity range |
![]() |
![]() |
|||||||||||||||||
| Altitude | Max. 2,000 m | ||||||||||||||||||
| Solder heat resistance | Flow soldering Solder temperature 260±3 ℃ Solder dipping 5±0.5 s | ||||||||||||||||||
| Hand soldering Soldering iron temperature Max.350 ℃ Solder dipping Max. 3 s | |||||||||||||||||||
| Mounting direction | No restriction | ||||||||||||||||||
| Weight | Approx. 26 g | ||||||||||||||||||
| Packing | Inner carton | 100 pcs. | |||||||||||||||||
| Shipping unit | 300 or 500 pcs. | ||||||||||||||||||
| Rated coil voltage | 6 VDC | 12 VDC | 24 VDC |
|---|---|---|---|
| Rated current | 150 mA | 75 mA | 46 mA |
| Rated power consumption | 0.9 W | 0.9 W | 1.1 W |
| Coil resistance ※ ±10% | 40 Ω | 160 Ω | 525 Ω |
| Rating | Electrical life | Operating temperature | |
|---|---|---|---|
| UL | 40 A,277 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
10×103operations | at 85 ℃ |
| TUV | 40 A,250 VAC(Resistive load) 28 A,440 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
||
| CQC | 40 A,250 VAC(Resistive load) 28 A,440 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
| Rating | Electrical life | Operating temperature | |
|---|---|---|---|
| UL | 40 A,277 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
10×103operations | at 65 ℃ |
| TUV | 40 A,250 VAC(Resistive load) 28 A,440 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
||
| CQC | 40 A,250 VAC(Resistive load) 28 A,440 VAC(Resistive load) 25 A,480 VAC(Resistive load) |
| Rating | Electrical life | Operating temperature | |
|---|---|---|---|
| UL | 30 A,277 VAC(Resistive load) 19 A,480 VAC(Resistive load) |
10×103operations | at 65 ℃ |
| TUV | 30 A,250 VAC(Resistive load) 21 A,440 VAC(Resistive load) 19 A,480 VAC(Resistive load) |
||
| CQC | 30 A,250 VAC(Resistive load) 21 A,440 VAC(Resistive load) 19 A,480 VAC(Resistive load) |
