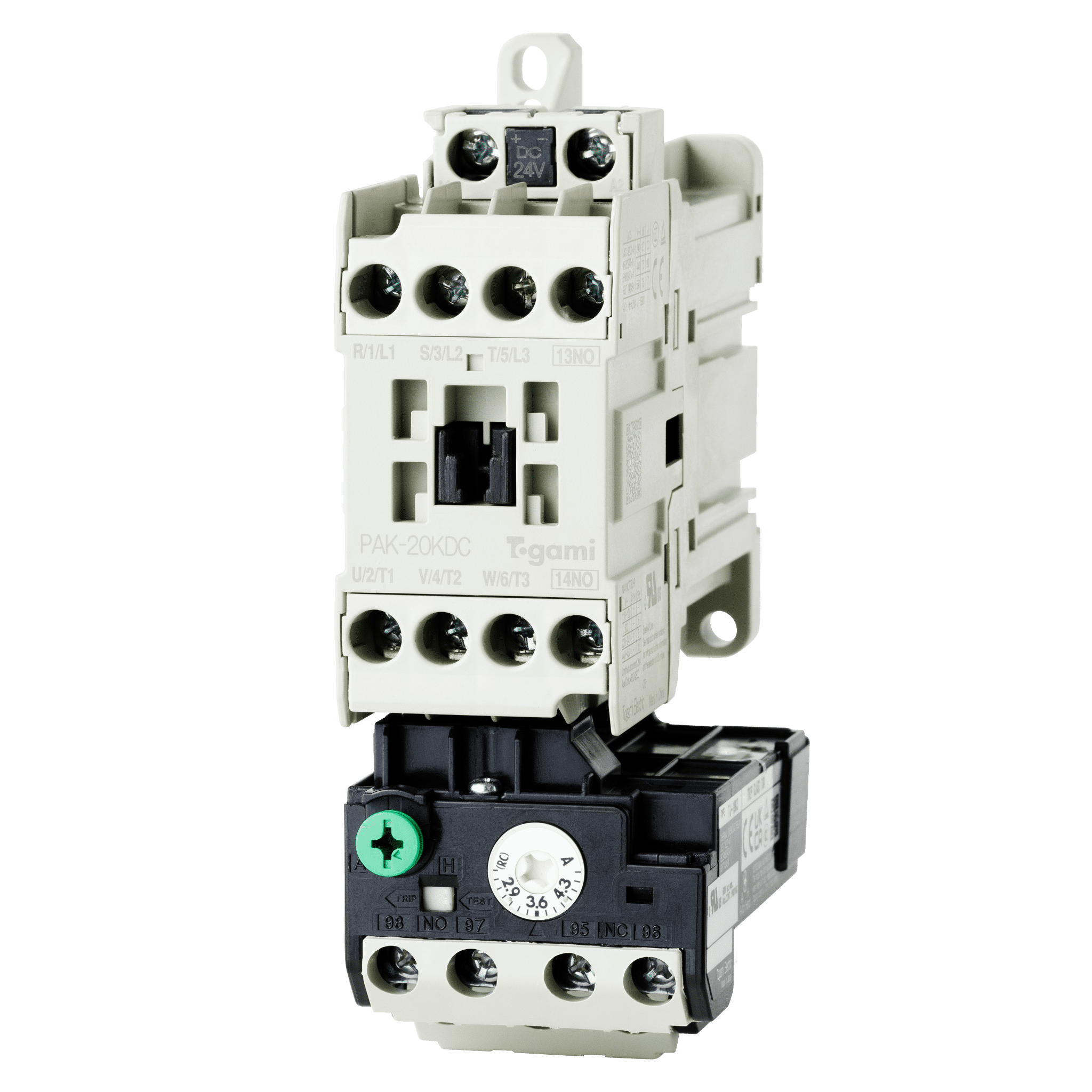

PAK-20KDC

PAK-20KDC

Magnetic Contactor / Starter
DC operational

Ideal for safety circuits in various applications and for on / off control of motors. Can be controlled directly using a programmable controller (PLC).

　　

Features

  • PLC Direct Drive

    Can be driven directly using a 24 VDC 0.1 A programmable controller (PLC) output.

  • Allows compact design

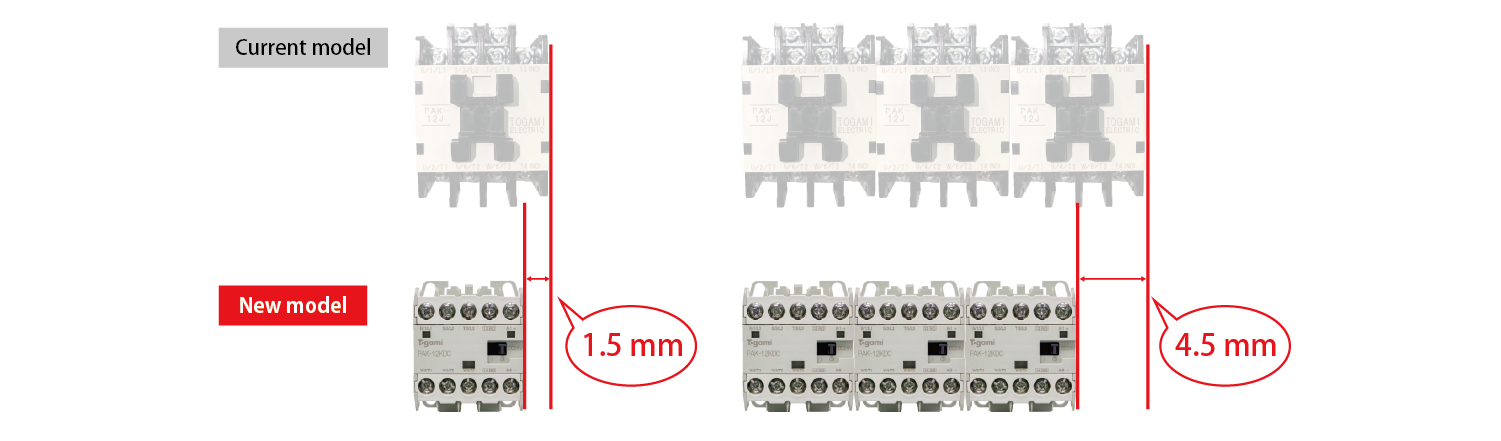

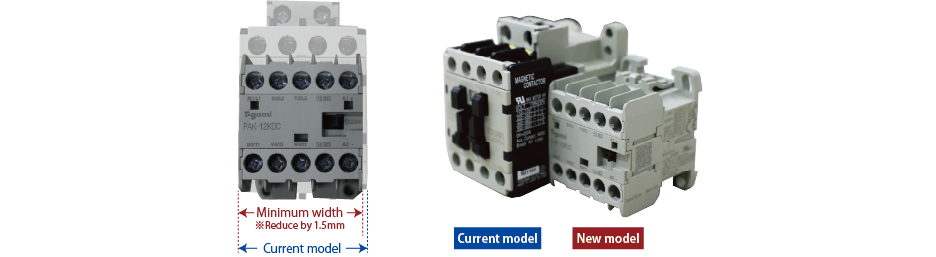

    The reduced width makes it possible to design more compact control boxes.

    ■When using PAK-12KDC yokohaba

  • Stable operation in wide temperature range

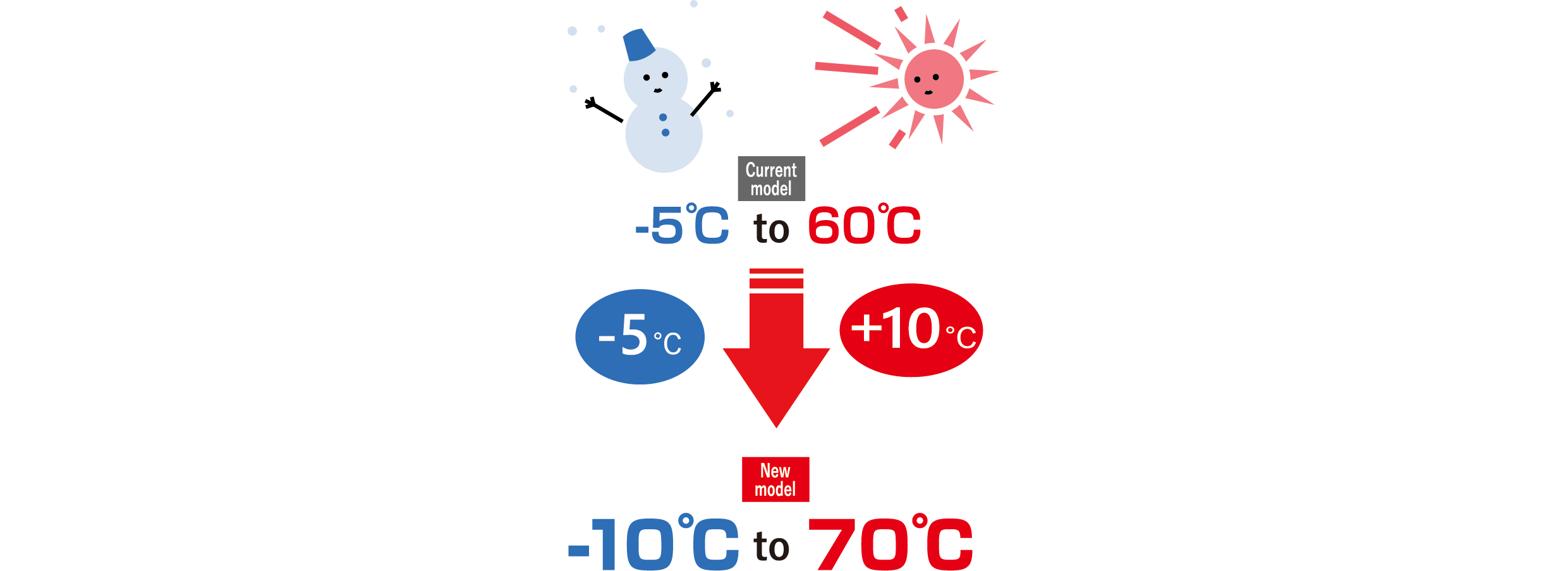

    Extend the ambient temperature for use from -10 ℃ to 70 ℃. Optimum contactor for cold or hot climate. wide range

  • Allows perpendicular screwdriver access

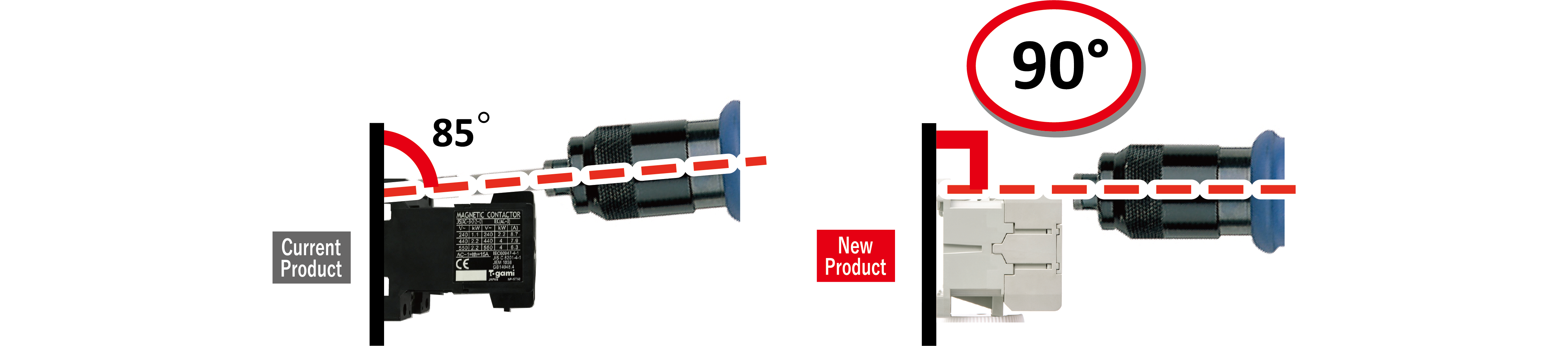

    The new product can be mounted without having to tilt the screwdriver, improving work efficiency. 90° access

  • All models equipped with built-in coil surge absorption function (varistor)

    While previous (AC) models used externally mounted coil surge units, the new (DC) models house this function within the main unit, reducing installation requirements.

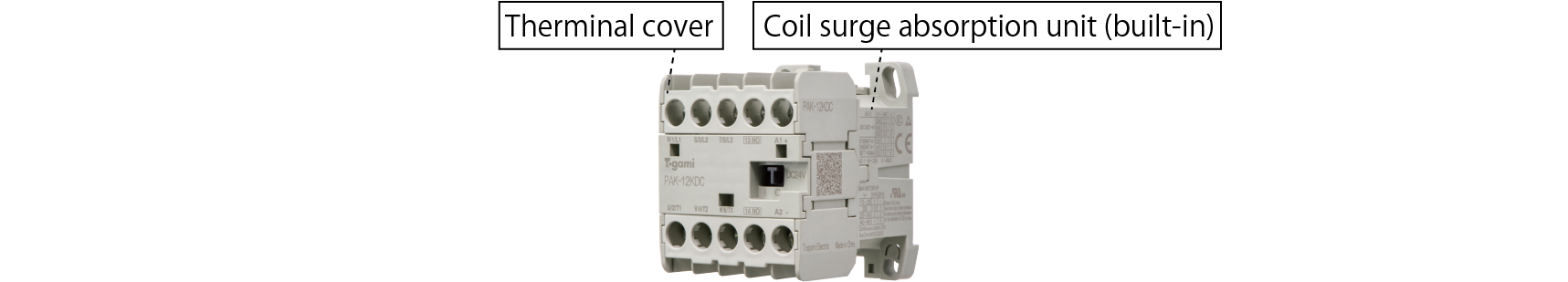

  • Terminal covers provided as standard

    Terminal covers are provided as standard, ensuring finger protection with dust protection rating (IP2X).

    cover
　　

Specifications

Model number/Ratings AC-3 3-phase squirrel-cage AC-1 Resister, Heater
Rated Operational Power Rated Operational Current
240 V 440 V 550 V 240 V 440 V 550 V 240 V 440 V
PAK-12KDC 2.2 kW 5.5 kW 5.5 kW 12 A 12 A 9 A 20 A
(16 A)		 20 A
(16 A)
PAK-20KDC 3.7 kW 7.5 kW 7.5 kW 20 A
(17 A)		 20 A
(17 A)		 17 A 20 A
(17 A)		 20 A
(17 A)
PAK-21KDC 3.7 kW 7.5 kW 7.5 kW 20 A
(17 A)		 20 A
(17 A)		 17 A 20 A
(17 A)		 20 A
(17 A)
PAK-32KDC 7.5 kW 15 kW 11 kW 32 A
(30 A)		 32 A
(30 A)		 20 A 32 A
(30 A)		 32 A
(30 A)

※ Rated current value in parentheses shows the value when the contactor used in 55 ℃ or more.

Dimensions


■Magnetic contactor

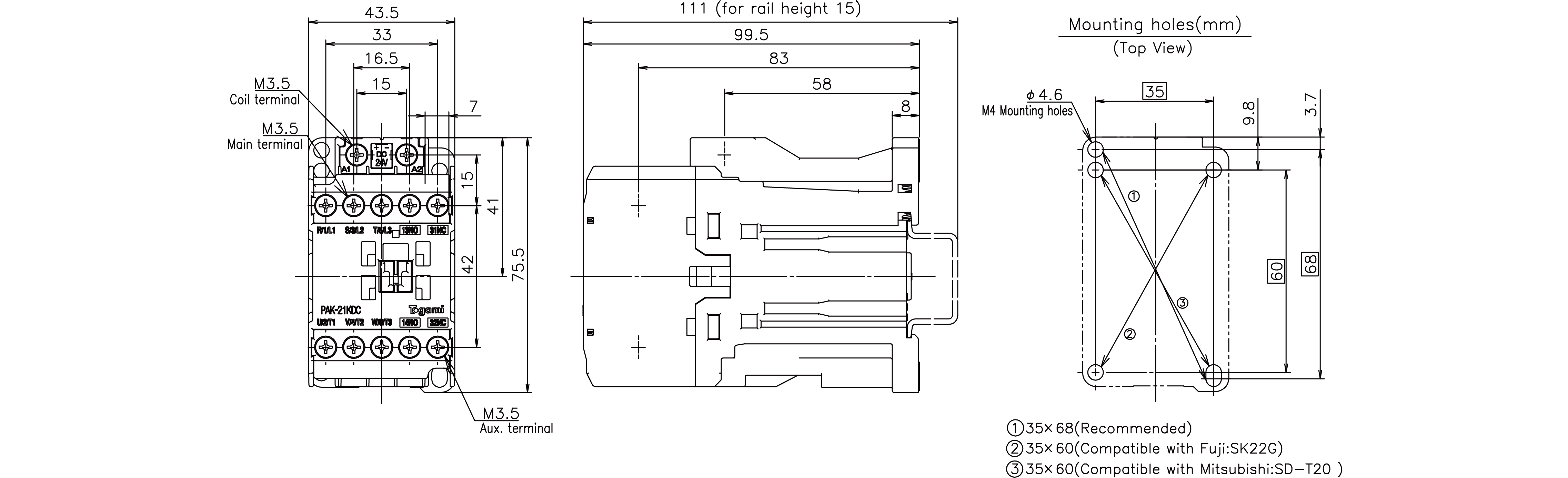

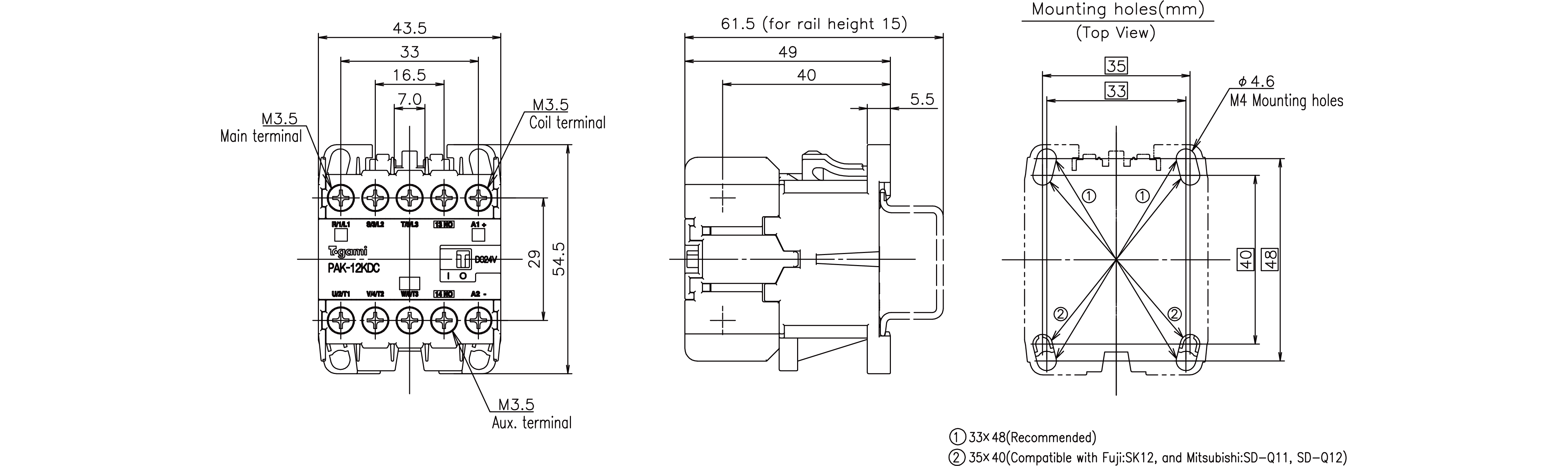

　 PAK-12KDC
PAK-12KDC

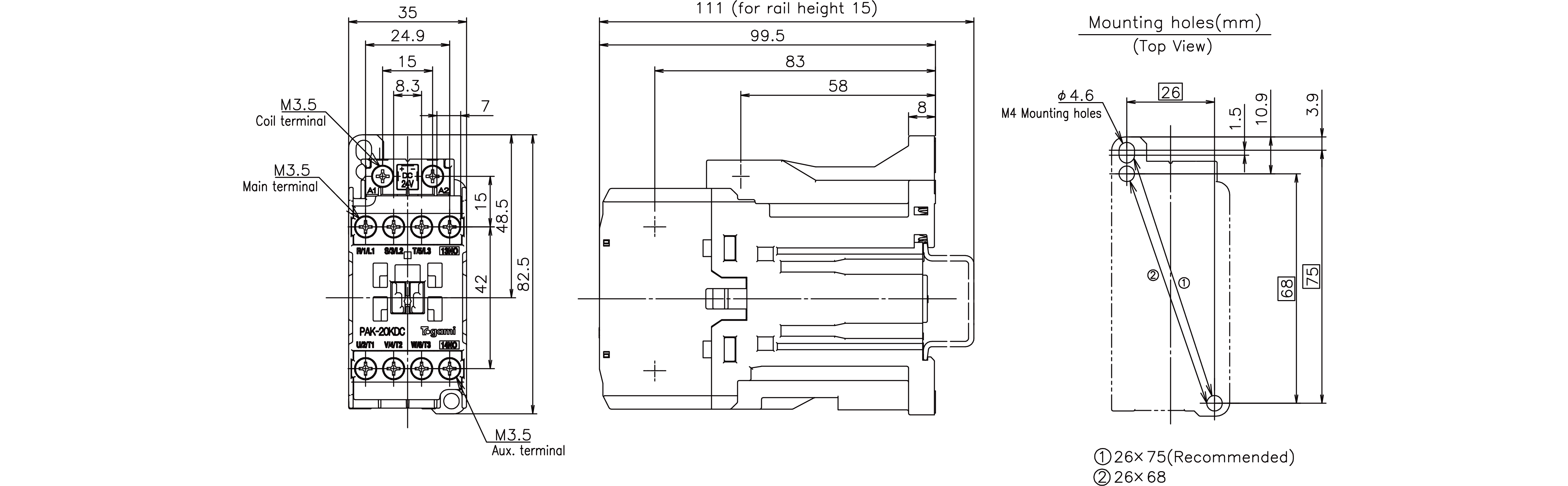

　 PAK-20KDC
PAK-20KDC
　 PAK-21KDC
PAK-21KDC

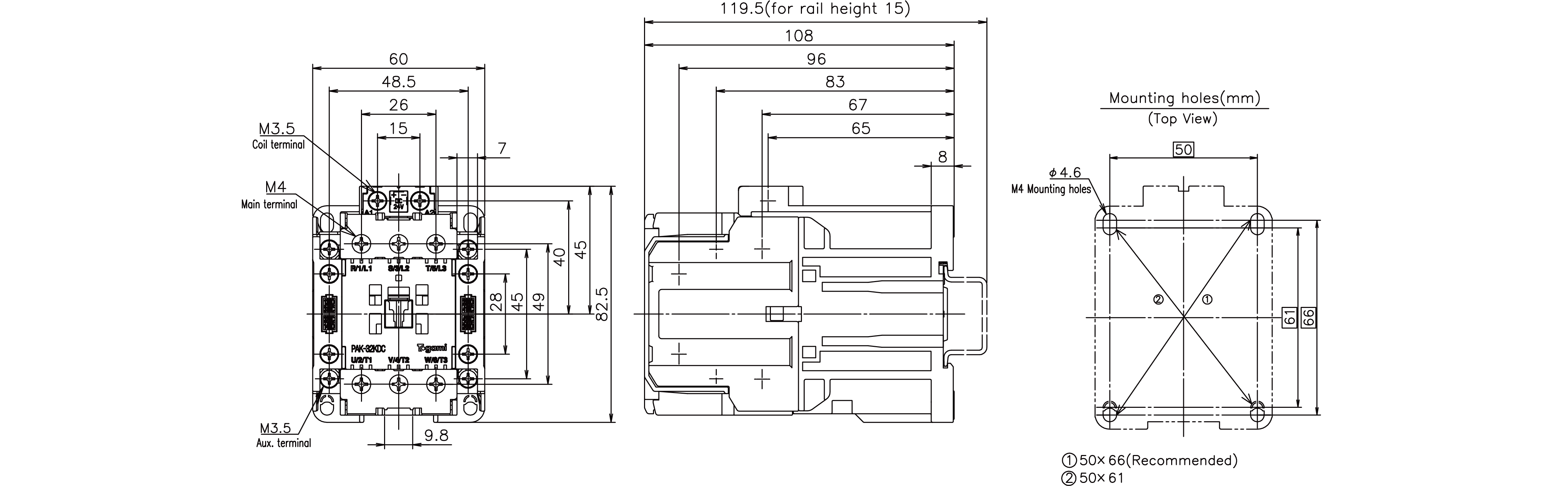

　 PAK-32KDC
PAK-32KDC


■Magnetic starter

　 PAK-12KDCT
PAK-12KDCT

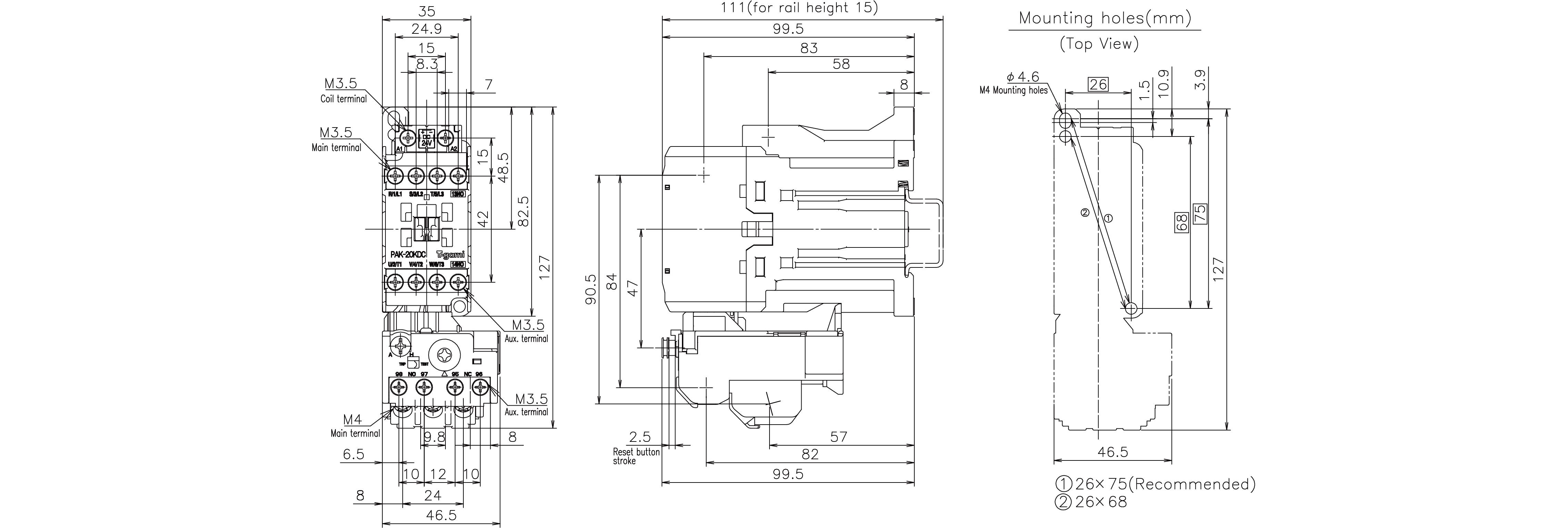

　 PAK-20KDCT
PAK-20KDCT

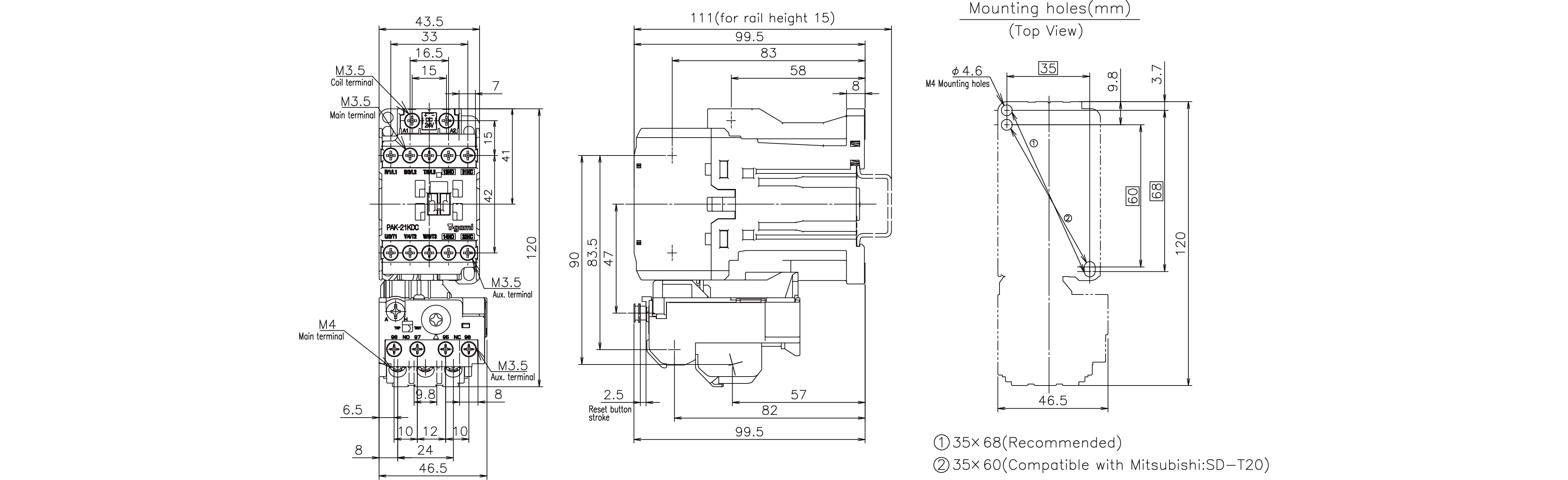

　 PAK-21KDCT
PAK-21KDCT

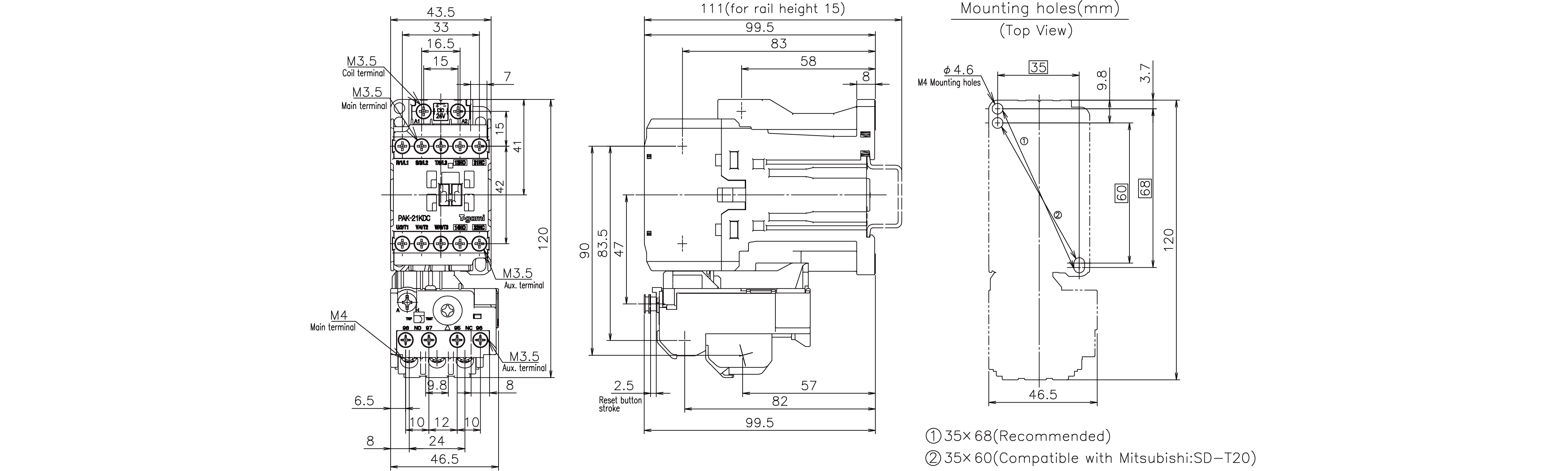

　 PAK-32KDCT
PAK-32KDCT

FAQ

01
What optional accessories are available?
Both 2-contact and 4-contact type head-on auxiliary contact units are available (compatible with PAK-20KDC, PAK-21KDC, and PAK-32KDC).
The surge absorption unit can also be replaced with a diode type (compatible with PAK-12KDC).
02
What standard certifications does the product have?
All models feature cULus, CCC, and TÜV international standard certification. They also meet JIS and IEC standards.
* cULus: Safety standard certification for Canada and the US from UL
* CCC: Mandatory certification under China GB standards
* TÜV: German Technical Inspection Association
03
Can the products be mounted on rails?
All models are readily mounted on the 35 mm wide rails specified in DIN, IEC, and JIS C 2812 standards.
