PRODUCTS

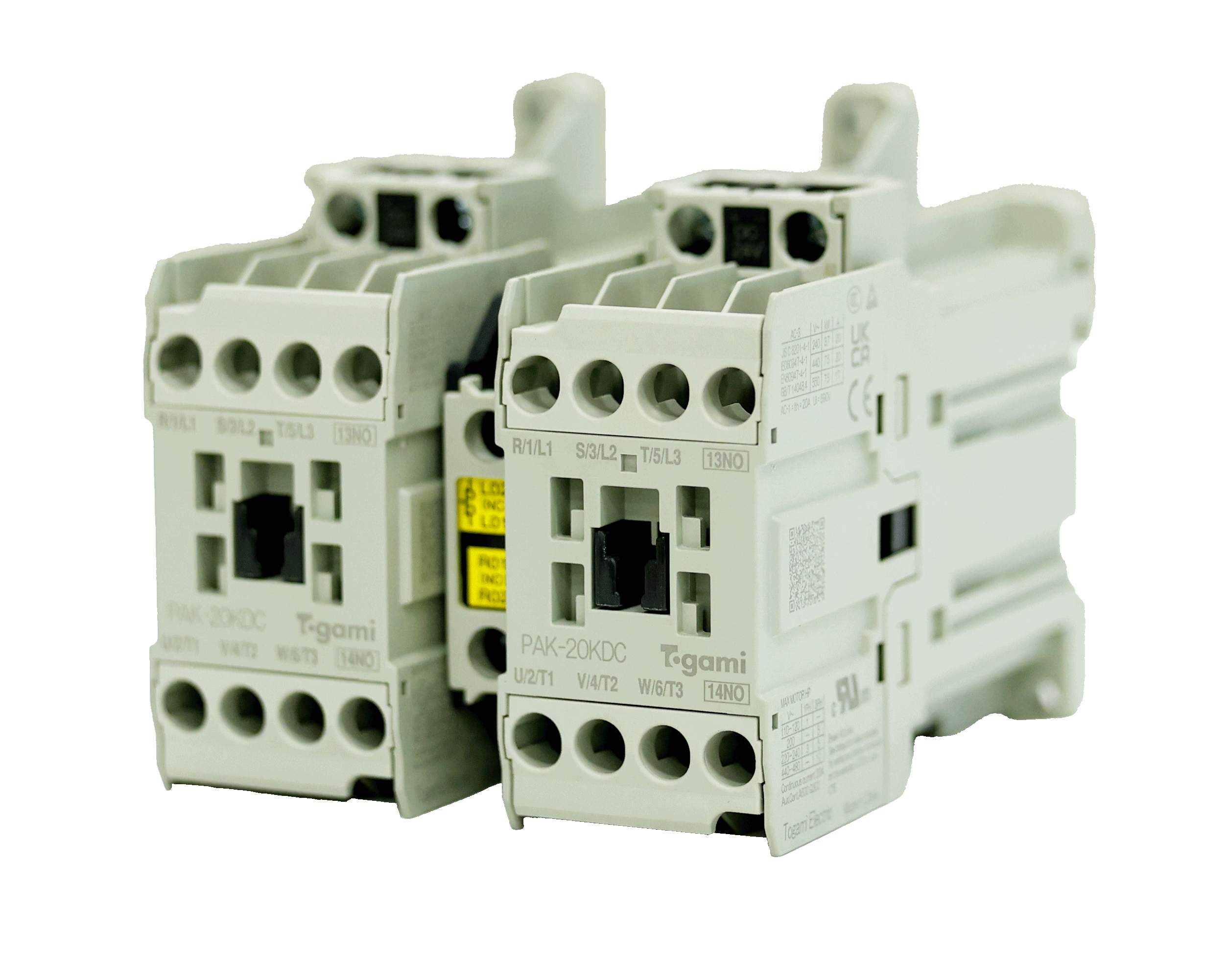

Reversing Magnetic Contactor / Starter
DC OperationalIdeal for circuits requiring forward / reverse operations of AC motors and switching between normal and emergency operations.
Features
PLC Direct Drive
Can be directly driven using a 24 VDC 0.1 A programmable controller (PLC) output.Safety-First Design
Incorporates a highly reliable mechanical interlock and dedicated electrical interlock contacts (1NC × 2).Space-Saving Design
Compact design without dedicated PCBWider operating temperature range
Supports ambient operating temperatures from −10 °C to 70 °C, allowing use in both cold and warm regions (wider range compared to −5 °C to 60 °C for previous models).
Allows perpendicular screwdriver access
The new product can be mounted without having to tilt the screwdriver, improving work efficiency.
All models equipped with built-in coil surge absorption function (varistor)
While previous (AC) models used externally mounted coil surge units, the new (DC) models house this function within the main unit, reducing installation requirements.Terminal covers provided as standard
Terminal covers are provided as standard, ensuring finger protection with dust protection rating (IP2X).
Specifications
Model number/Rating AC-3 3-phase squirrel-cage induction motor AC-1 Resister, Heater Rated Operational Power Rated Operational Current 240 V 440 V 550 V 240 V 440 V 550 V 240 V 440 V 550 V RSK-20KDC 3.7 kW 7.5 kW 7.5 kW 20 A 20 A 17 A 20 A 20 A － RSK-21KDC 3.7 kW 7.5 kW 7.5 kW 20 A 20 A 17 A 20 A 20 A － RSK-32KDC 7.5 kW 15 kW 11 kW 32 A 32 A 20 A 32 A 32 A － Dimensions

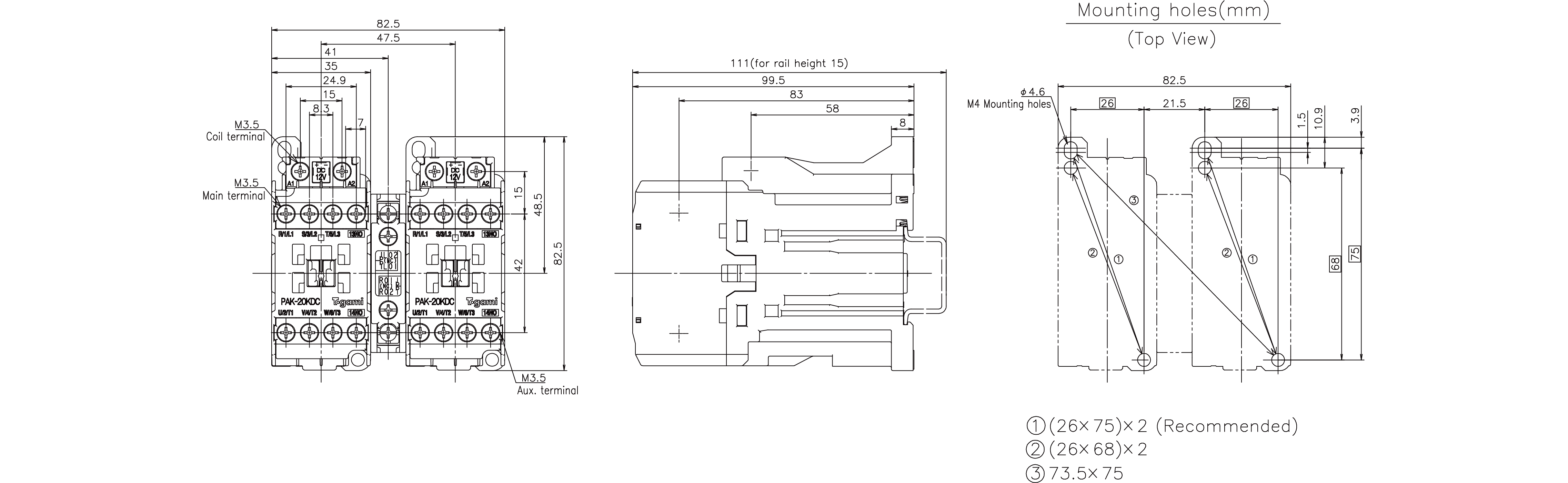

■Magnetic contactorRSK-20KDC

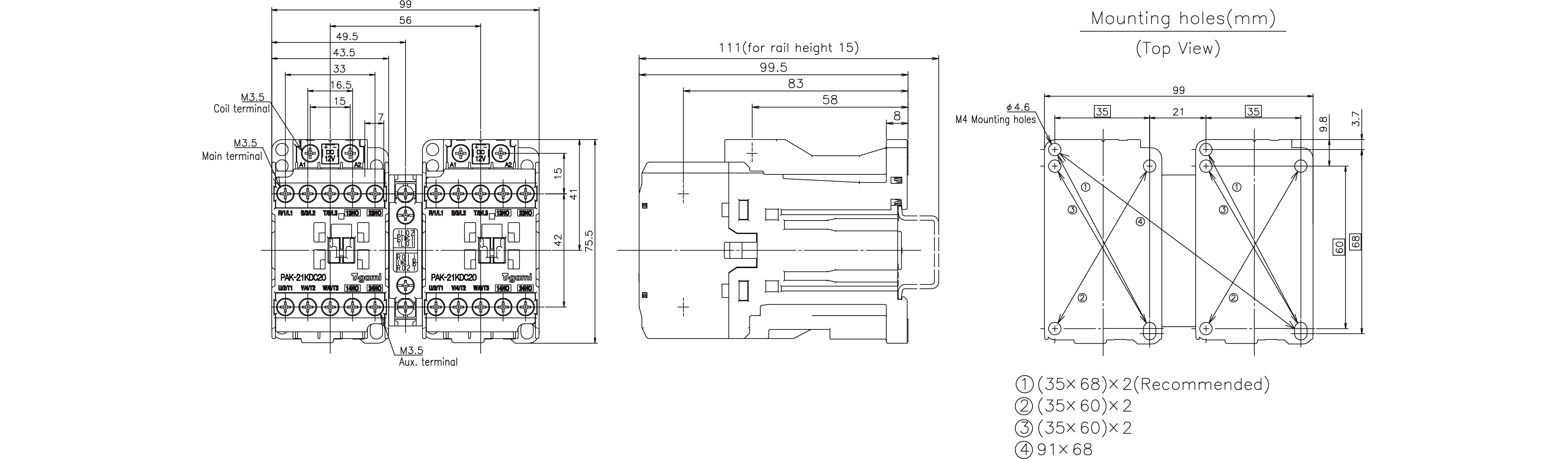

RSK-21KDC

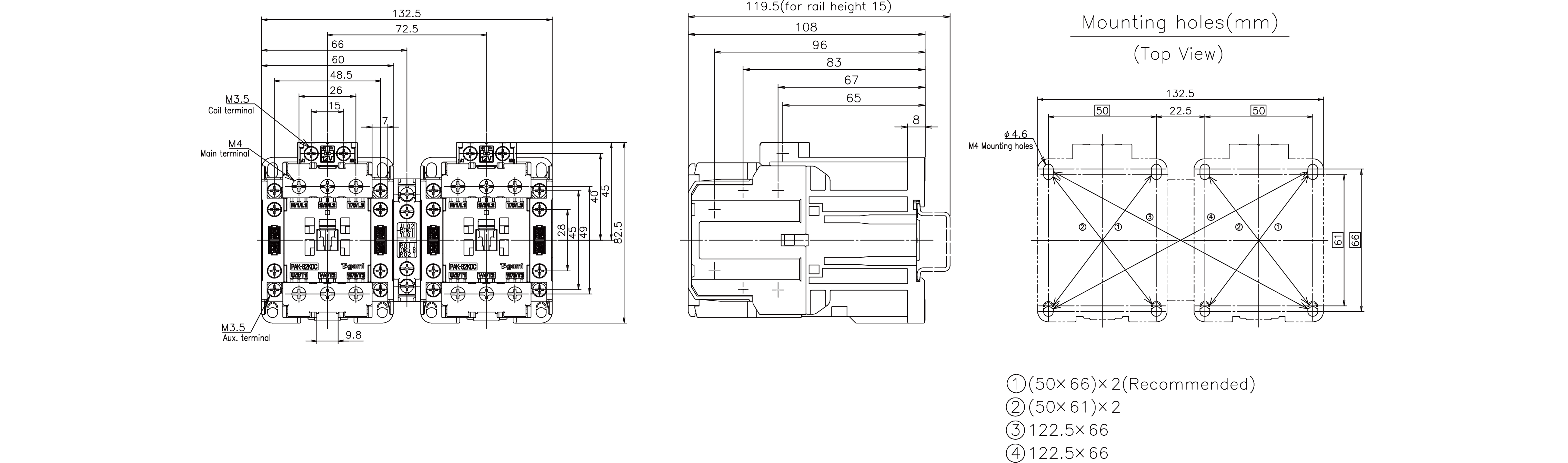

RSK-32KDC

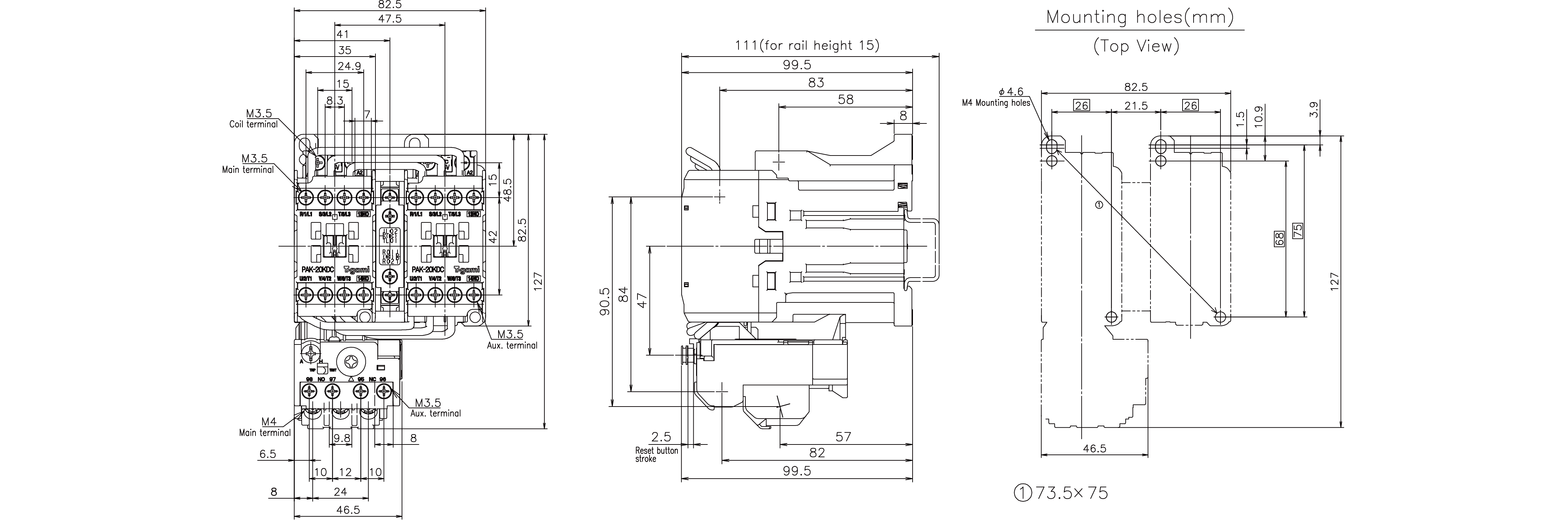

■Magnetic starterRSK-20KDCT

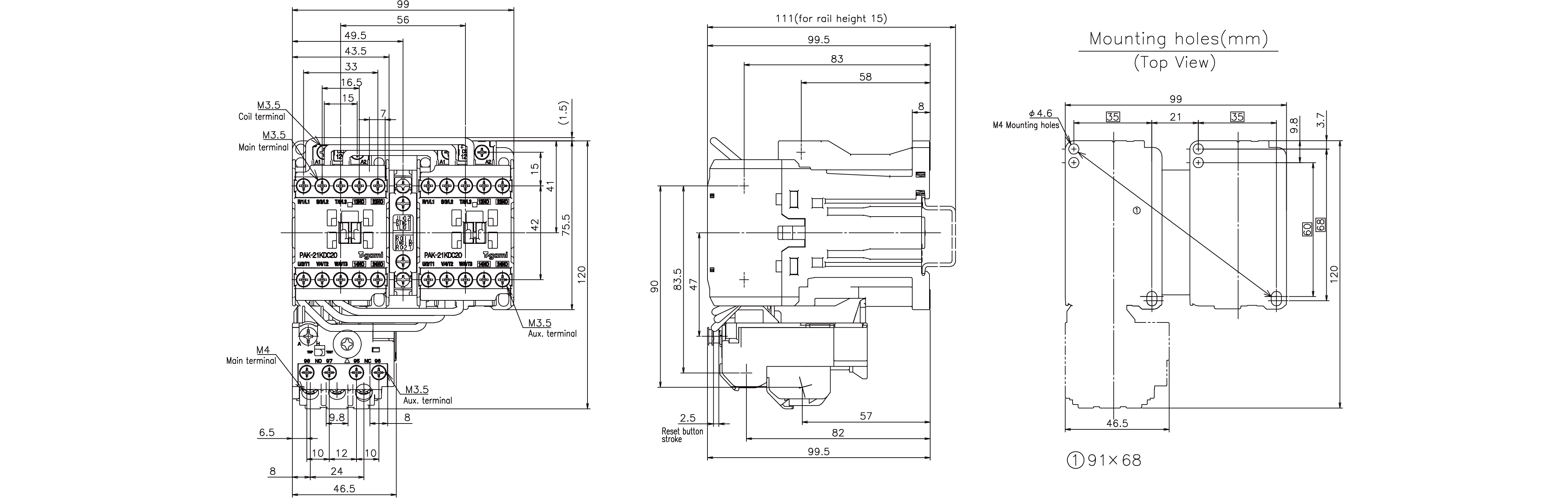

RSK-21KDCT

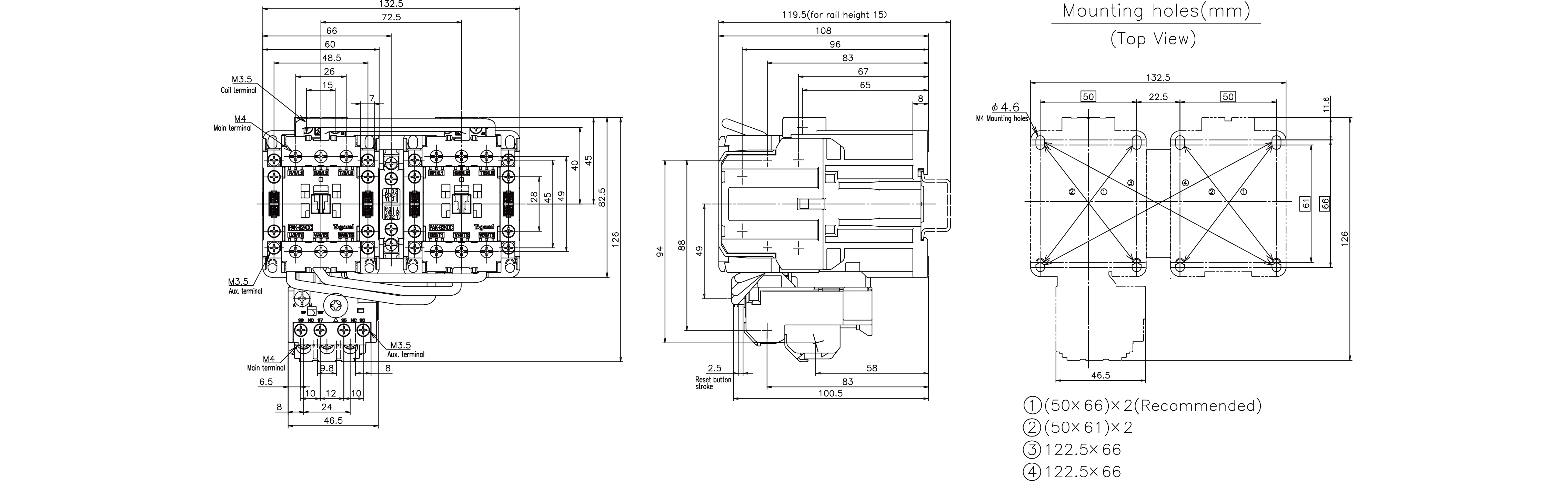

RSK-32KDCT
FAQ
- 01
- What optional accessories are available?
The following optional accessories are available:
■Auxiliary contact units
Both 2-contact and 4-contact type head-on auxiliary contact units are available (compatible with RSK-20KDC, RSK-21KDC, and RSK-32KDC).
- 02
- What standard certifications do the products feature?
All models feature cULus, CCC, and TÜV international standard certification. They also meet JIS and IEC standards.
* cULus: Safety standard certification for Canada and the US from UL
* CCC: Mandatory certification under China GB standards
* TÜV: German Technical Inspection Association- 03
- Can the products be mounted on rails?
All models are readily mounted on the 35 mm wide rails specified in DIN, IEC, and JIS C 2812 standards.Product category- TOP
