PRODUCTS
Reversing Magnetic Contactor / Starter
AC operationalIdeal for circuits requiring forward / reverse operations of AC motors and switching between normal and emergency operations.
Features
- The interlock units (ML-E type) for models RSK-12J to 35J incorporate a mechanical interlock and dedicated electrical interlock contacts (1NC × 2).
- Space-saving design without dedicated PCB (Models 11J to 50J)
- A highly reliable mechanical interlock is provided as standard by combining two PAK (non-reversing electromagnetic contactor) units (RSK-11J is an integrated type).
Specifications
Model number/rating AC-3 3-phase squirrel-cage induction motor AC-1 Resister, Heater Rated Operational Power Rated Operational Current 240 V 440 V 550 V 240 V 440 V 550 V 240 V 440 V 550 V RSK-11J 2.2 kW 3 kW 3 kW 11.1 A 7.5 A 6 A 20 A 20 A 20 A RSK-12J 2.7 kW 4 kW 4 kW 13 A 9 A 7.2 A 26 A 26 A 26 A RSK-20J 4 kW 7.5 kW 7.5 kW 20 A 17 A 13.6 A 32 A 32 A 32 A RSK-21J 4 kW 7.5 kW 7.5 kW 20 A 17 A 13.6 A 32 A 32 A 32 A RSK-26J 5.5 kW 11 kW 11 kW 26 A 25 A 20 A 50 A 50 A 50 A RSK-35J 7.5 kW 15 kW 15 kW 35 A 32 A 26 A 60 A 60 A 60 A RSK-50J 11 kW 22 kW 26 kW 50 A 48 A 45 A 65 A 65 A 65 A RSK-50H 11 kW 22 kW 26 kW 50 A 46 A 45 A 75 A 75 A 75 A RSK-65H 15 kW 30 kW 37 kW 65 A 62 A 60 A 90 A 90 A 90 A RSK-80H 19 kW 37 kW 45 kW 80 A 75 A 72 A 110 A 110 A 110 A RSK-95H 22 kW 45 kW 50 kW 95 A 90 A 80 A 110 A 110 A 110 A RSK-100H 25 kW 45 kW 55 kW 100 A 90 A 90 A 150 A 150 A 150 A RSK-125H 30 kW 55 kW 70 kW 125 A 110 A 110 A 170 A 170 A 170 A RSK-150H 40 kW 75 kW 75 kW 150 A 150 A 120 A 220 A 220 A 220 A RSK-220H 60 kW 90 kW 90 kW 220 A 180 A 150 A 275 A 275 A 275 A RSK-270H 90 kW 132 kW 132 kW 310 A 265 A 200 A 310 A 310 A 310 A RSK-300J 75 kW 150 kW 160 kW 300 A 300 A 250 A 350 A 350 A － RSK-400J 110 kW 200 kW 200 kW 400 A 400 A 350 A 420 A 420 A － Dimensions

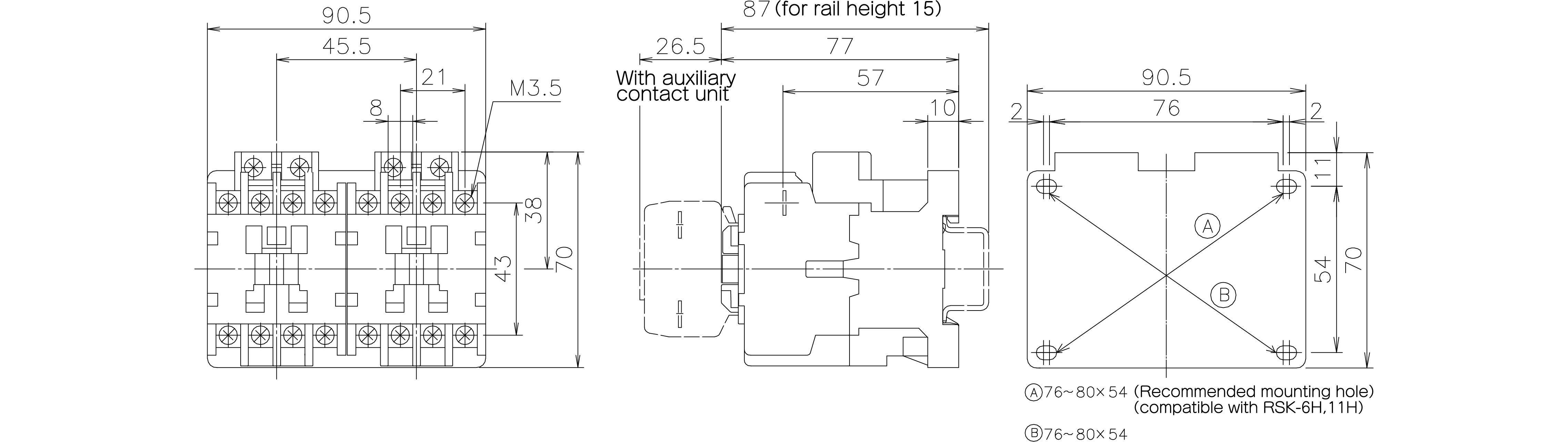

■Magnetic contactorRSK-11J

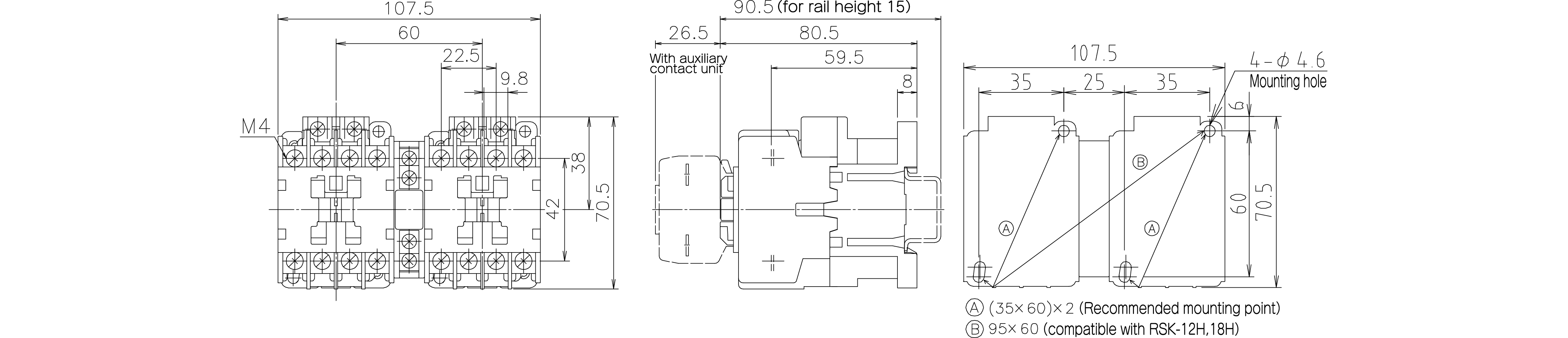

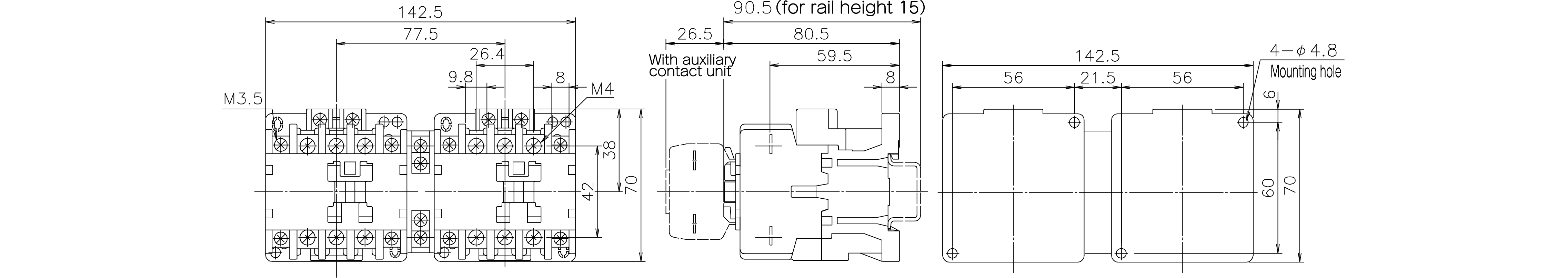

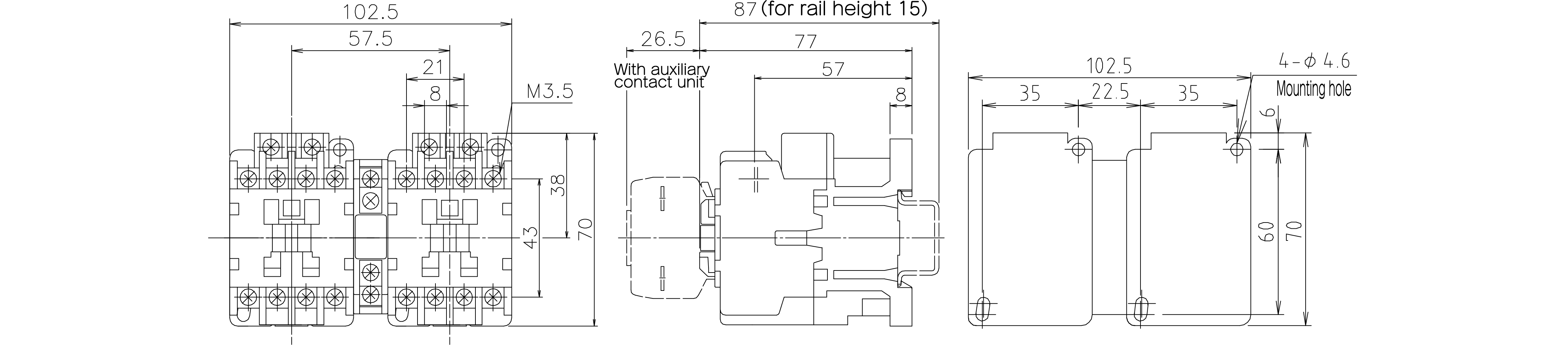

RSK-12J
RSK-20J
RSK-21J

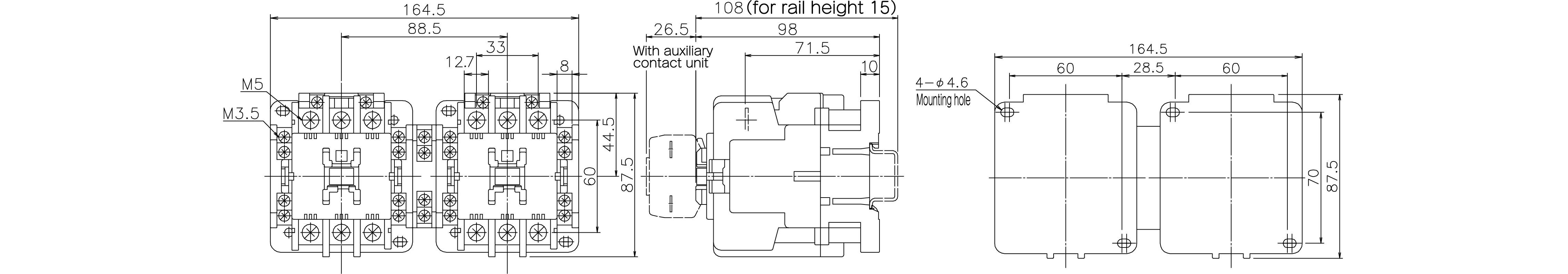

RSK-26J・35J・50J

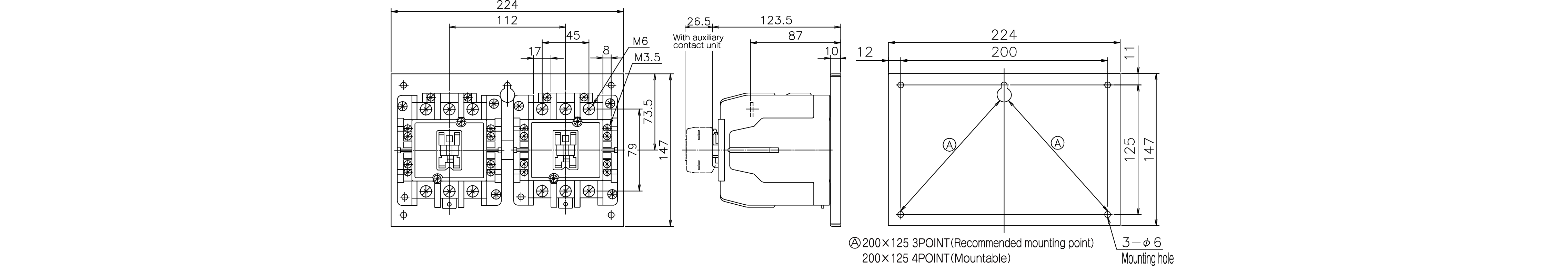

RSK-50H・65H・80H・95H

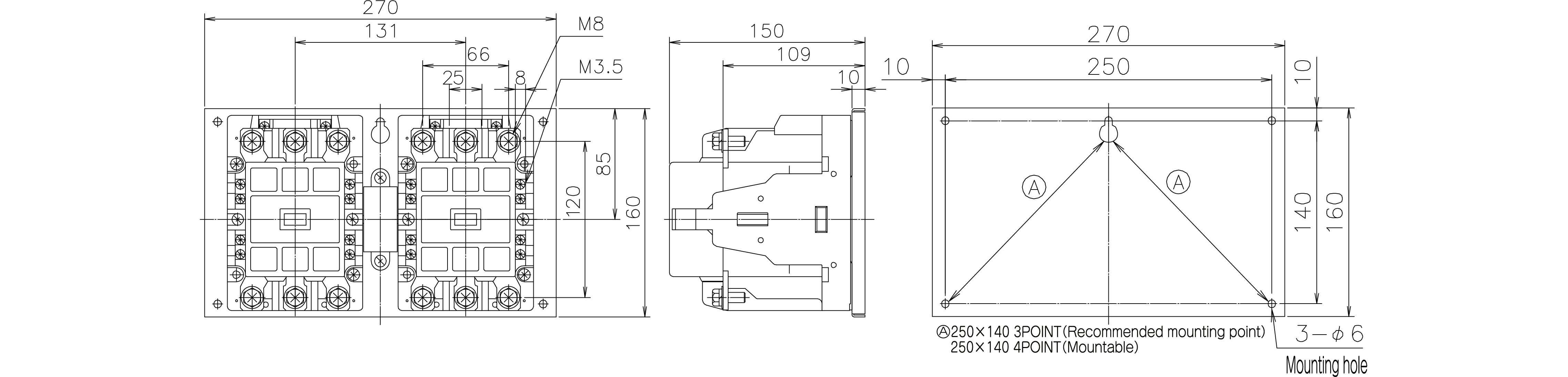

RSK-100H・125H

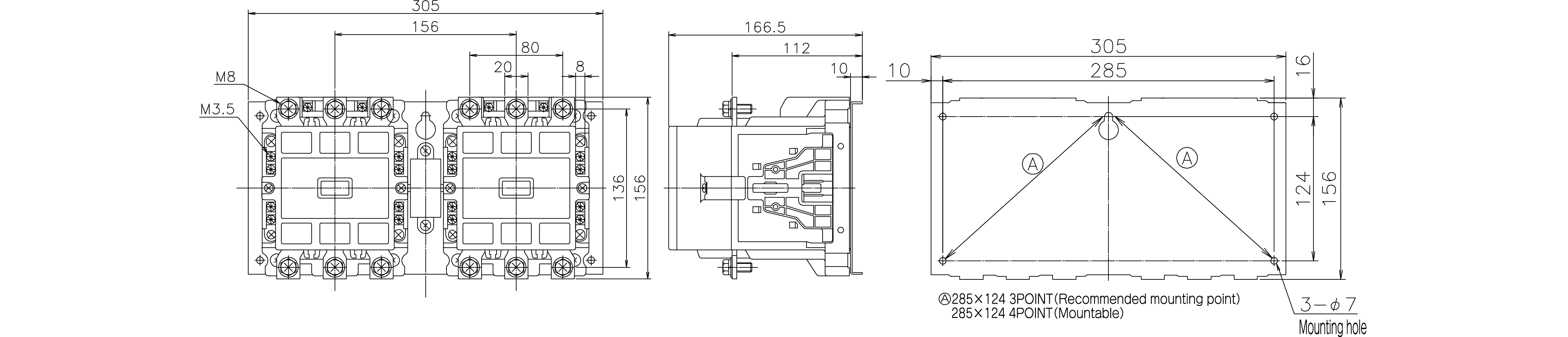

RSK-150H

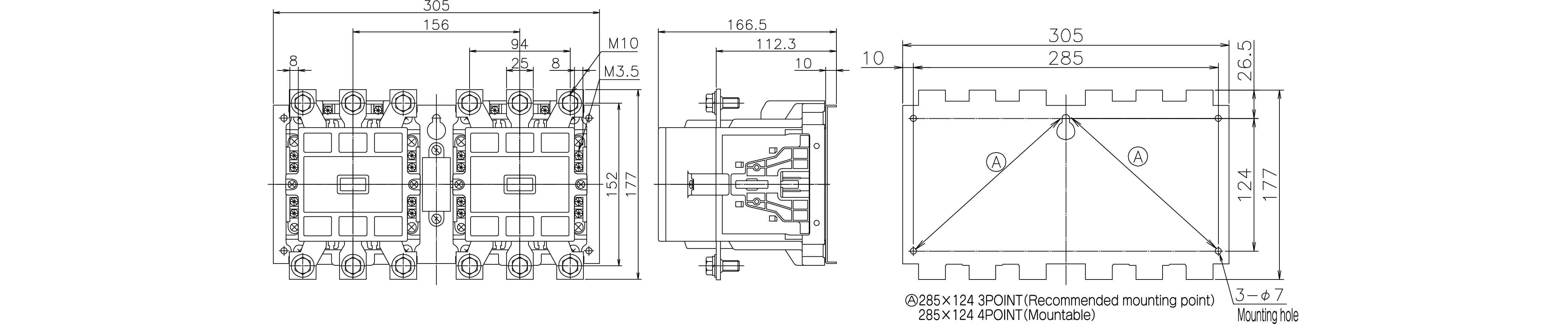

RSK-220H・270H

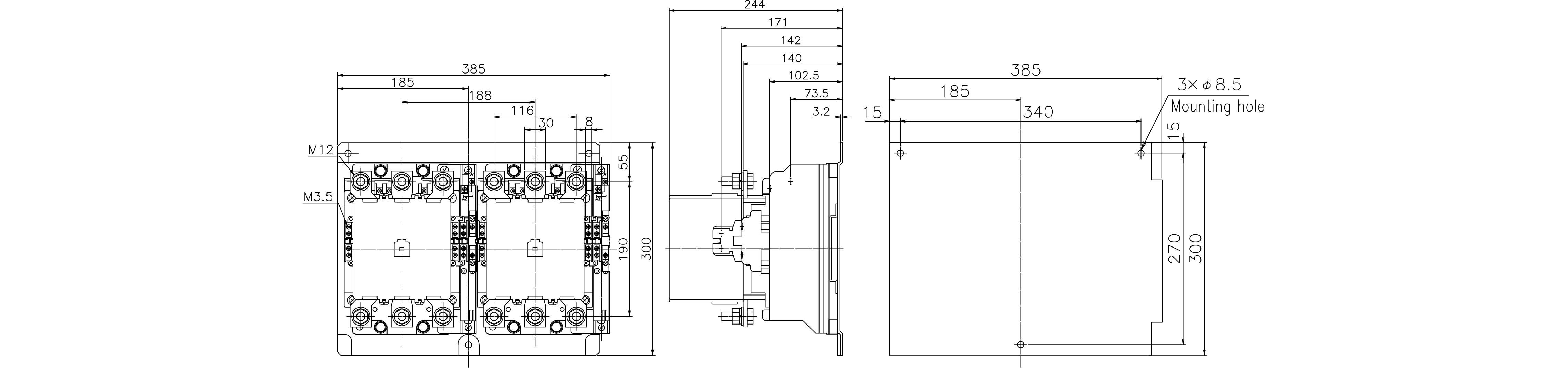

RSK-300J・400J

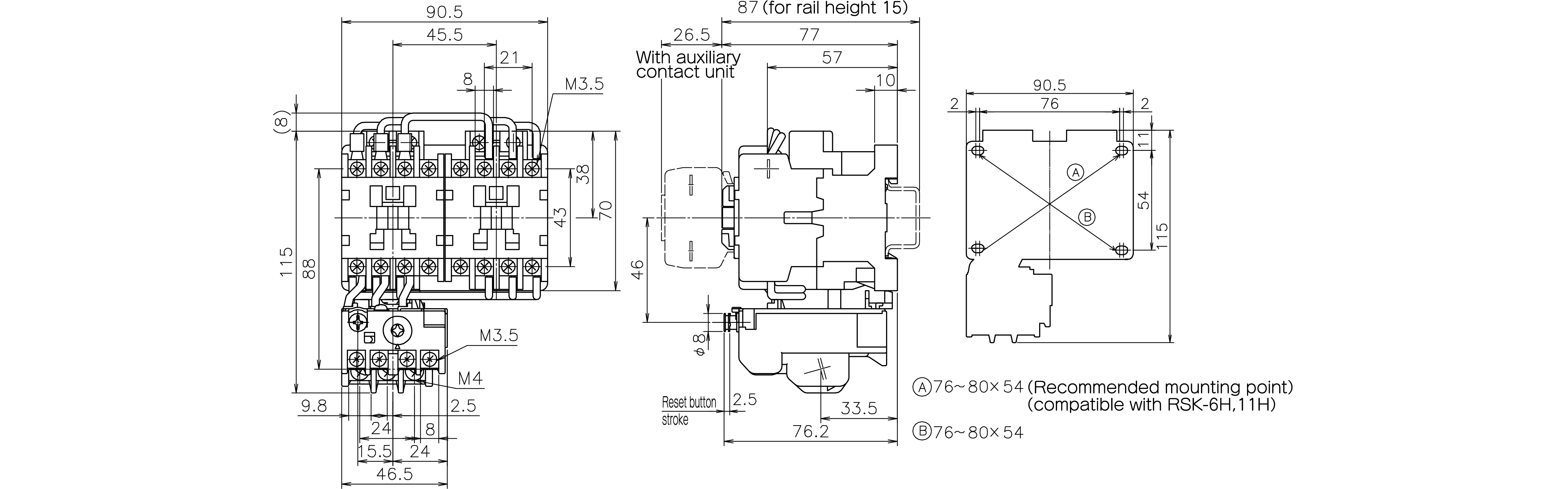

■Magnetic starterRSK-11JTC

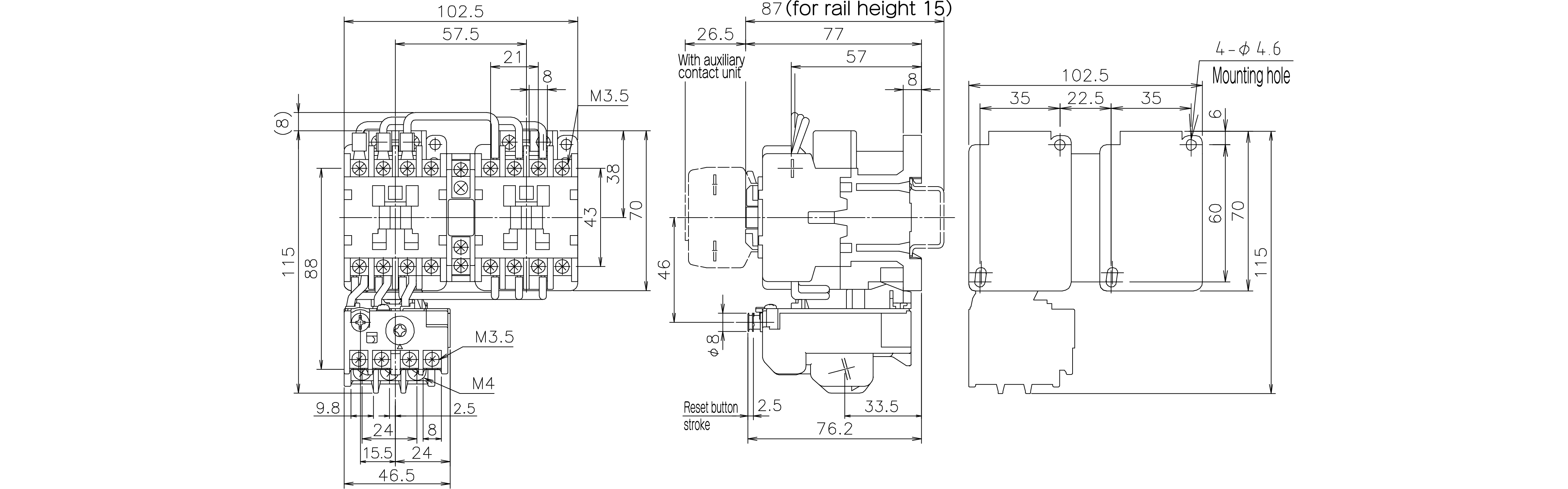

RSK-12JTC

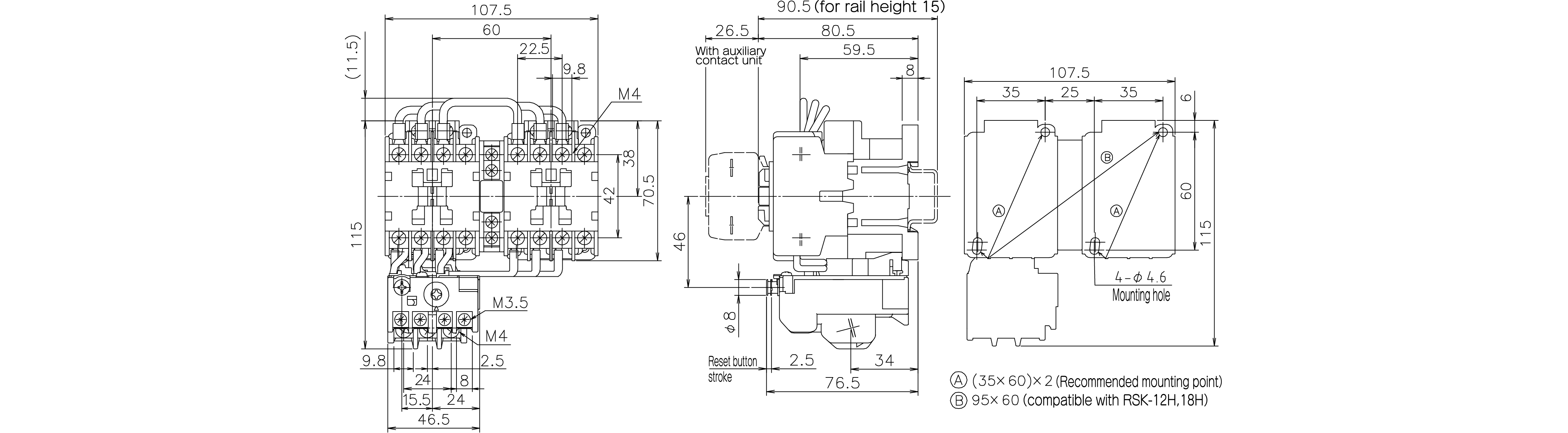

RSK-20JTC

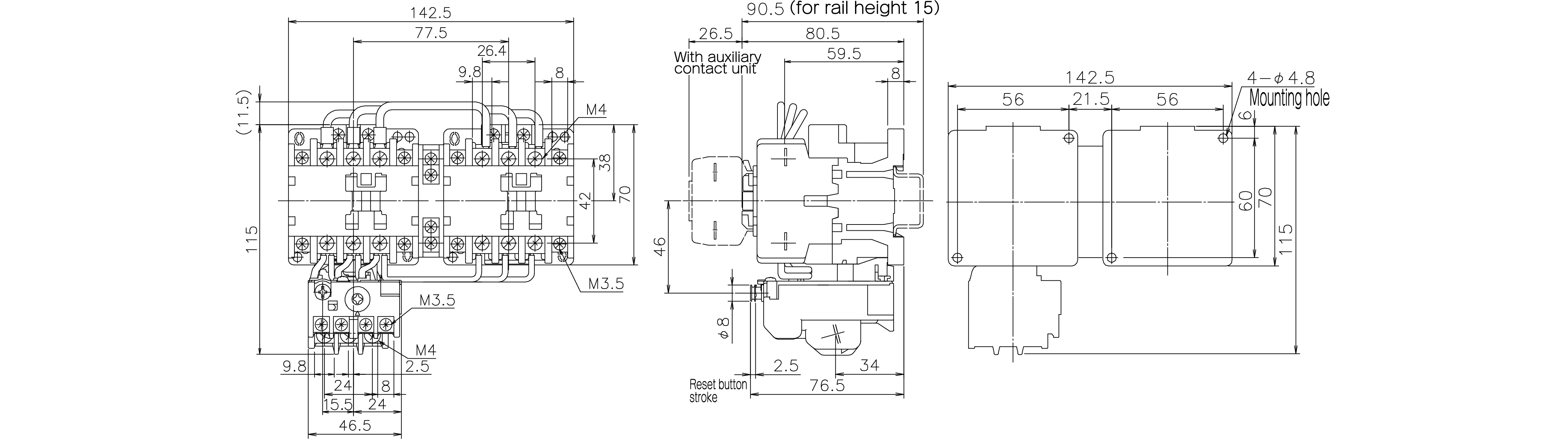

RSK-21JTC

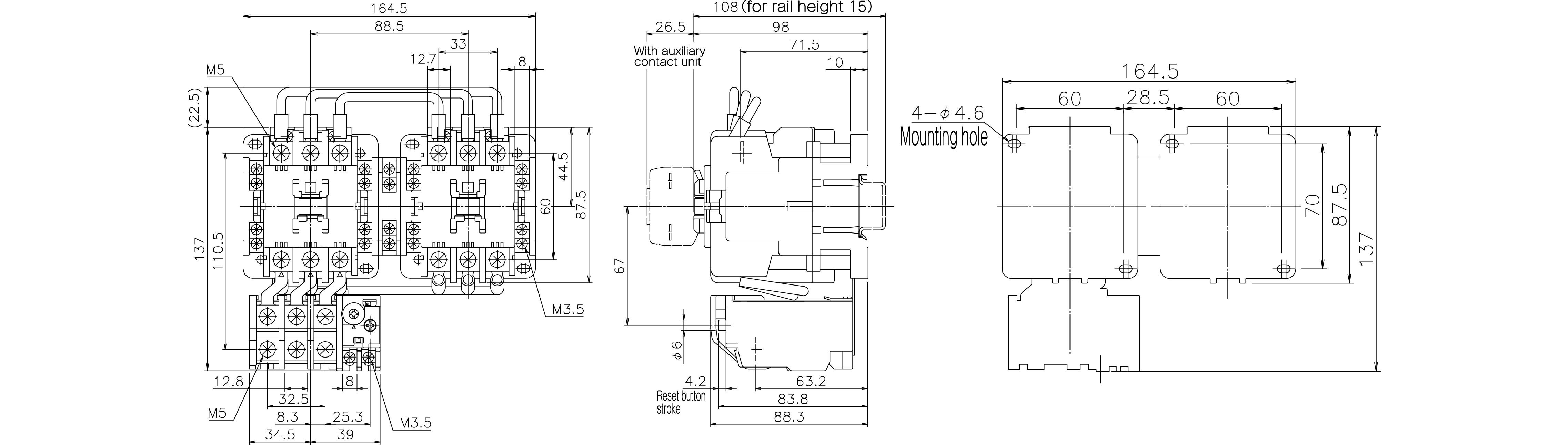

RSK-26JTC・35JTC・50JT

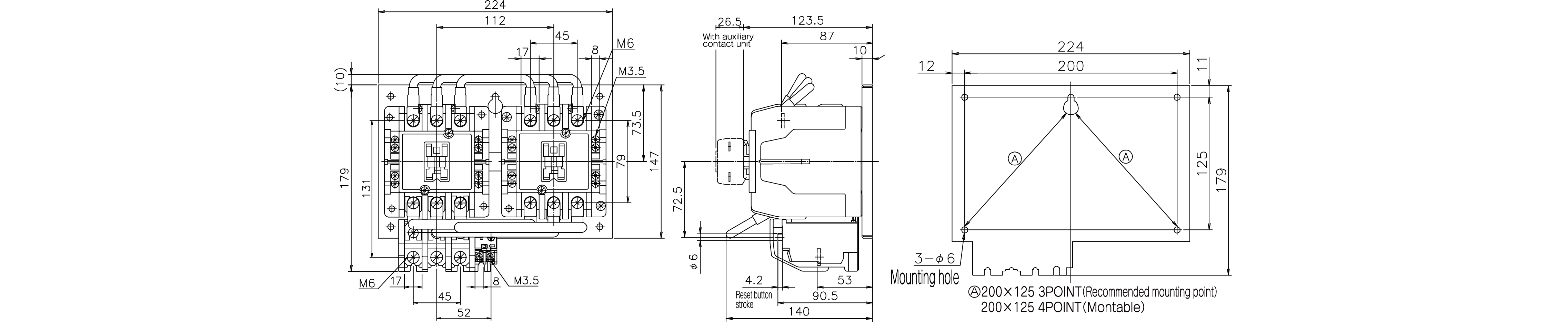

RSK-50HTC・65HTC・80HTC・95HT
RSK-100HTC・125HTC

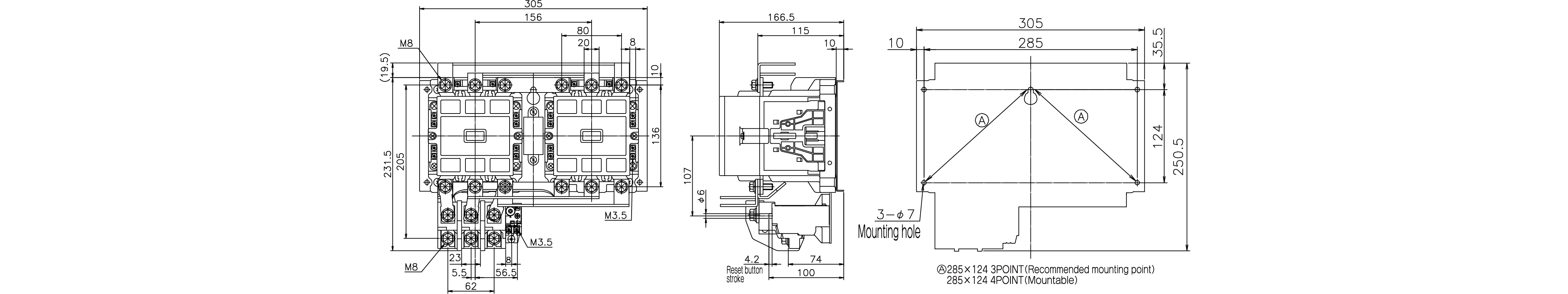

RSK-150HTC

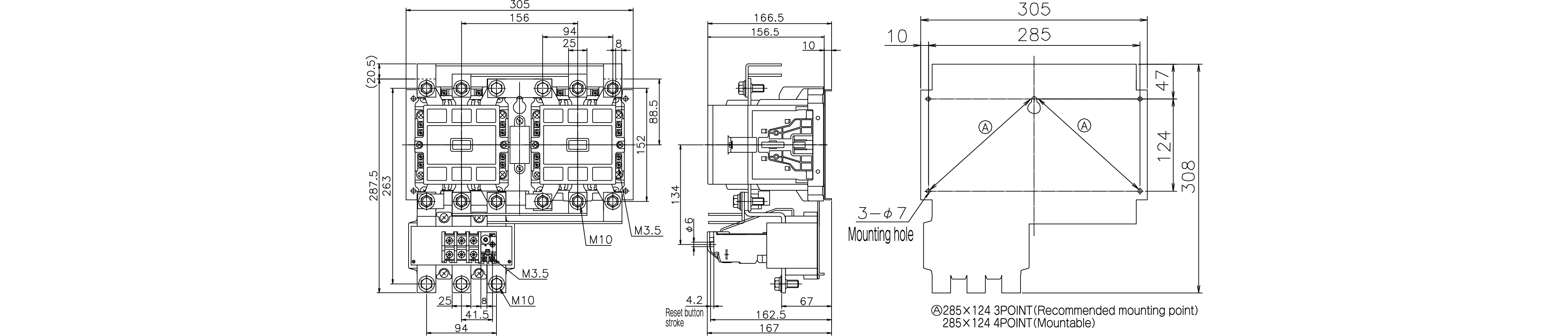

RSK-220HTC・270HT

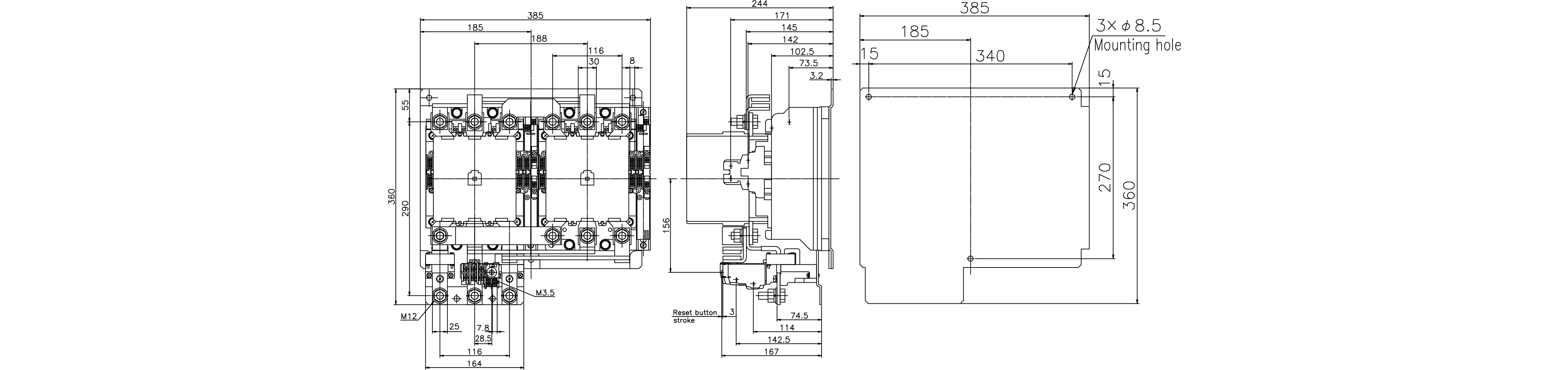

RSK-300JT・400JT
FAQ
- 01
- What optional accessories are available?
The following optional accessories are available:
■ Auxiliary contact units
Small electromagnetic contactors from 11J to 95H are available with 2-contact and 4-contact head-on type auxiliary contact units.
■ Finger protection function terminal covers (Models 11J to 50J)
■ Terminal protection covers (Models 50H to 400J)
■ Coil surge absorption units (Models 11J to 50J)
These suppress surge voltages generated by the coil. Models 50H to 400J have built-in surge absorption functions.- 02
- Can the products be mounted on rails?
They are readily mounted on the 35 mm wide rails specified in DIN, IEC, and JIS C 2812 standards. (Models 11J to 50J)- 03
- Can they be used to replace or upgrade existing products?
In most cases, yes. This may not be possible in certain cases due to the number of auxiliary contacts or special specifications or in cases involving customer-specific products.Product category- TOP
