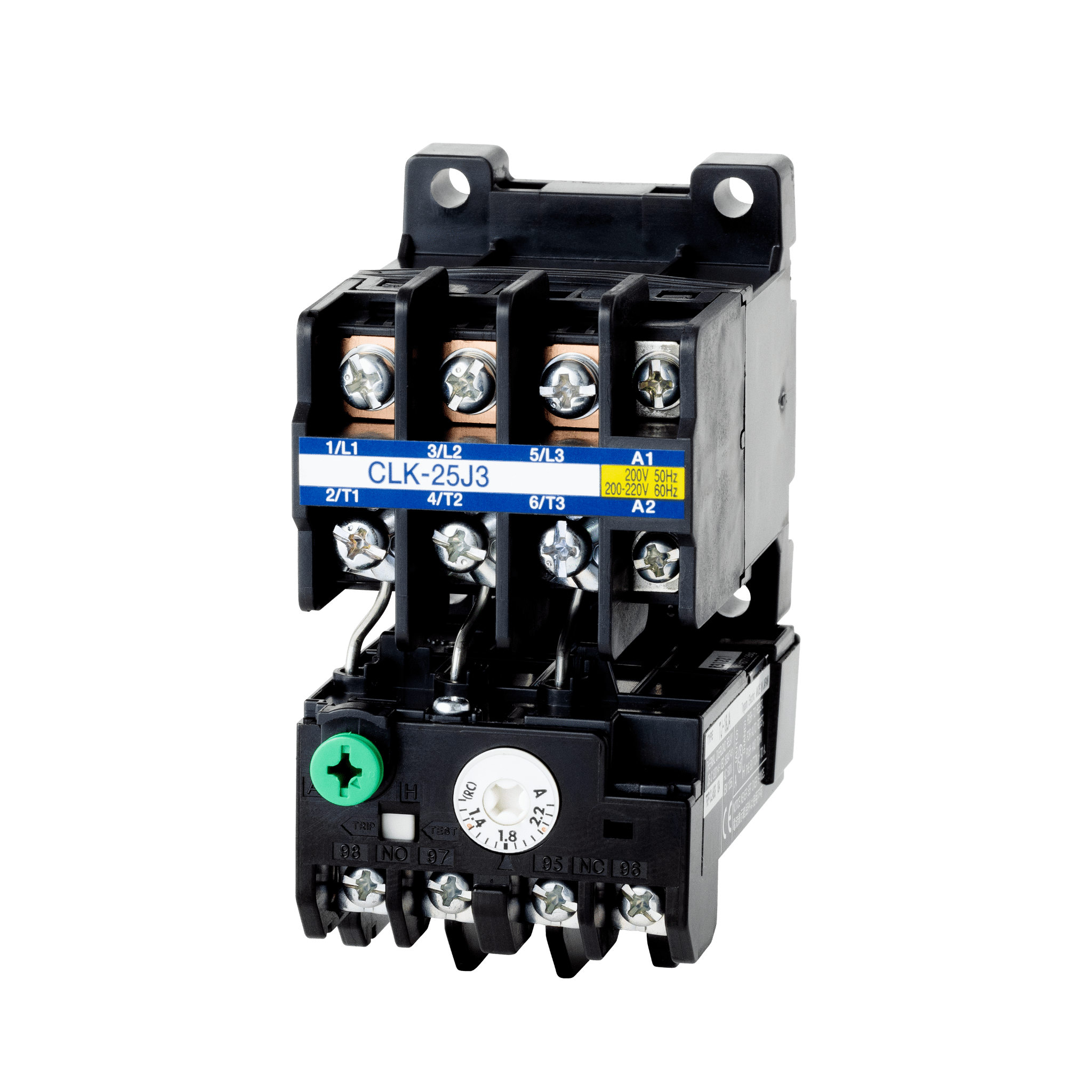

CLK-25J3
- Togami Electric's Strengths
-
Products
-
Magnetic Contactor / Starter
Togami Electric Mfg. manufacturers standard electromagnetic contactor/starters, economical electromagnetic contactor/starters, DC-operated electromagnetic contactor/starters, and other types of electromagnetic contactor/starters.
-
PCB Relay
Our extensive lineup includes PCB relays used for inrush current prevention circuits and pre-charge circuits.
-
Motor Control Center
These are units for controlling the switching of equipment, including motors and pumps. They feature a compact design for cost-effectiveness and ease of use, allowing flexible custom designs combining the functions required to meet customer needs.
-
Switchboard
We offer an extensive lineup of different distribution boards, including high-voltage distribution boards. Flexible custom designs are possible by combining those functions required to meet customer needs.
-
Explosion-Proof and Corrosion-Resistant Control Equipment
We offer a lineup of explosion-proof control equipment for use in explosion-proof areas, corrosion-resistant control equipment ideal for use in environments where corrosive gases are present.
-
Super Line Checker
This is ideal for checking lines following faults or during maintenance before electrical equipment expansion or modification work. It allows live power lines to be checked by a single operator.
-
Recloser
Togami Electric Mfg. Co., Ltd. designs, manufactures, and supplies Automatic Circuit Reclosers (Fault Clear) for power distribution lines.
-
Ring Main Unit (RMU)
We manufacture Ring Main Units (RMU) to connect, control, and protect different sections of a ring network.
- Company
-
COMPANY
『Make the society,
the Earth,
and the future prosperous!』 -
- Sustainability
- TOP
- Products
- Magnetic Contactor / Starter
- Economical Magnetic Contactor / Starter(AC Operational)
PRODUCTS
Economical Magnetic Contactor / Starter
AC operationalIdeal for applications with minimal jogging and braking operations, such as compressors, motors, heaters in air conditioners, and other heating equipment. Has an electrical operating life of 250,000 cycles.
Features
- Specifically designed as an economical type, providing high quality at low cost.
- An extensive lineup is available, from compact models (15 AF) to large-size models (250 AF).
Specifications
Model number/rating AC-3 3-phase squirrel-cage induction motor AC-1 Resister, Heater Rated Operational Power Rated Operational Current 240 V 440 V 240 V 440 V 240 V 440 V CLK-25JF2 － － － － 30 A 21 A CLK-15JFC 3 kW 4.5 kW 15 A 10 A 24 A 18 A CLK-25J2 － － － － 30 A 30 A CLK-15JC 3 kW 4.5 kW 15 A 10 A 20 A 18 A CLK-25J3 5.5 kW 7.5 kW 26 A 18 A 30 A 20 A CLK-20J 4 kW 5.5 kW 20 A 13 A 26 A 20 A CLK-26J 5.5 kW 7.5 kW 26 A 18 A 30 A 28 A CLK-28J 7.5 kW 11 kW 28 A 23 A 30 A 28 A CLK-35J2 － － － － 45 A 38 A CLK-35J3 7.5 kW 11 kW 35 A 26 A 45 A 38 A CLK-35J 7.5 kW 11 kW 35 A 26 A 45 A 38 A CLK-40J 7.5 kW 11 kW 40 A 32 A 45 A 38 A CLK-50J 11 kW 19 kW 50 A 40 A 60 A 60 A CLK-65J 15 kW 30 kW 65 A 65 A 65 A 65 A CLK-65H 15 kW 30 kW 65 A 65 A 75 A 75 A CLK-80H 19 kW 37 kW 80 A 75 A 90 A 90 A CLK-100H 22 kW 40 kW 100 A 80 A 110 A 110 A CLK-125H 30 kW 55 kW 125 A 110 A 150 A 150 A CLK-150H 37 kW 60 kW 150 A 125 A 170 A 170 A CLK-200H 50 kW 80 kW 200 A 160 A 220 A 220 A CLK-250H 68 kW 90 kW 250 A 180 A 260 A 260 A Dimensions

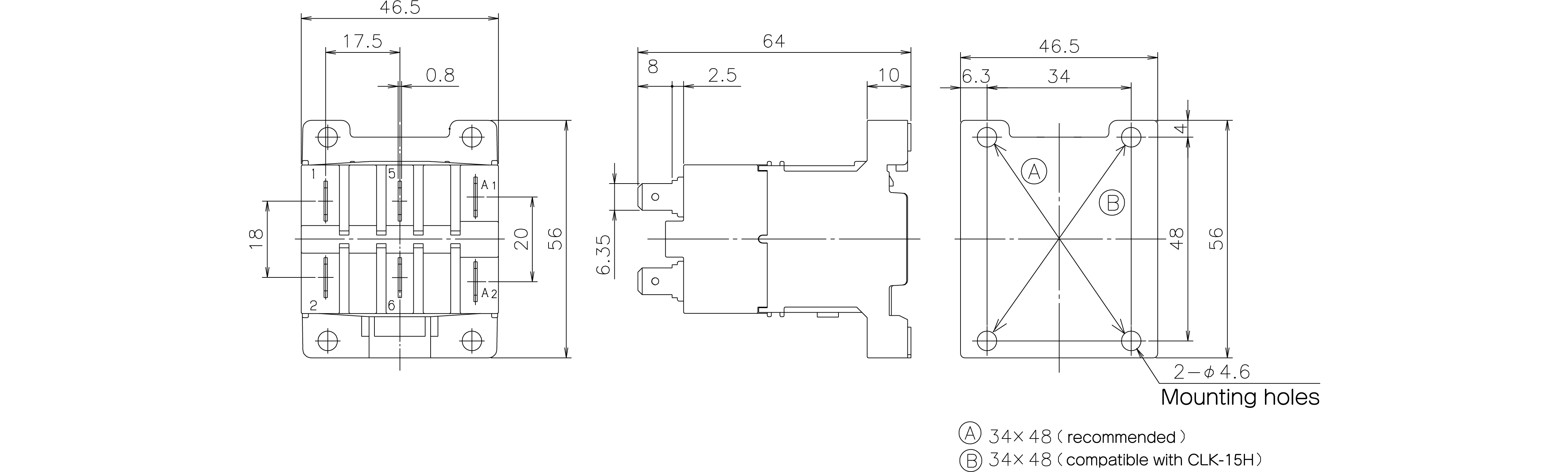

■Magnetic contactorCLK-25JF2

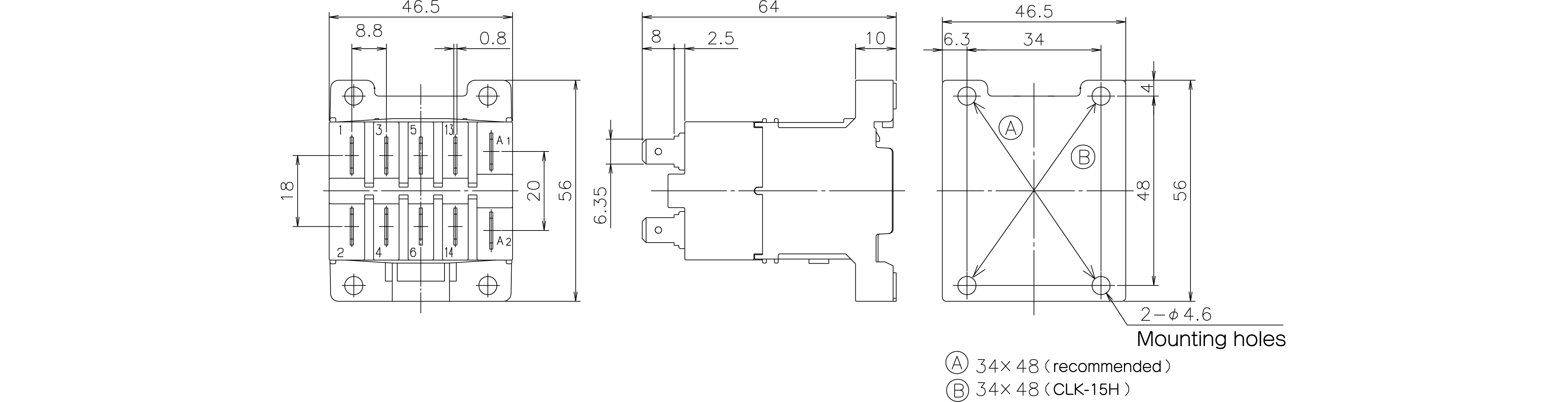

CLK-15JFC

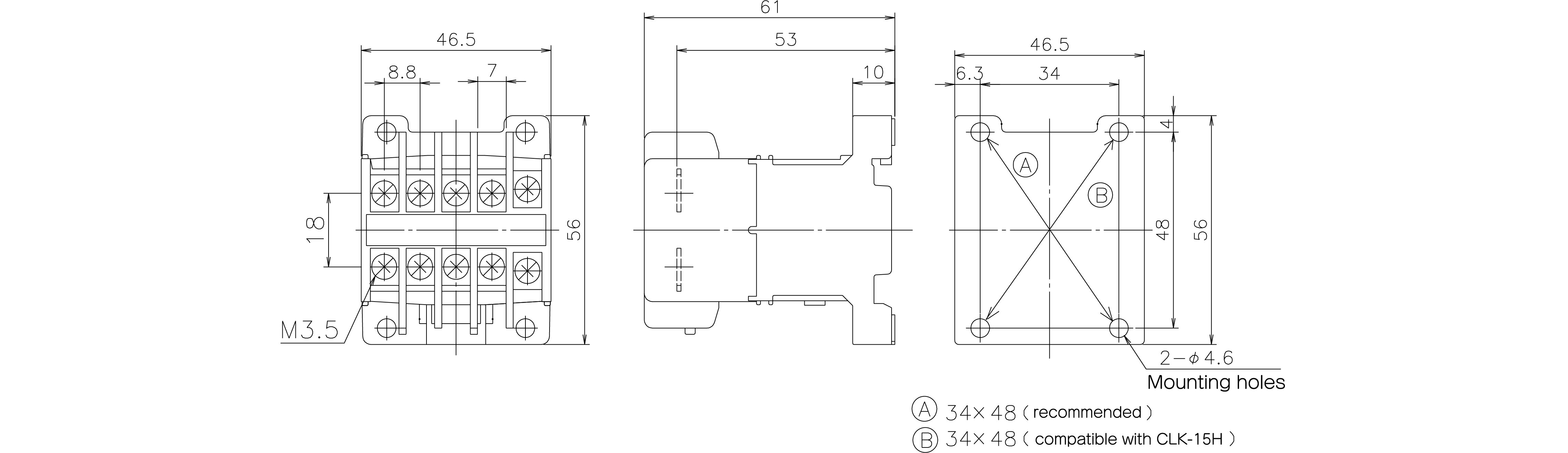

CLK-15JC

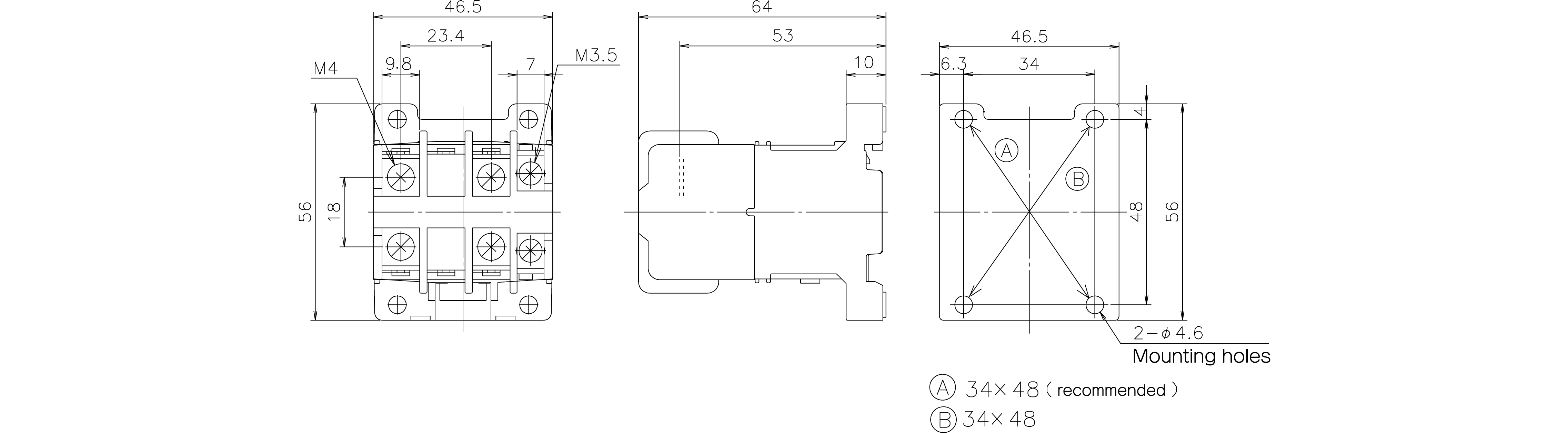

CLK-25J2

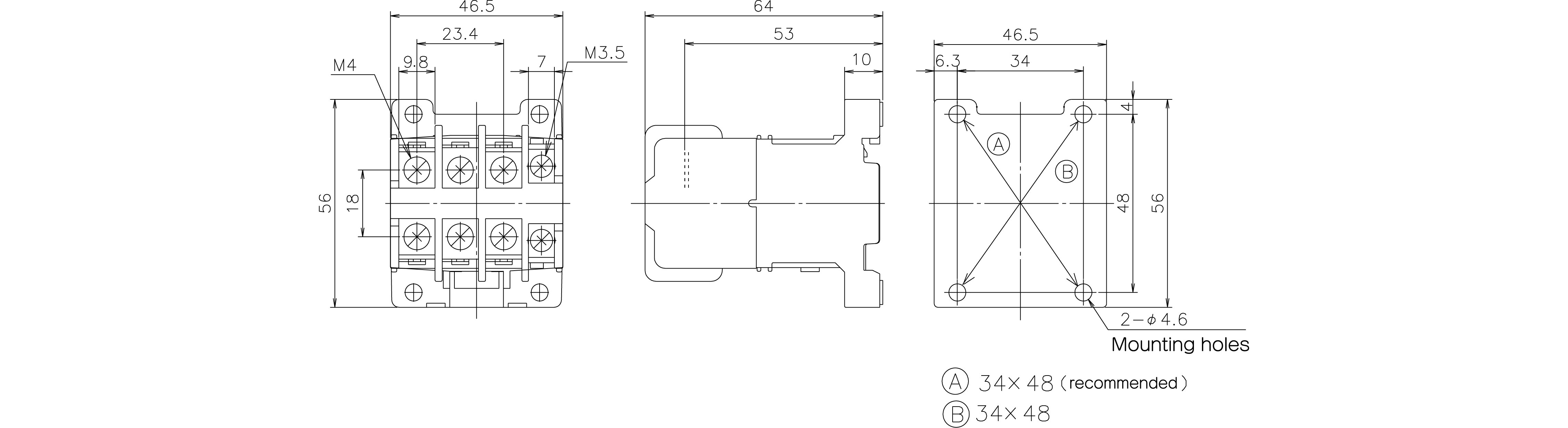

CLK-25J3
CLK-20J・26J・28J

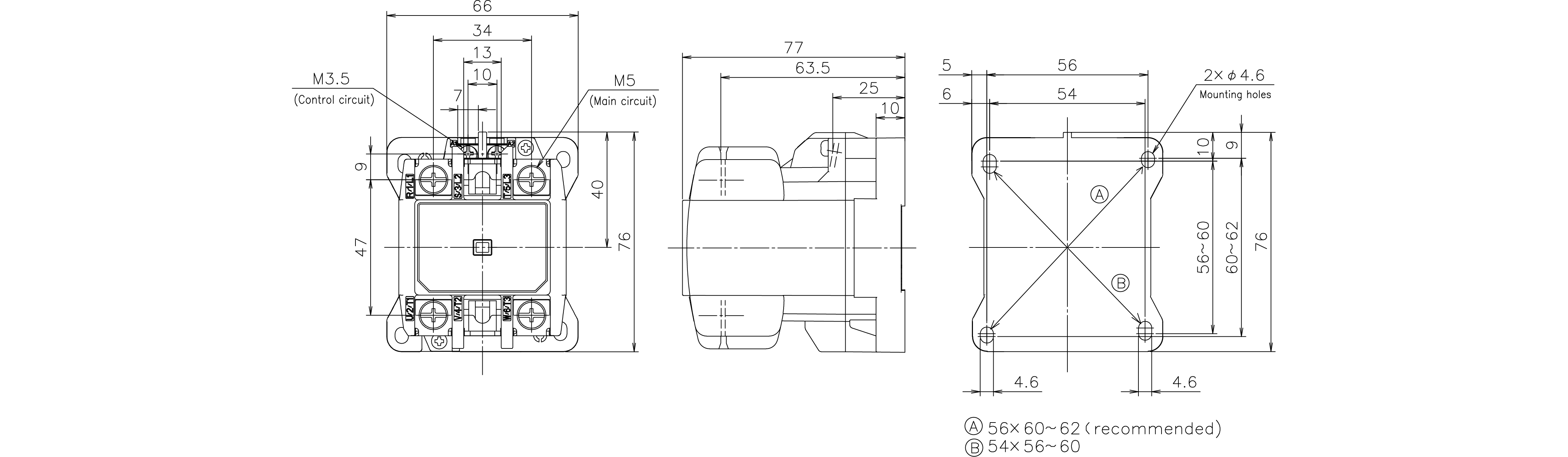

CLK-35J2

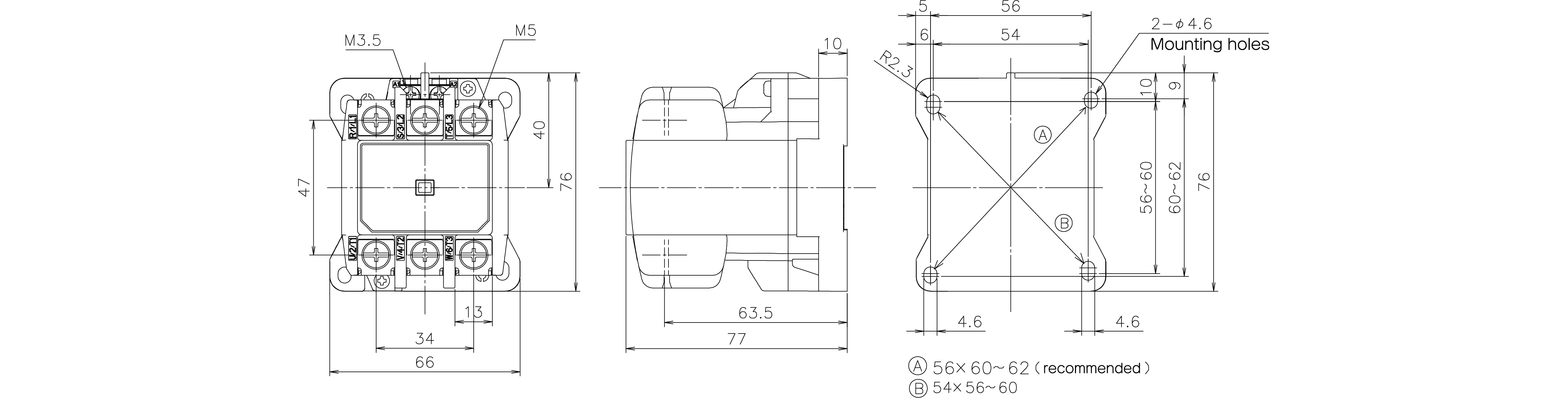

CLK-35J3

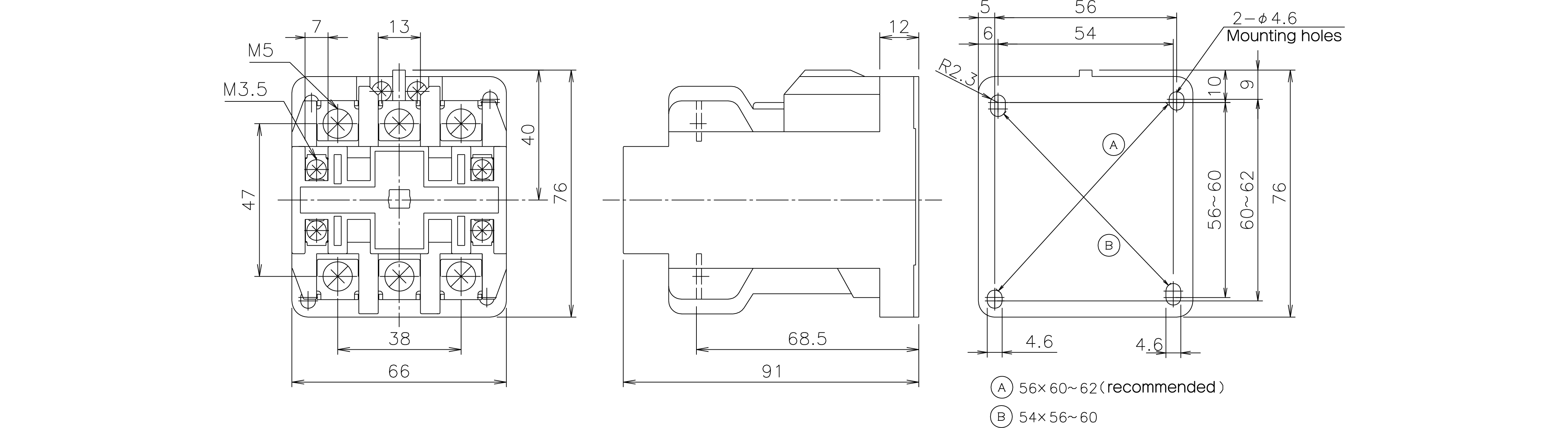

CLK-35J・40J

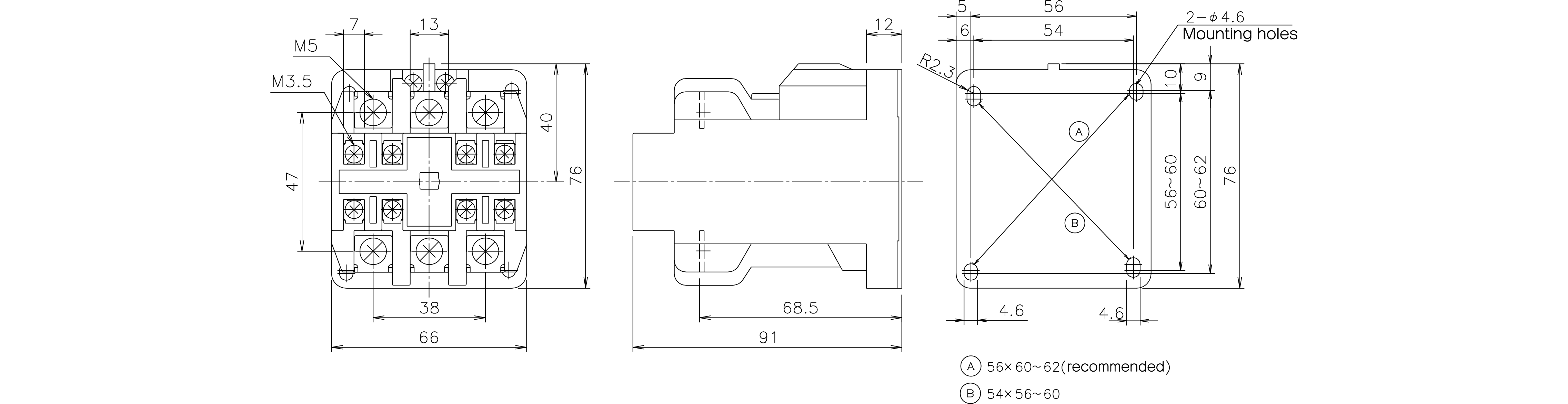

CLK-50J

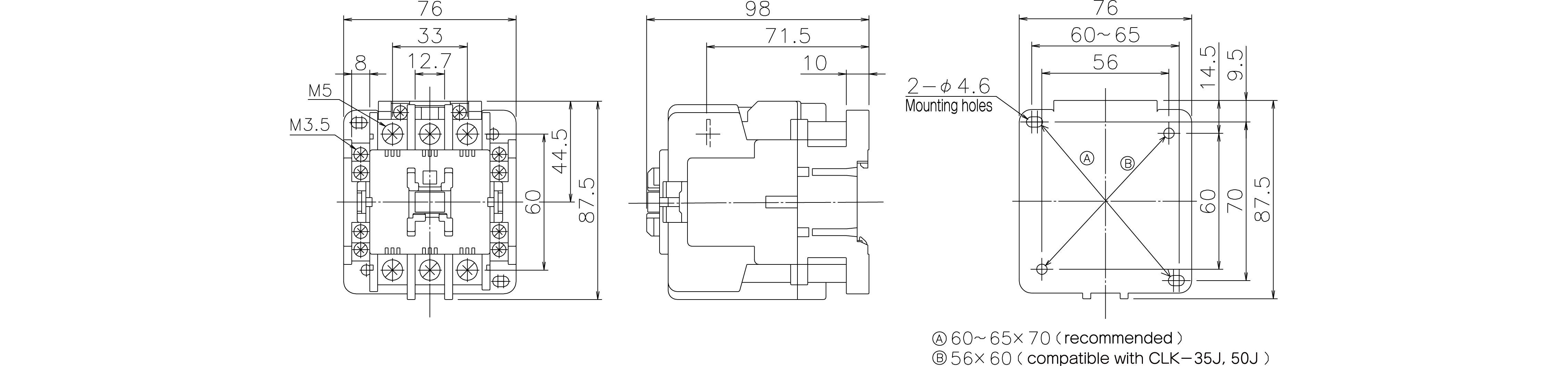

CLK-65J

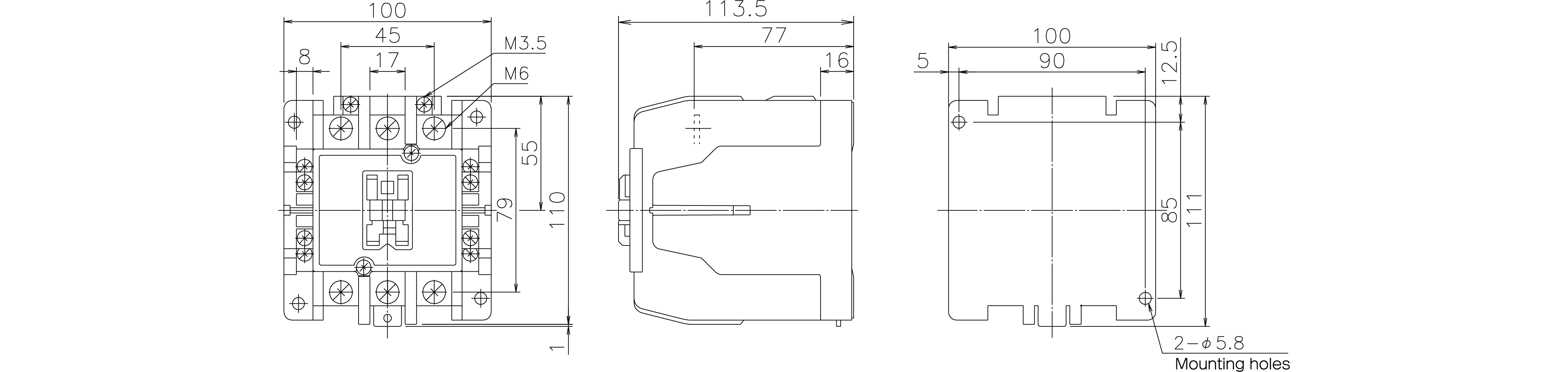

CLK-65H・80H・100H

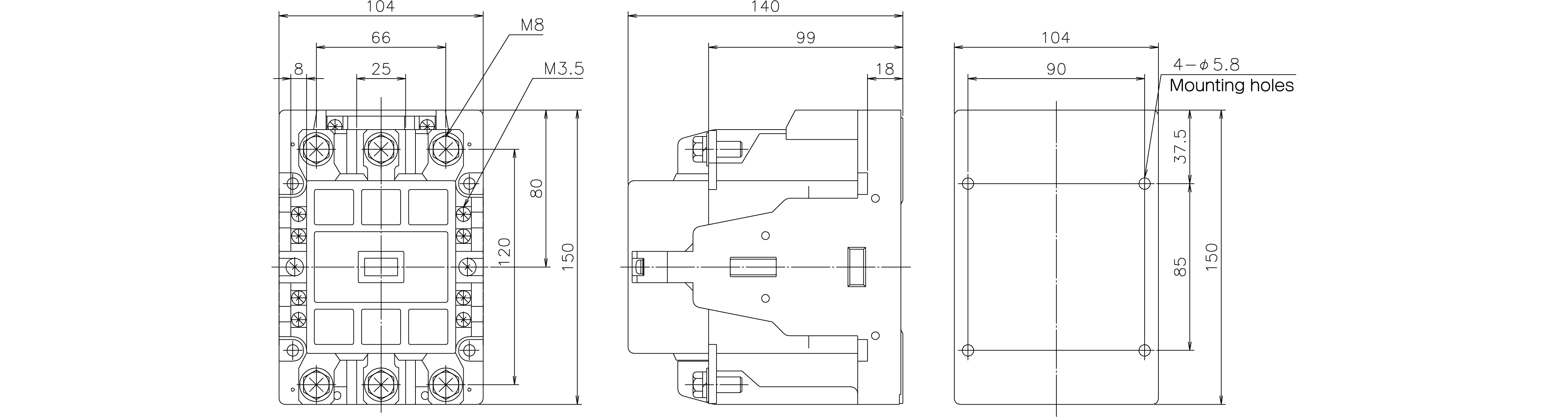

CLK-125H・150H

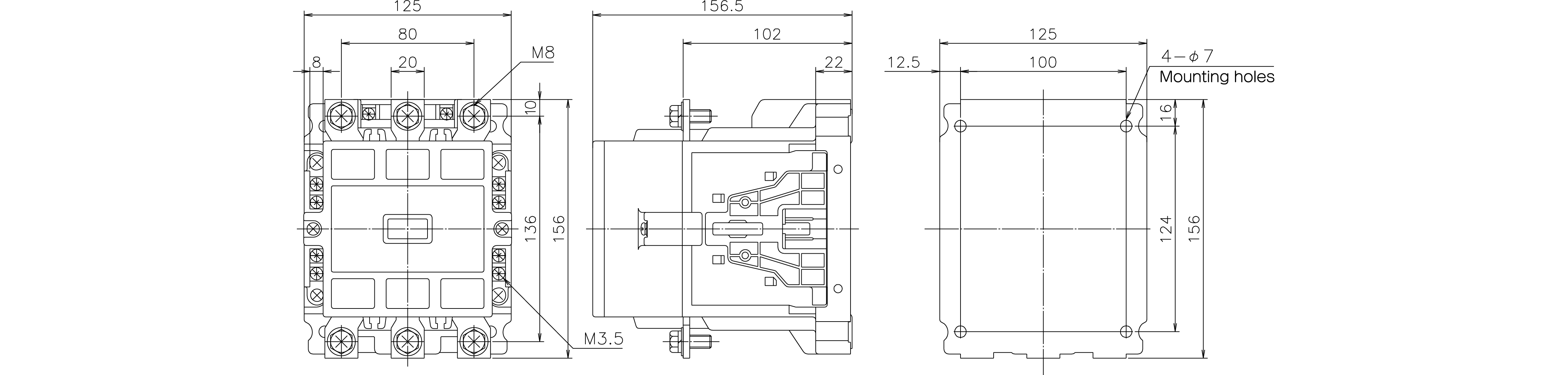

CLK-200H

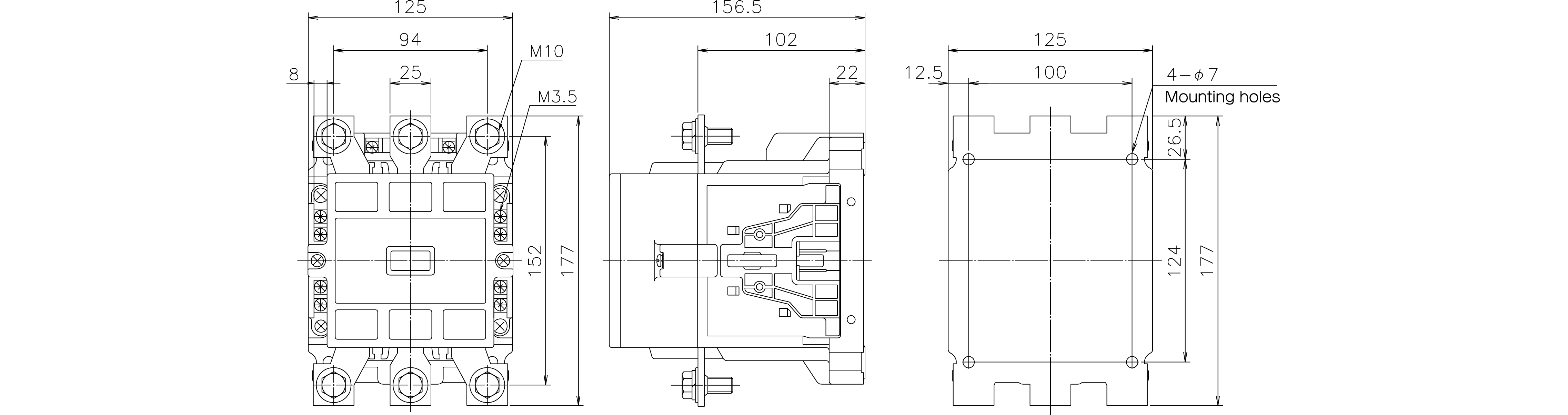

CLK-250H

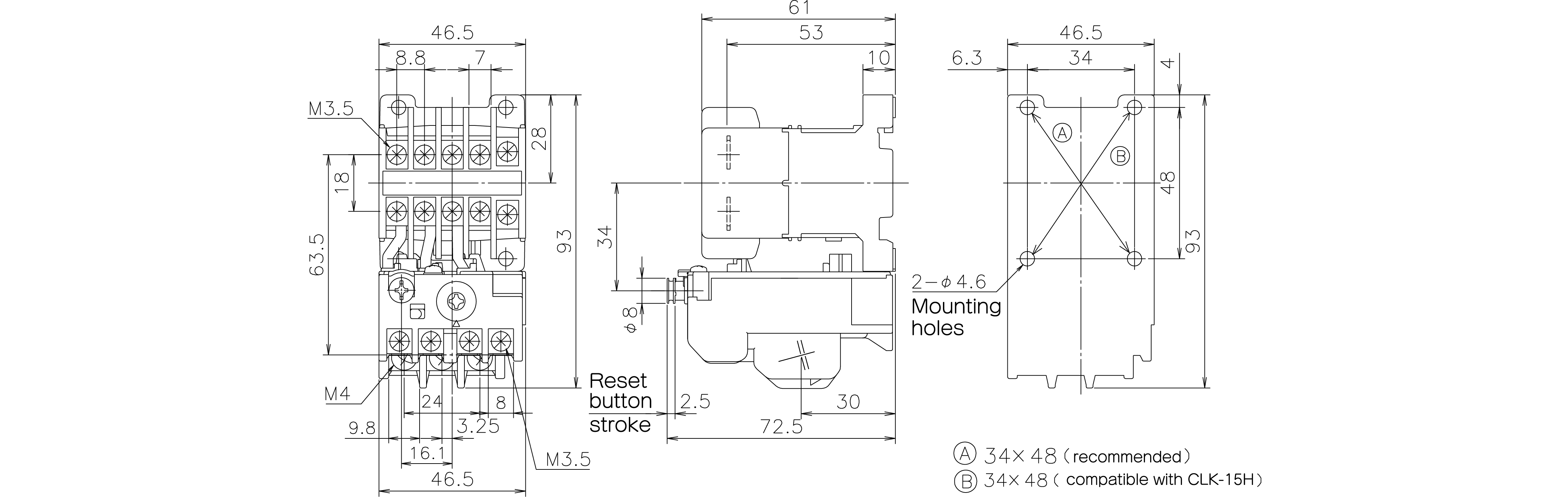

■Magnetic starterCLK-15JTC

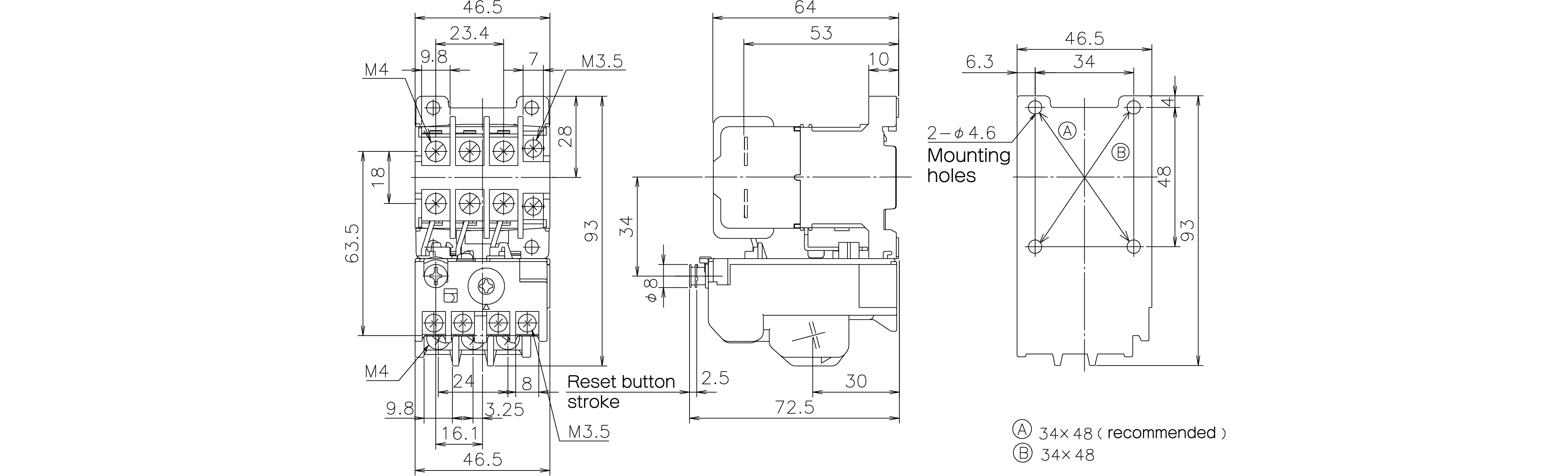

CLK-25J3T

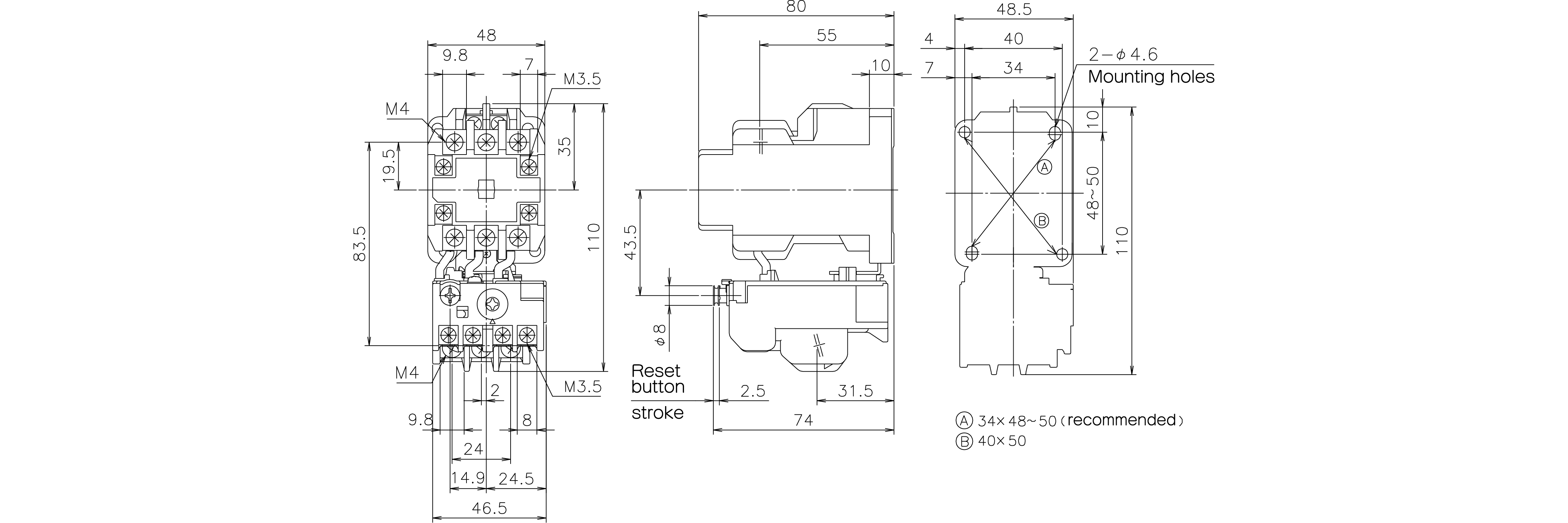

CLK-20JTC・26JTC・28JT

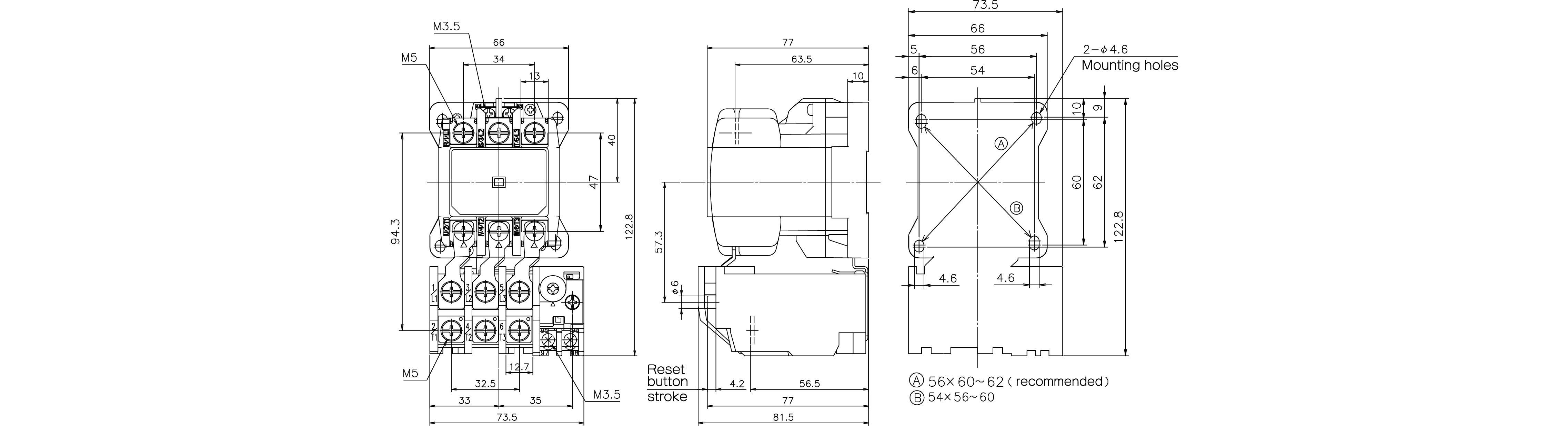

CLK-35J3T

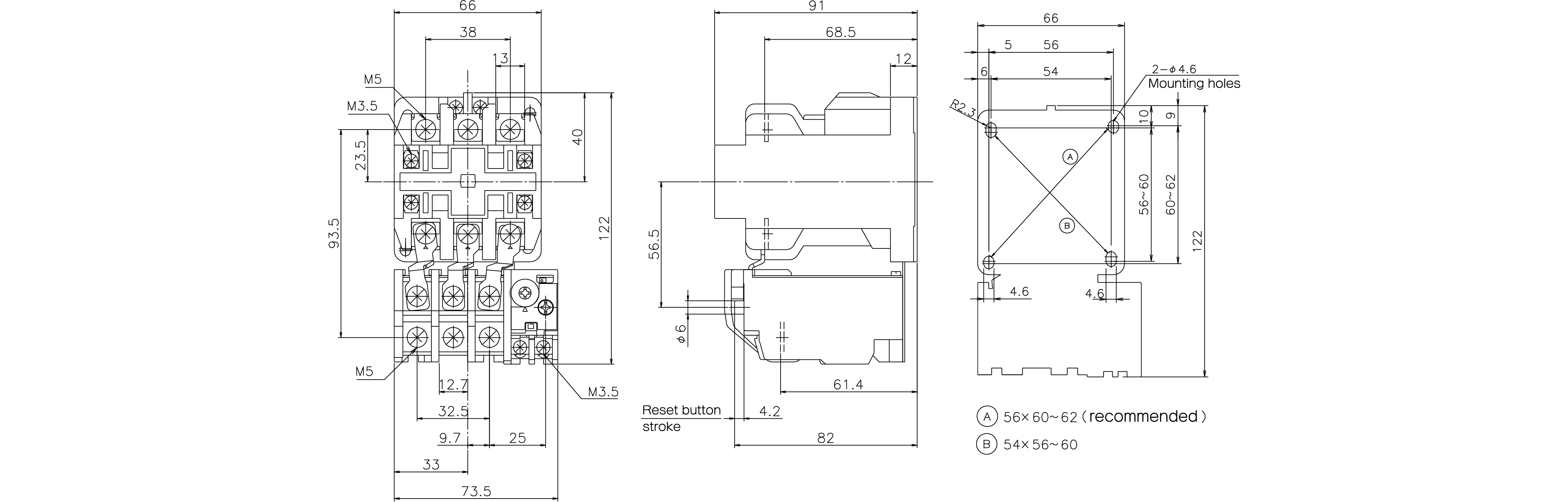

CLK-35JTC・40JTC

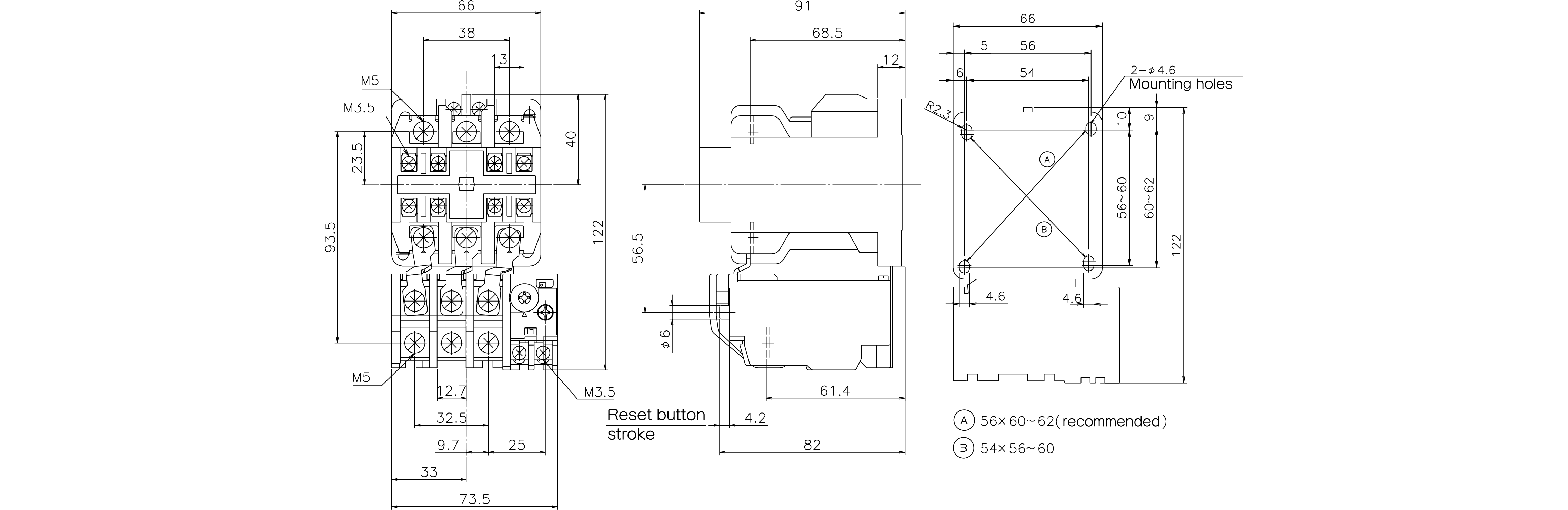

CLK-50JTC

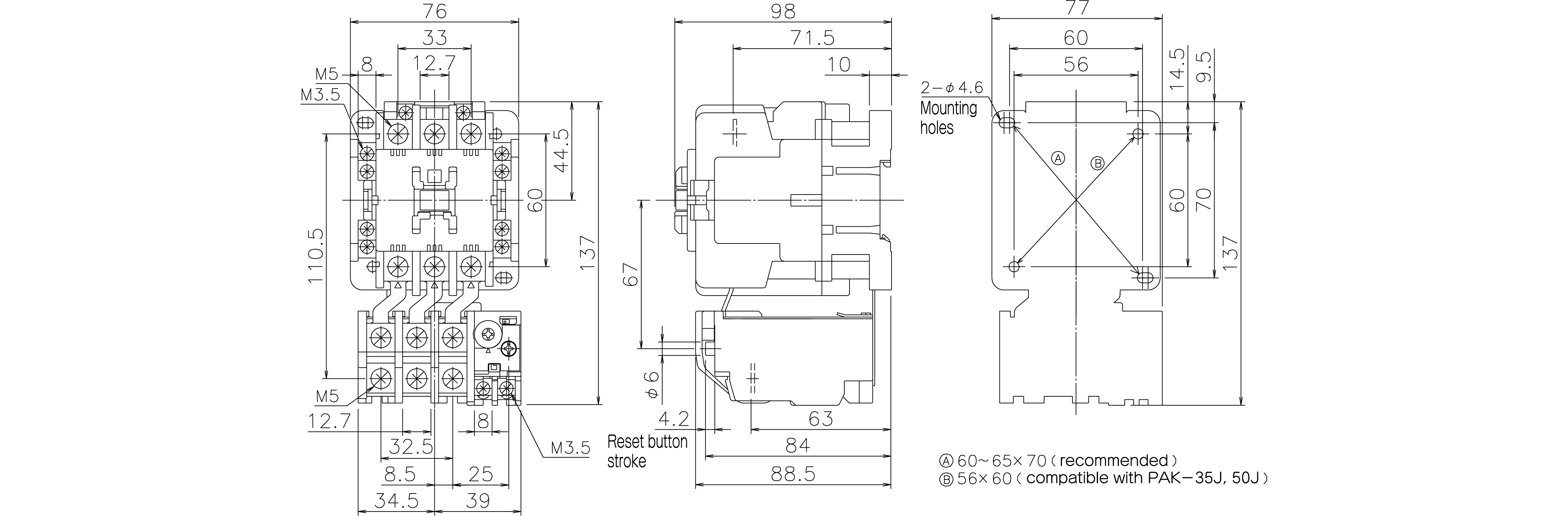

CLK-65JT

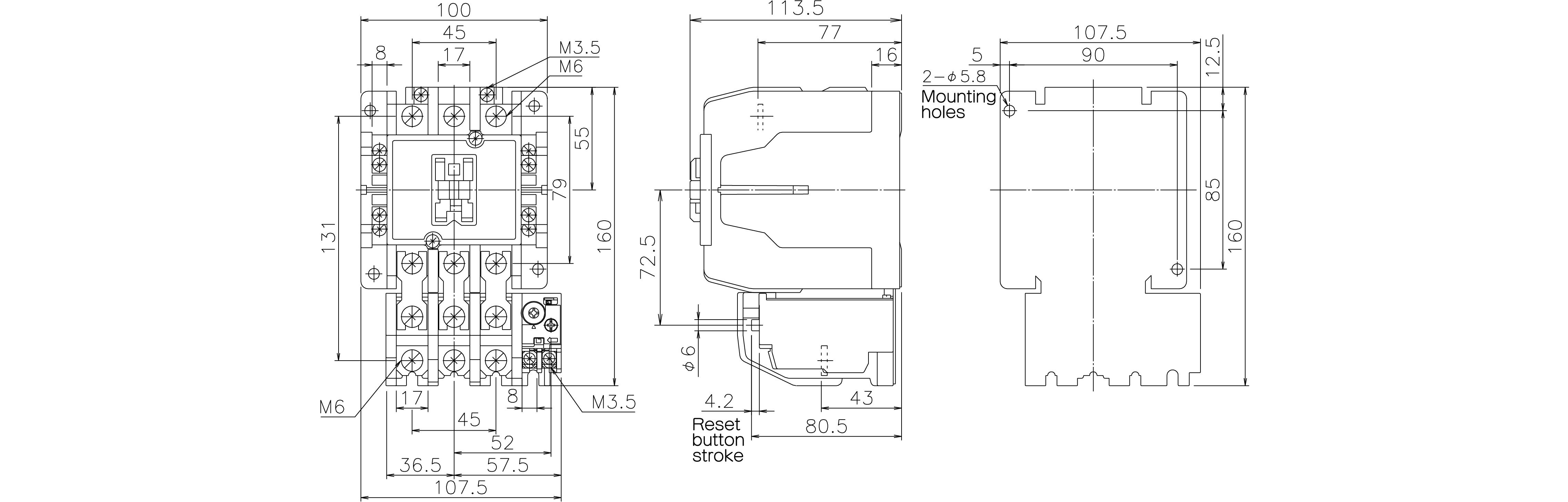

CLK-65HTC・80HTC・100HTC

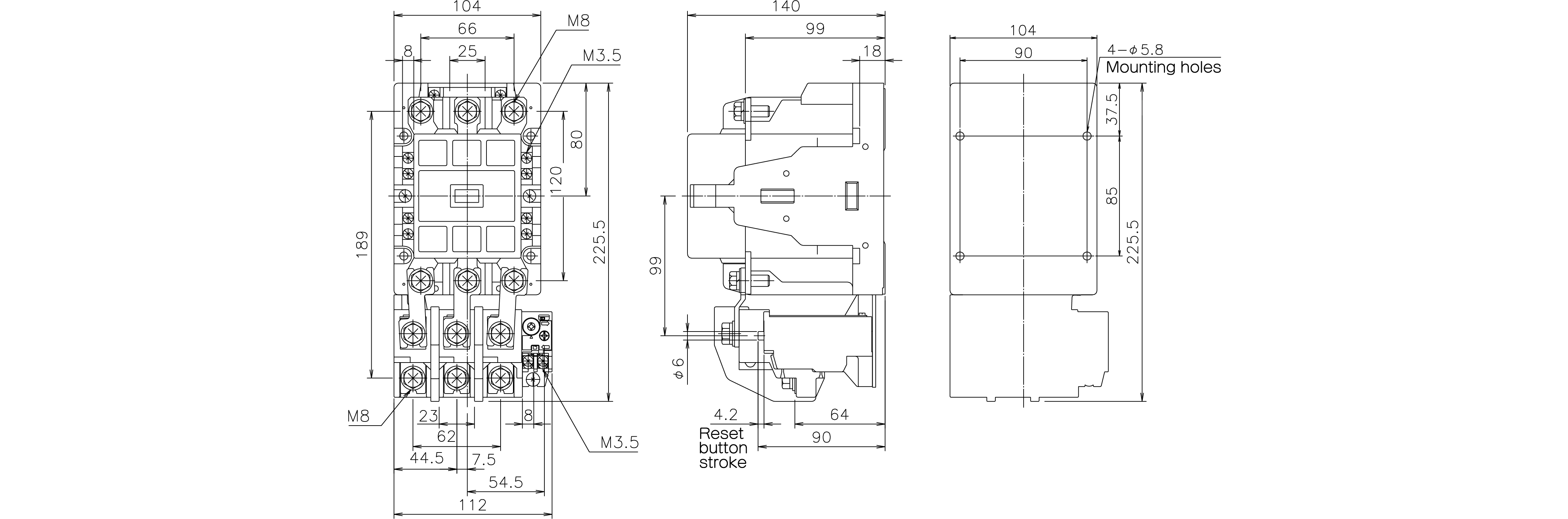

CLK-125HTC・150HTC

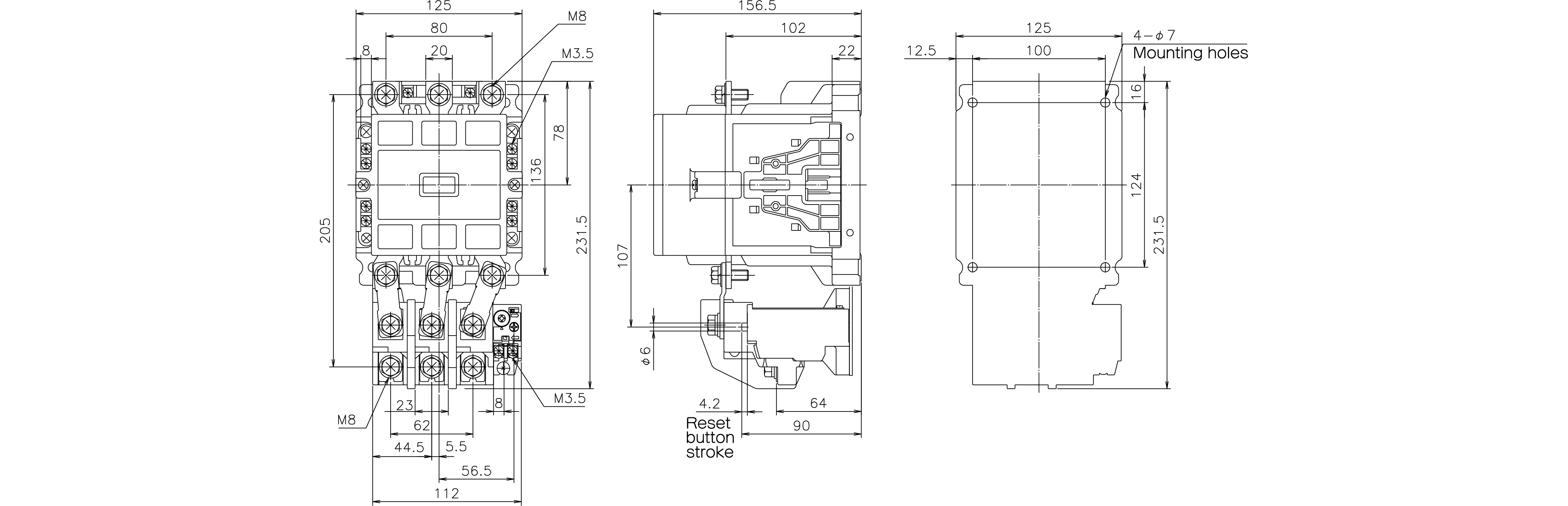

CLK-200HTC

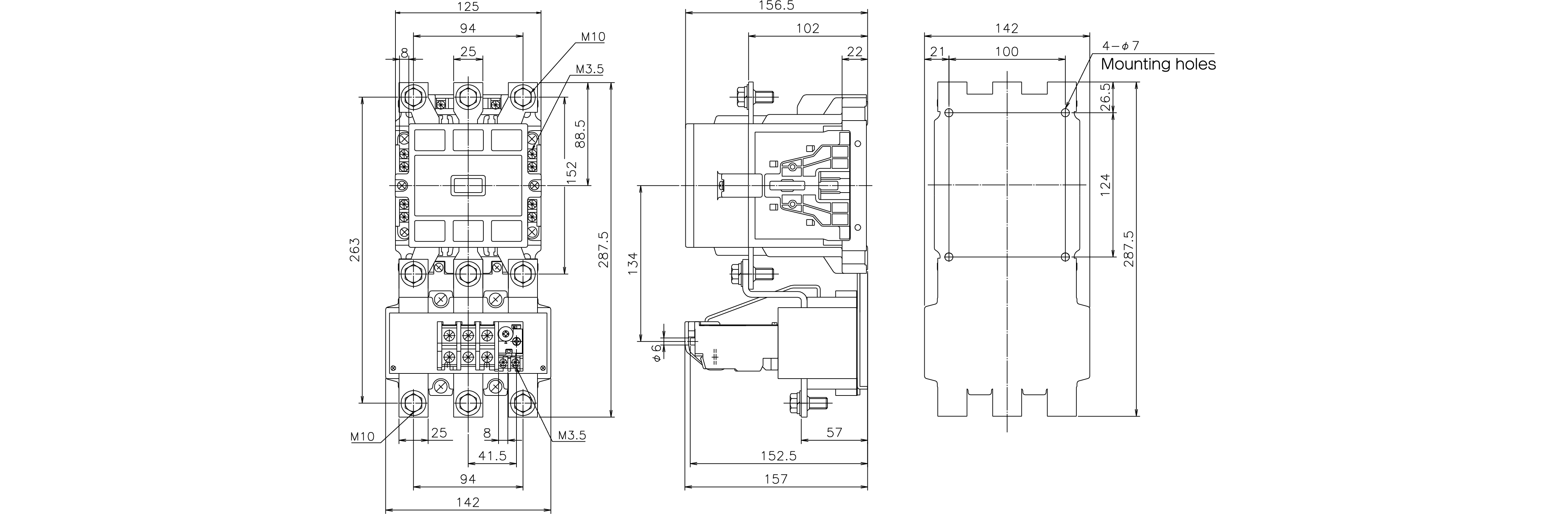

CLK-250HTC
FAQ
- 01
- What standard certifications do the products feature?
Some models feature UL, cULus, and CCC international certification. They also meet JIS and IEC standards.
* cULus: Safety standard certification for Canada and the US from UL
* CCC: Mandatory certification under China GB standards- 02
- Can they be used to replace or upgrade existing products?
In most cases, yes. This may not be possible in certain cases due to the number of auxiliary contacts or special specifications or in cases involving customer-specific products.Product category- TOP
