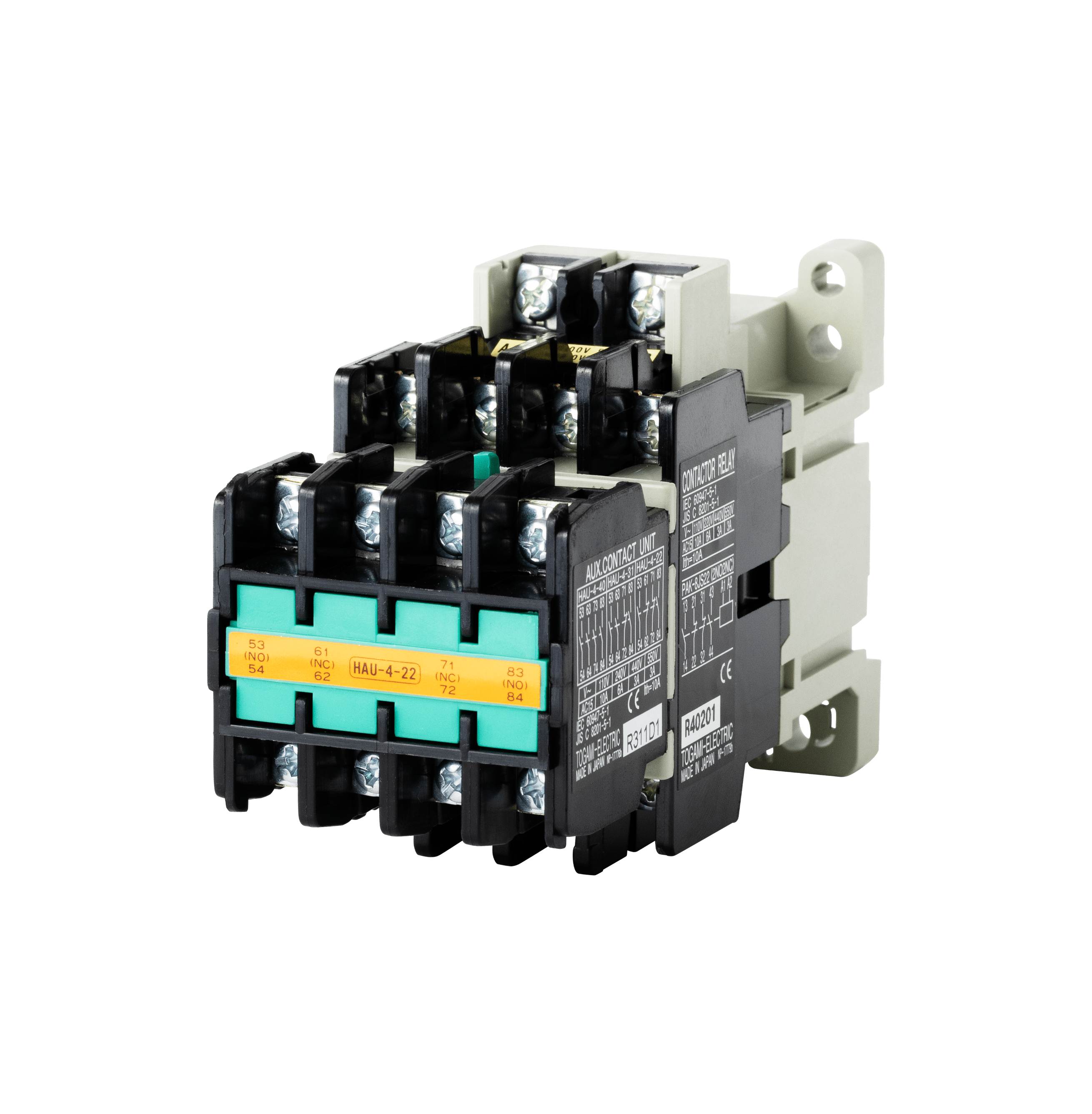

PAK-8JS44
- Togami Electric's Strengths
-
Products
-
Magnetic Contactor / Starter
Togami Electric Mfg. manufacturers standard electromagnetic contactor/starters, economical electromagnetic contactor/starters, DC-operated electromagnetic contactor/starters, and other types of electromagnetic contactor/starters.
-
PCB Relay
Our extensive lineup includes PCB relays used for inrush current prevention circuits and pre-charge circuits.
-
Motor Control Center
These are units for controlling the switching of equipment, including motors and pumps. They feature a compact design for cost-effectiveness and ease of use, allowing flexible custom designs combining the functions required to meet customer needs.
-
Switchboard
We offer an extensive lineup of different distribution boards, including high-voltage distribution boards. Flexible custom designs are possible by combining those functions required to meet customer needs.
-
Explosion-Proof and Corrosion-Resistant Control Equipment
We offer a lineup of explosion-proof control equipment for use in explosion-proof areas, corrosion-resistant control equipment ideal for use in environments where corrosive gases are present.
-
Super Line Checker
This is ideal for checking lines following faults or during maintenance before electrical equipment expansion or modification work. It allows live power lines to be checked by a single operator.
-
Recloser
Togami Electric Mfg. Co., Ltd. designs, manufactures, and supplies Automatic Circuit Reclosers (Fault Clear) for power distribution lines.
-
Ring Main Unit (RMU)
We manufacture Ring Main Units (RMU) to connect, control, and protect different sections of a ring network.
- Company
-
COMPANY
『Make the society,
the Earth,
and the future prosperous!』 -
- Sustainability
- TOP
- Products
- Magnetic Contactor / Starter
- Magnetic Relay
PRODUCTS

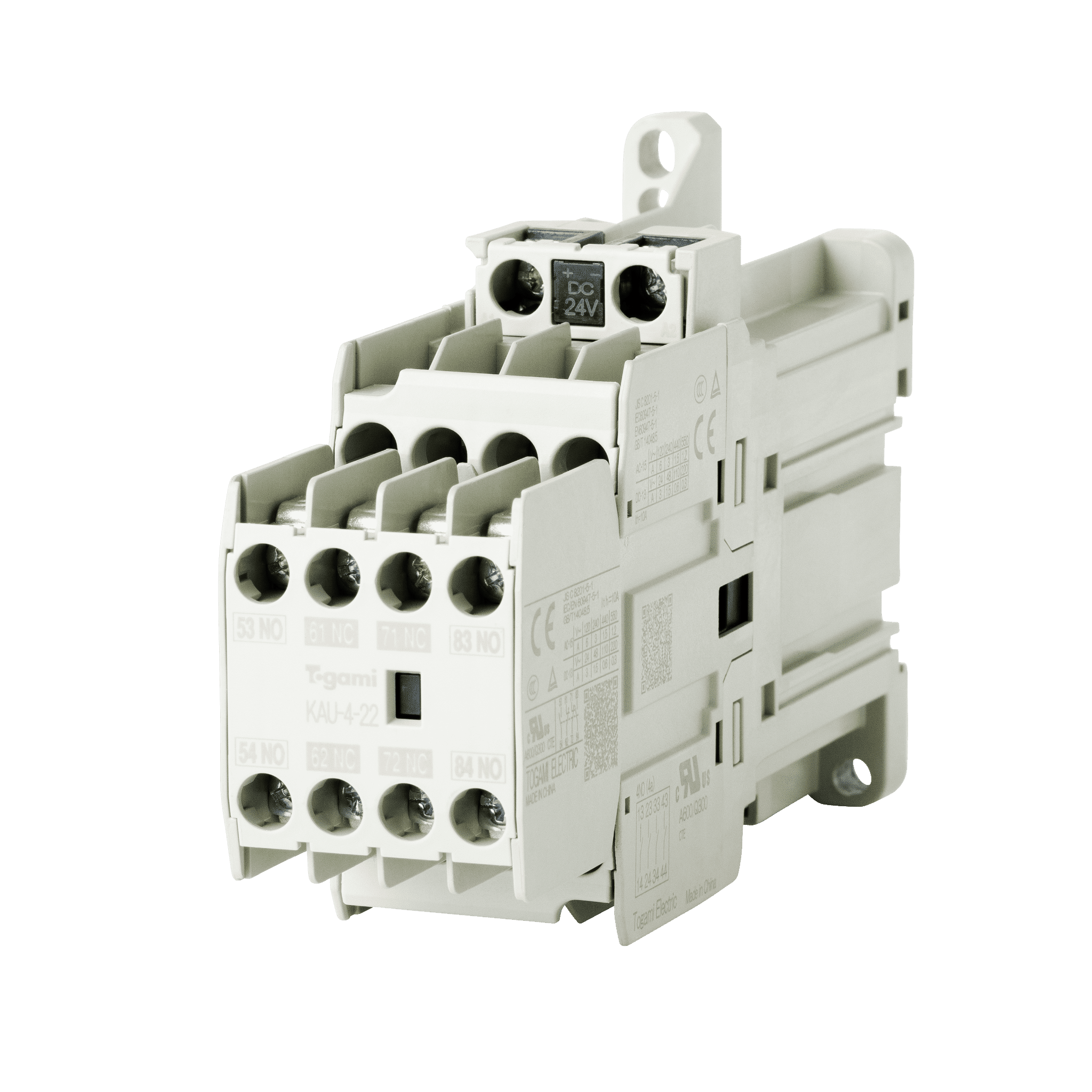

PAK-8KSDC62
Magnetic Relay
Ideal for controlling control circuit input signals.
Features
- The products use a twin-contact configuration for movable contacts, greatly improving contact reliability in low-voltage, low-current circuits.
- Double-gap contacts improve breaking performance.
Types
■AC operational magnetic relay
■DC operational magnetic relay
Specifications
PAK-8JS

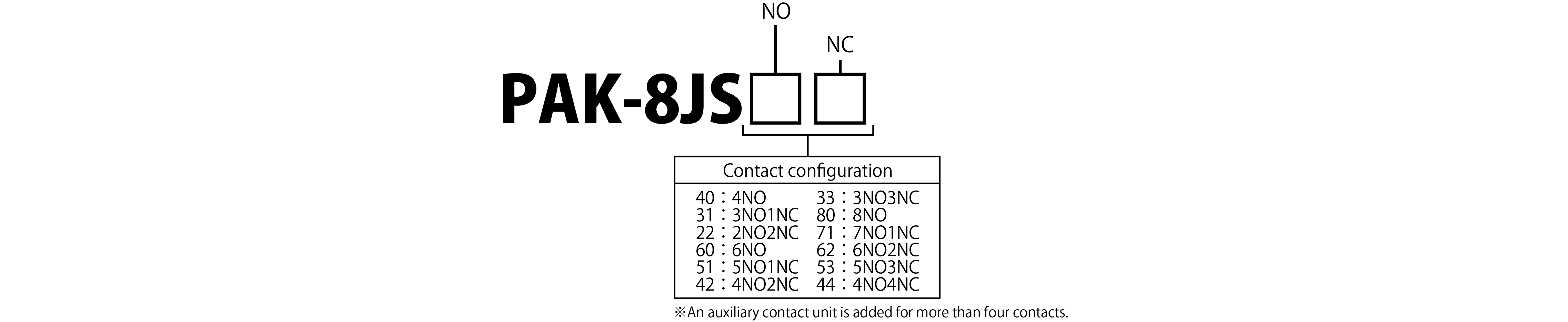

Number of contacts 4 6 8 Contact constitution 4NO・3NO1NC・2NO2NC 6NO・5NO1NC・4NO2NC・3NO3NC 8NO・7NO1NC・6NO2NC・5NO3NC・4NO4NC Rated continuous current 10 A AC Performances IEC 60947-5-1 AC-15※ AC-12※ JIS C 8201-5-1 Rated operating current 106operations 24 V 6 A 6 A 48 V 6 A 6 A 110 V 6 A 6 A 240 V 4 A 5 A 440 V 2 A 4 A 550 V 2 A 3 A 5×105operations 24 V 10 A 10 A 48 V 10 A 10 A 110 V 10 A 10 A 240 V 6 A 6 A 440 V 3 A 5 A 550 V 3 A 4 A DC Performances IEC 60947-5-1 DC-13※ DC-12※ JIS C 8201-5-1 Rated operating current 106operations 24 V 7 A 10 A 48 V 1.4 A 10 A 110 V 0.7 A 7 A 220 V 0.18 A 0.8 A 5×105operations 24 V 10 A 10 A 48 V 2 A 10 A 110 V 1 A 10 A 220 V 0.25 A 1.2 A Mechanical life 5×106operations Min. operating voltage/current 24 V,10 mA DIN rail mounting 〇 PAK-8KSDC

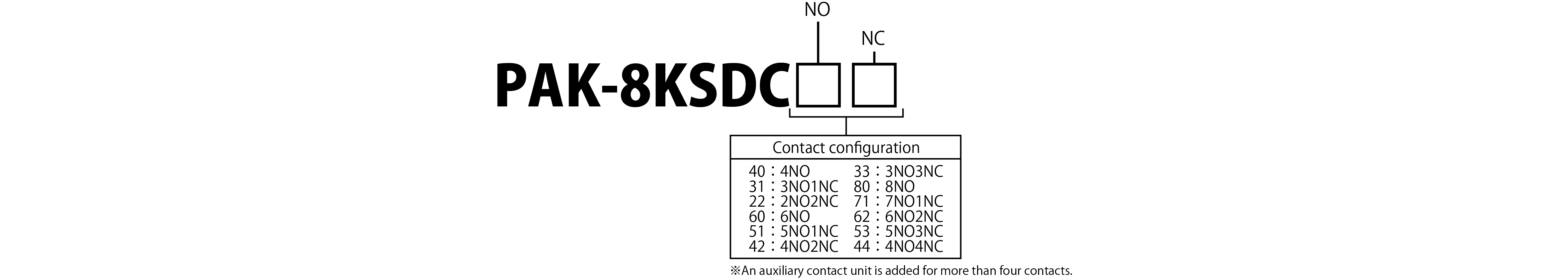

Number of contacts 4 6 8 Contact constitution 4NO・3NO1NC・2NO2NC 6NO・5NO1NC・4NO2NC・3NO3NC 8NO・7NO1NC・6NO2NC・5NO3NC・4No4NC Rated continuous current 10 A AC Performances IEC 60947-5-1 AC-15※ JIS C 8201-5-1 Rated operating current 120 V 6 A 240 V 3 A 440 V 1.5 A 550 V 1.2 A DC Performances IEC 60947-5-1 DC-13※ JIS C 8201-5-1 Rated operating current 24 V 3 A 48 V 1.5 A 110 V 0.6 A 220 V 0.3 A Mechanical life 5×106operations Min. operating voltage/current 5 V,3 mA DIN rail mounting 〇
※About load types

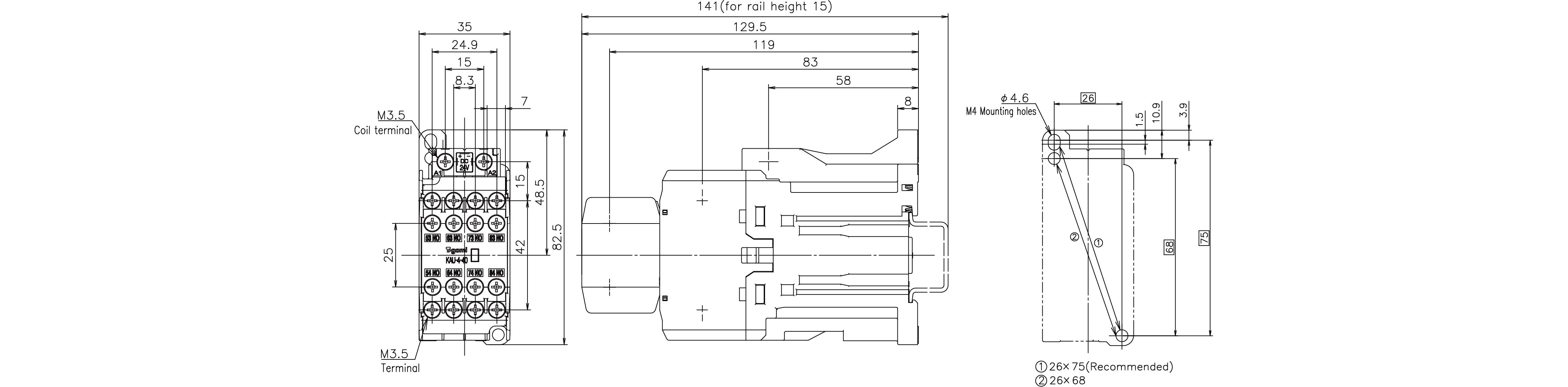

Current Classification Usage example AC AC-12 Control of resistive loads and semiconductor loads isolated by photocouplers AC-15 Electromagnetic load (＞72 VA) control DC DC-12 Control of resistive loads and semiconductor loads isolated by photocouplers DC-13 Electromagnetic load control Dimensions

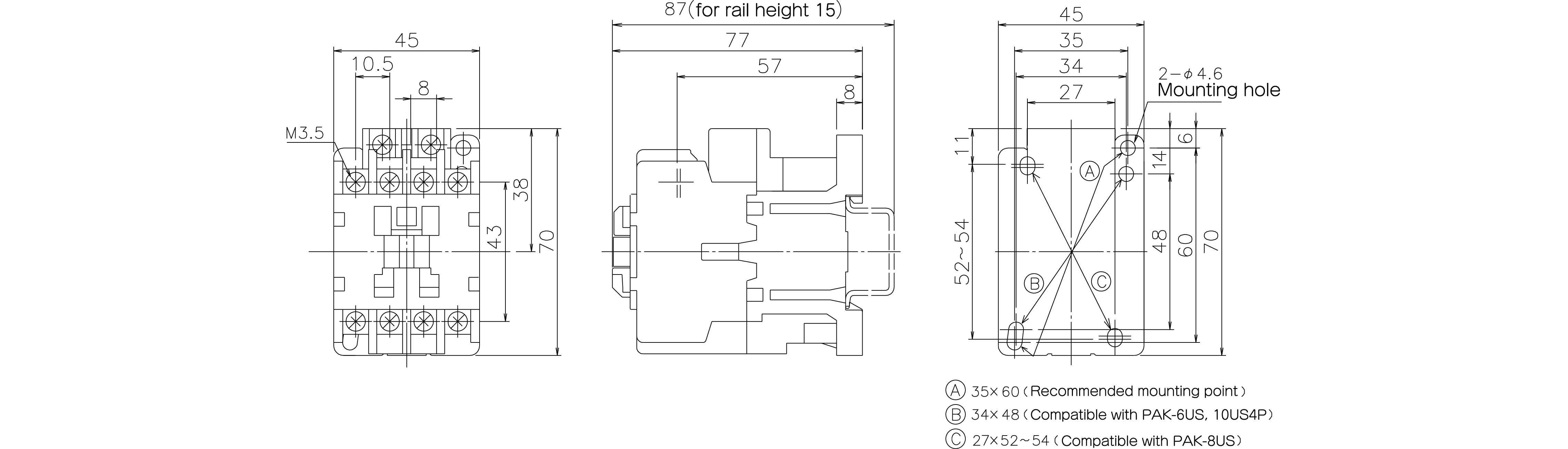

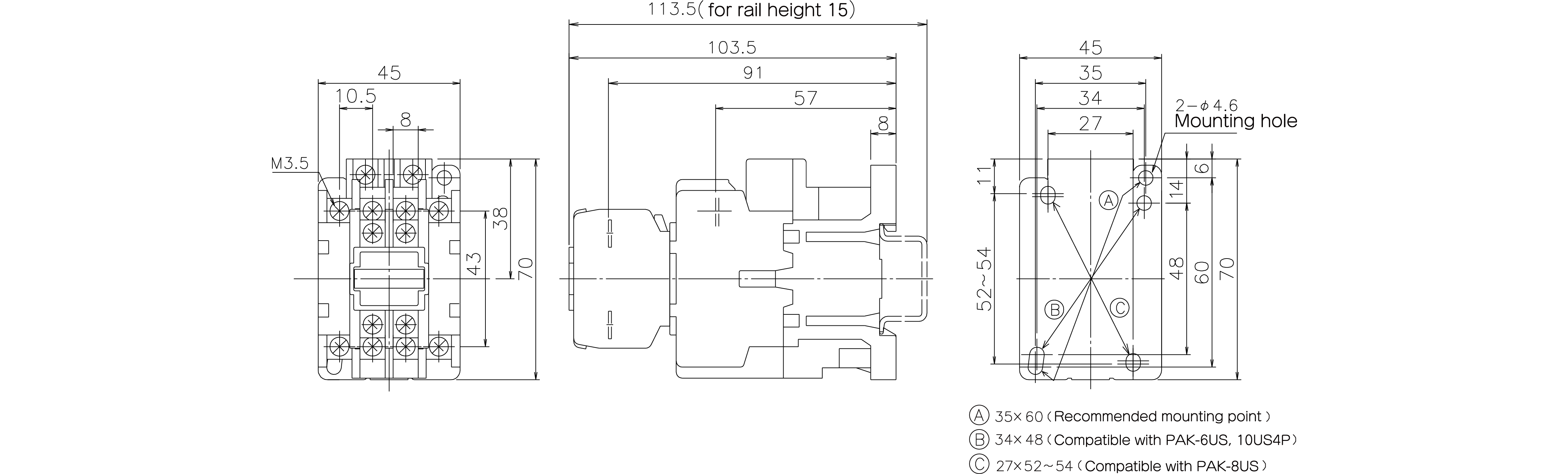

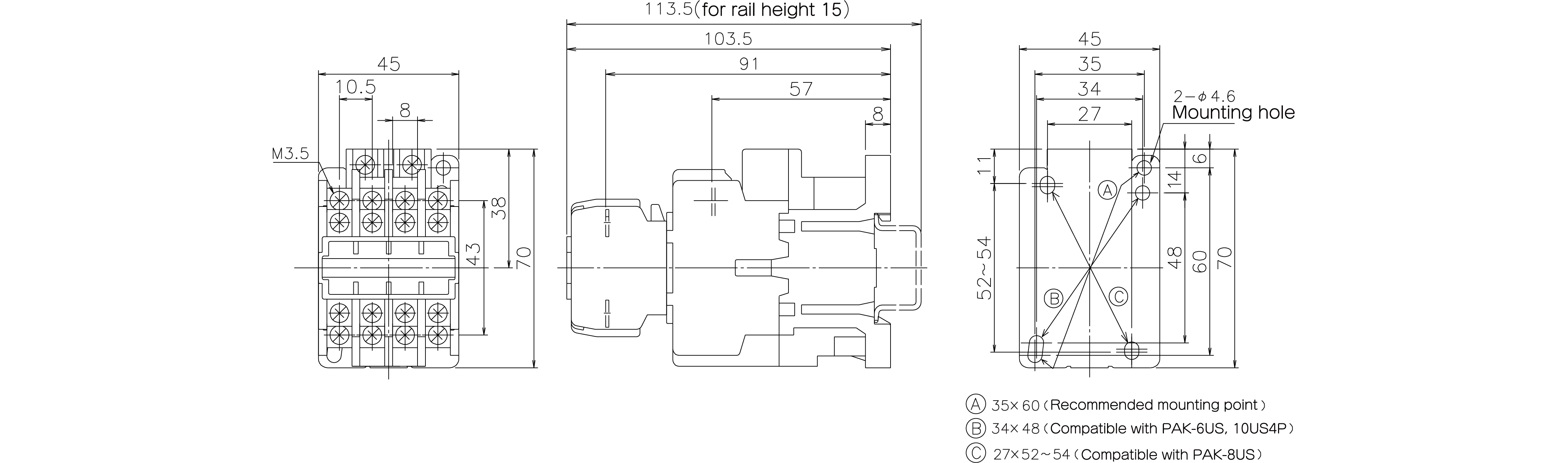

PAK-8JS

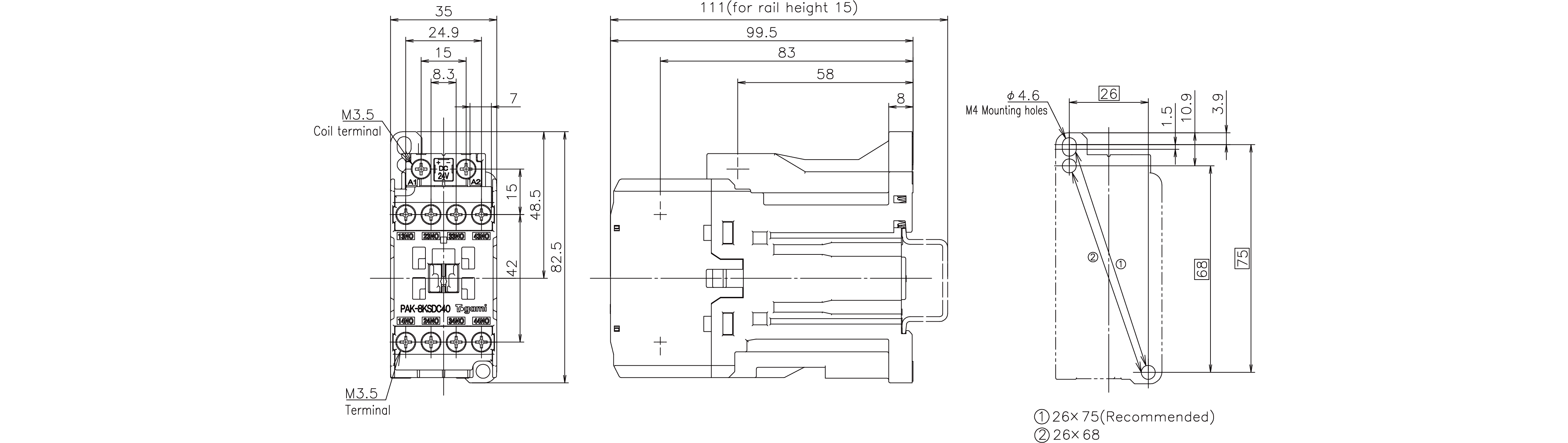

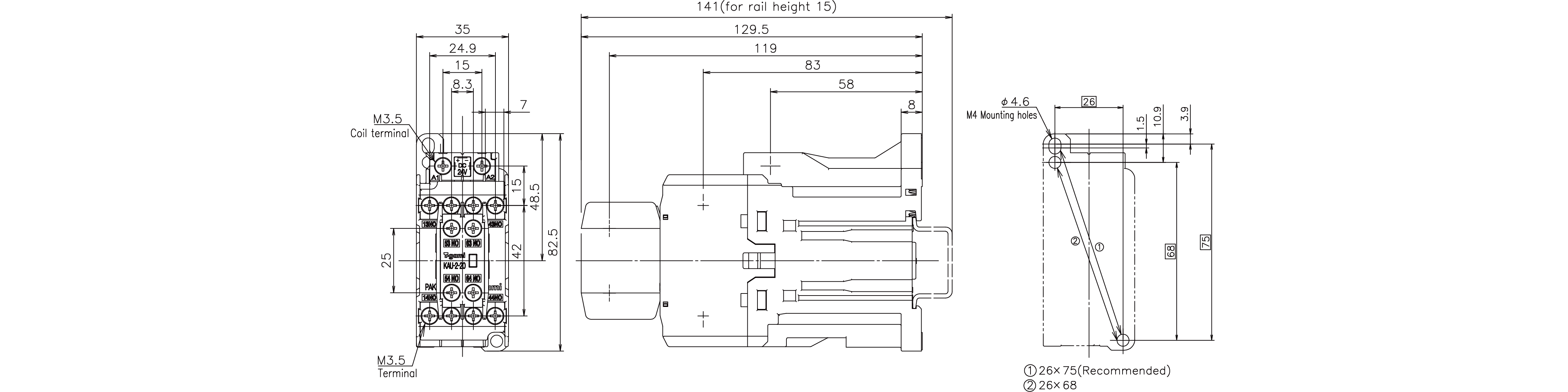

PAK-8KSDC
