Star-Delta Starters
Automatic reduced-voltage starters that limit motor starting current and torque to one-third, reducing the shock applied to the power supply and load.
Features
- An extensive lineup is available, including 2-contactor types, 3-contactor types, and models with or without case covers.
Specifications
■SDH:2-contactor typeModel number Rated capacity Contactor model number Thermal overload relay Timer used Enclosed type Open type 220 V 440 V MD MS OCR TM SDH-25HMC SDH-25HTC 5.5 kW 5.5 kW PAK-21J PAK-12J31 TJ-35 H3CR-G8EL SDH-35HMC SDH-35HTC 7.5 kW 11 kW PAK-26J PAK-21J SDH-50HMC SDH-50HTC 11 kW 19 kW PAK-35J PAK-26J SDH-80HMC SDH-80HTC 19 kW 26 kW PAK-50H PAK-35J TJ-50 SDH-100HMC SDH-100HTC 26 kW 37 kW PAK-65H PAK-50H SDH-150HMC SDH-150HTC 40 kW 55 kW PAK-100H PAK-65H TJ-125 SDH-220HMC SDH-220HTC 55 kW 90 kW PAK-150H PAK-100H SDH-300HMC SDH-300HTC 75 kW 150 kW PAK-220H PAK-125H TJ-35C+CT
■SDH3:3-contactor typeModel number Rated capacity Contactor model number Thermal overload relay Timer used Enclosed type Open type 220 V 440 V M MD MS OCR TM SDH3-25HMC SDH3-25HTC 5.5 kW 5.5 kW PAK-21J PAK-21J TJ-35 H3CR-G8EL SDH3-35HMC SDH3-35HTC 7.5 kW 11 kW PAK-26J PAK-21J SDH3-50HMC SDH3-50HTC 11 kW 19 kW PAK-35J SDH3-80HMC SDH3-80HTC 19 kW 26 kW PAK-50H PAK-26J TJ-50 SDH3-100HMC SDH3-100HTC 26 kW 37 kW PAK-65H PAK-35J SDH3-150HMC SDH3-150HTC 40 kW 55 kW PAK-100H PAK-50H TJ-125 SDH3-220HMC SDH3-220HTC 55 kW 90 kW PAK-150H PAK-65H SDH3-300HMC SDH3-300HTC 75 kW 150 kW PAK-220H PAK-100H TJ-35C+CT Dimensions(Open type)

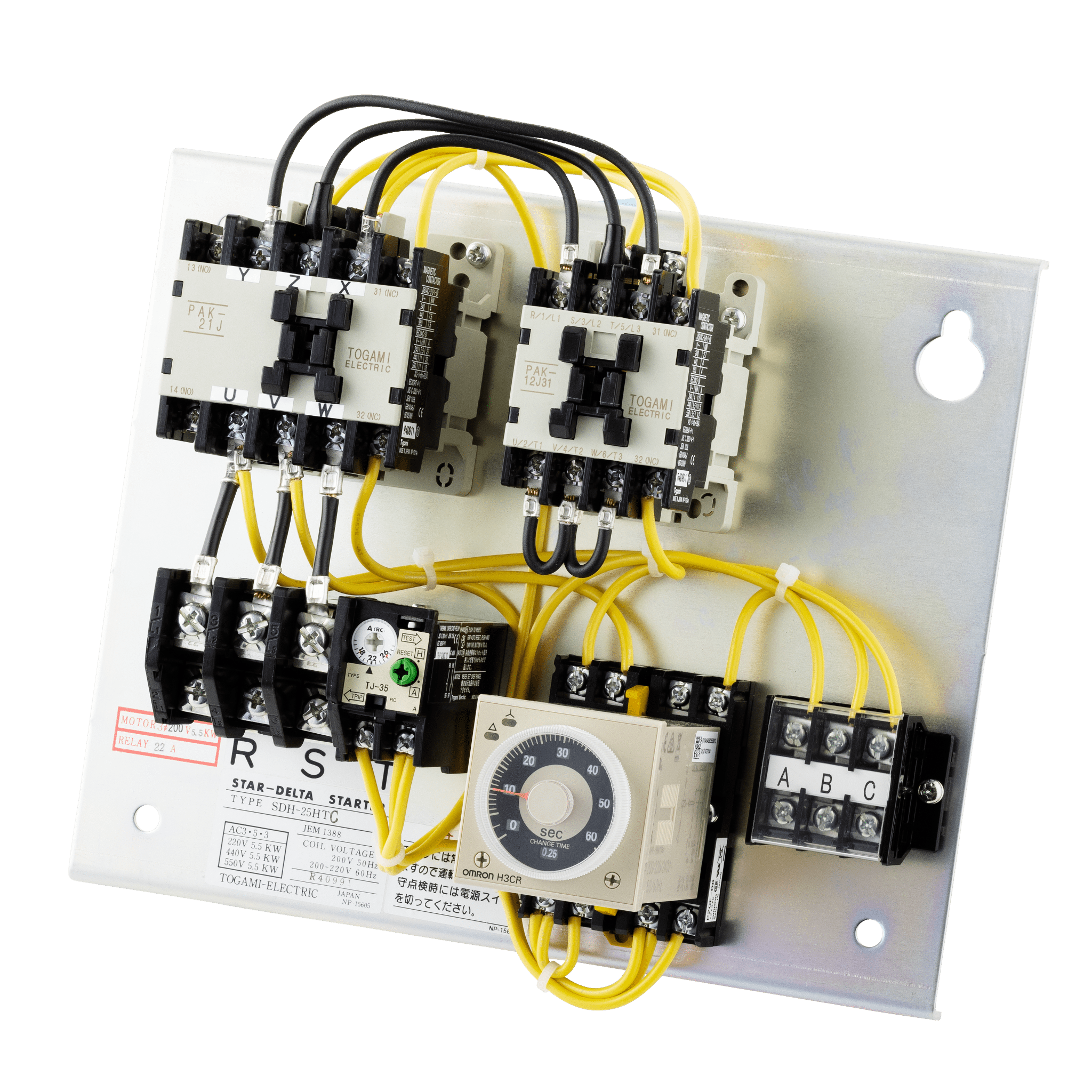

■SDH:2-contactor typeSDH-25HTC
SDH-35HTC
SDH-50HTC
SDH-80HTC
SDH-100HTC
SDH-150HTC
SDH-220HTC
SDH-300HTC
■SDH3:3-contactor typeSDH3-25HTC
SDH3-35HTC
SDH3-50HTC
SDH3-80HTC
SDH3-100HTC
SDH3-150HTC
SDH3-220HTC
SDH3-300HTC

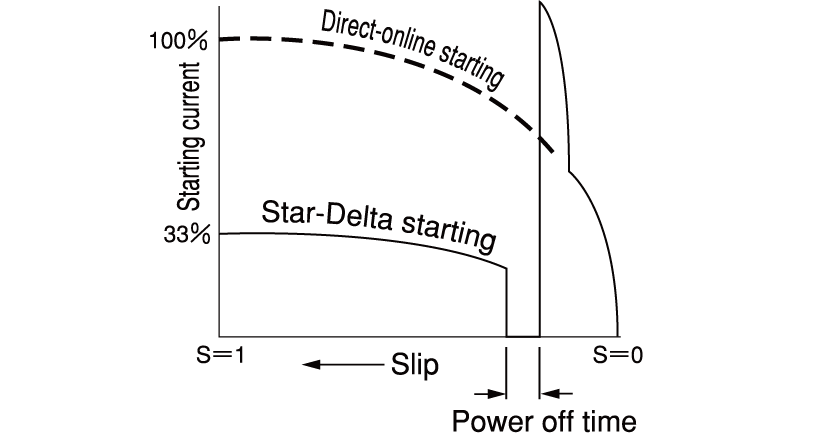

Starting Current Characteristics
In star-delta starters, the contactor recloses at the changeover from star operation to delta operation. At this time, a large transient current greater than the direct-online starting current of motor flows for a moment for 2-contactor type and 3-contactor type.
SDH SDH3 Magnetic contactor

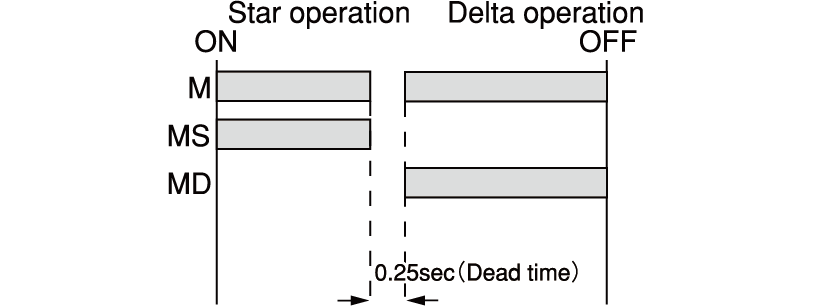

operation chart

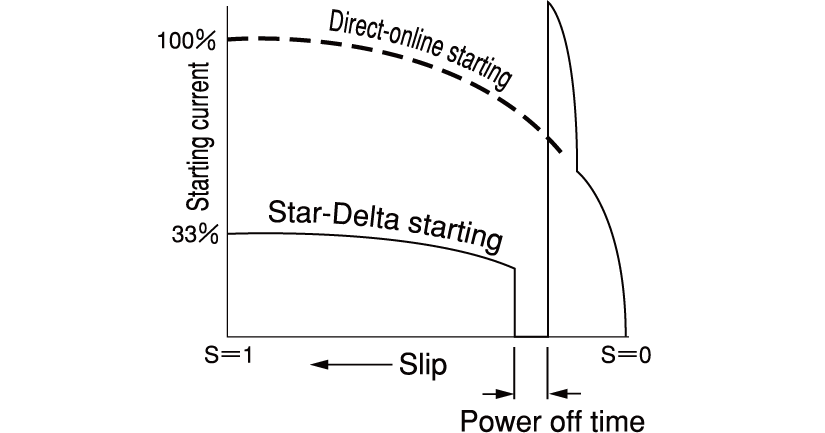

Starting current
Starting torque Starting torque is reduced to approximately 1/3 of the values for direct-online starting. Product category- TOP
