SPLC-B-Y

Cell LineChecker

【Magnetic field mode】

　・Identification of a string configuration

　・Detection of fault modules, clusters, and cells

　・Detection of the fault bypass diode

【Electric field mode】

　・Detection of the broken/disconnected wire between modules

　・Detection of the connecter between modules having fault continuity

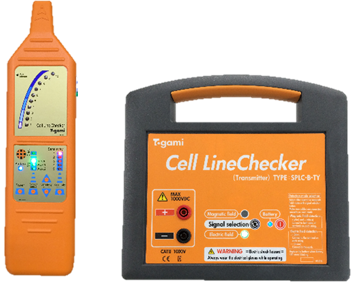

〇Receiver

Receiver sensitivity level	Select from 5 level. Each level has 5 level adjust from -20％ to +20%.
Receiver display	Receiving level display: Flashing 10 green LEDs Alarm sound synchronized with LED flash
Rated power voltage	9.0V dc(Range:6.5 to 9.0Vdc)^※ ※One 9V battery is used.(Manganese or alkaline)
Dimensions	235（H）×60（W）×30（D）（mm）
Weight	Approx.160g(with battery)
Other functions	Auto-power off and Silent mode

〇Transmitter

Applicable voltage range	Magnetic field mode　 DC15.0V～DC1000.0V Electric field mode　　　　　0V～DC1000.0V （0V for connection fault detection）
Detecting method	Current consumption(Magnetic field mode) Signal input(Electric field mode)
Signal frequency	5kHz
Display	Green or Blue LED by flashing or ON
Rated power voltage	9.0V dc(Range:6.5 to 9.0Vdc)^※ ※One 9V battery is used.(Manganese or alkaline)
Dimensions	153（H）×120（W）×50（D）（mm）
Weight	Approx.290g(with battery)
Other functions	Automatic power off

Q1. Please tell me the detectable distance.

A1. 【Distance between transmitter and receiver】
　　　It's about 1km in magnetic field mode andabout 150m in electric field mode.

　　【Distance between modules and receiver】
　　　It's about 1m.

Q2. Do we need to calibrate?

A2. Cell LineChecker is a detector, not a measuring instrument, so calibration is not required.

Q3. Is it possible to detect even in places where the interconnector isn't visible?

A3. It detectable without any problem. Detection can be conducted on the rear surface of panels.

Q4. What's the rod sensor?

A4. Attach the receiver and use it for module detect at a distance. The length of the rod is 2m.

Item	Condition of use
Environment	Avoid using in the rain
Temperature range	－10℃ to 50℃(14℉ to 122℉)
Humidity range	Relative humidity: 80% or less (No condensation)
Storage temperature range	－20℃ to 60℃(－4℉ to 140℉)
