- Magnetic Contactor / Starter
- Magnetic Contactor / Starter(AC Operational)
PRODUCTS

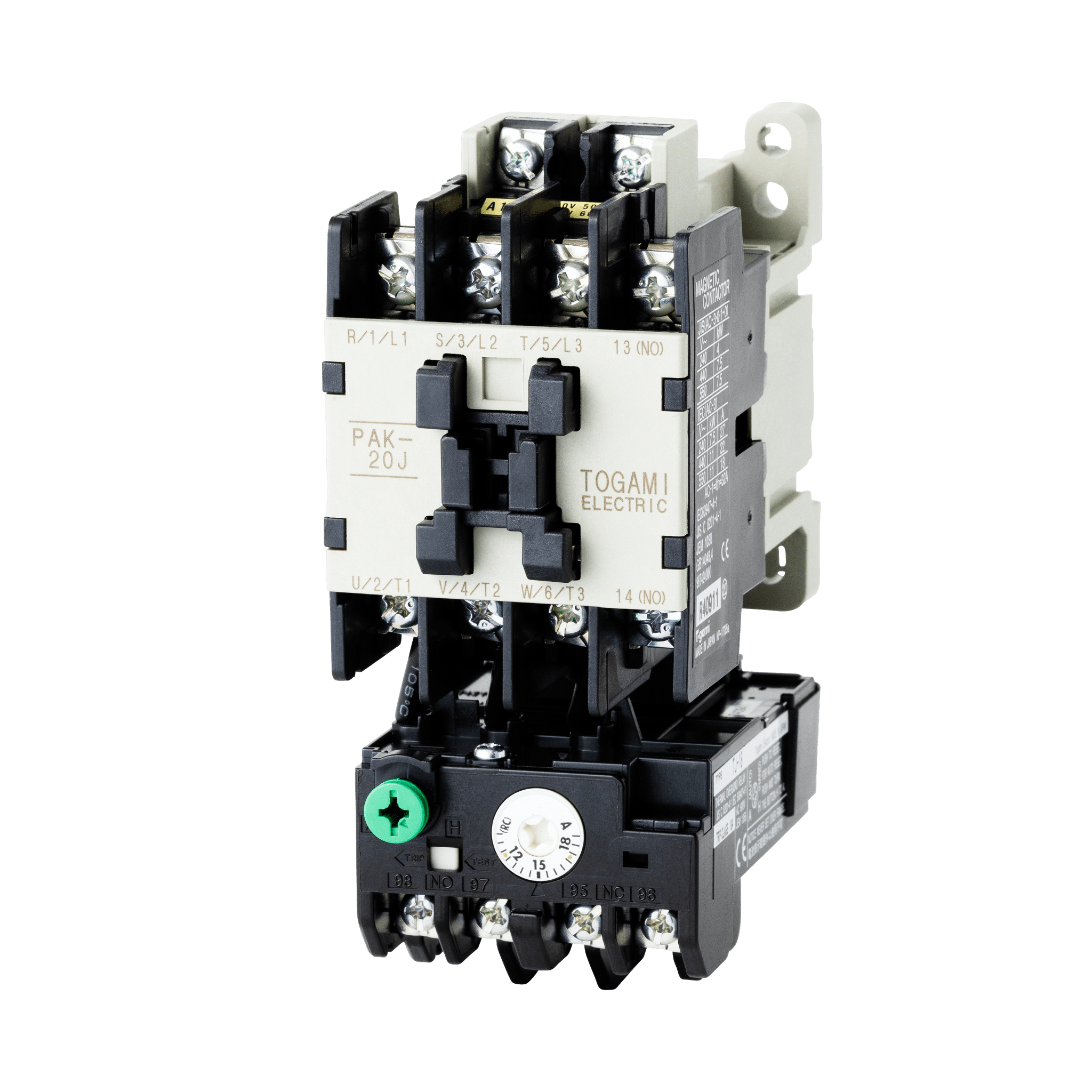

Magnetic Contactor / Starter
AC operationalFor remote, centralized, and automatic control of motor starting and stopping
Features
- Long electrical operating life (AC-3) of 2 million cycles (Models 12J to 35J)
- Twin contacts for increased auxiliary contact reliability. Supports up to 24 VDC, 10 mA. (Models 6JC to 12J, 21J to 800J)
- The arc-extinguishing covers can be removed for easy maintenance and inspections of the contacts. (Models 11J to 800J)
- The coil rated voltage can be determined even after mounting in a panel. (Models 6JC to 50J)
- The ambient operating temperature range is −5 °C to 60 °C; the storage ambient temperature range is −20 °C to 70 °C.
- Readily mounts on IEC/DIN 35 mm wide rails (Models 6JC to 50J)
Specifications
※1 Electric durability of AC-1 rating for PAK-800J is 100,000 operations.Model number/ Ratings AC-3 3-phase squirrel-cage AC-1 Resister, Heater Rated Operational Power Rated Operational Current 240 V 440 V 550 V 240 V 440 V 550 V 240 V 440 V 550 V PAK-6JC 1.1 kW 2.2 kW 2.2 kW 6 A 6 A 4.8 A 15 A 15 A 15 A PAK-11J 2.2 kW 3 kW 3 kW 11.1 A 7.5 A 6 A 20 A 20 A 20 A PAK-12J 2.7 kW 4 kW 4 kW 13 A 9 A 7.2 A 26 A 26 A 26 A PAK-20J 4 kW 7.5 kW 7.5 kW 20 A 17 A 13.6 A 32 A 32 A 32 A PAK-21J 4 kW 7.5 kW 7.5 kW 20 A 17 A 13.6 A 32 A 32 A 32 A PAK-26J 5.5 kW 11 kW 11 kW 26 A 25 A 20 A 50 A 50 A 50 A PAK-35J 7.5 kW 15 kW 15 kW 35 A 32 A 26 A 60 A 60 A 60 A PAK-50J 11 kW 22 kW 26 kW 50 A 48 A 45 A 65 A 65 A 65 A PAK-50H 11 kW 22 kW 26 kW 50 A 46 A 45 A 75 A 75 A 75 A PAK-65H 15 kW 30 kW 37 kW 65 A 62 A 60 A 90 A 90 A 90 A PAK-80H 19 kW 37 kW 45 kW 80 A 75 A 72 A 110 A 110 A 110 A PAK-95H 22 kW 45 kW 50 kW 95 A 90 A 80 A 110 A 110 A 110 A PAK-100H 25 kW 45 kW 55 kW 100 A 90 A 90 A 150 A 150 A 150 A PAK-125H 30 kW 55 kW 70 kW 125 A 110 A 110 A 170 A 170 A 170 A PAK-150H 40 kW 75 kW 75 kW 150 A 150 A 120 A 220 A 220 A 220 A PAK-220H 60 kW 90 kW 90 kW 220 A 180 A 150 A 275 A 275 A 275 A PAK-300J 75 kW 150 kW 160 kW 300 A 300 A 250 A 350 A 350 A － PAK-400J 110 kW 200 kW 200 kW 400 A 400 A 350 A 420 A 420 A － PAK-600J 150 kW 300 kW 300 kW 600 A 600 A 500 A 600 A 600 A － PAK-800J 200 kW
(AC-2)400 kW
(AC-2)－ 800 A
(AC-2)800 A
(AC-2)－ 800 A※1 800 A※1 － Dimensions

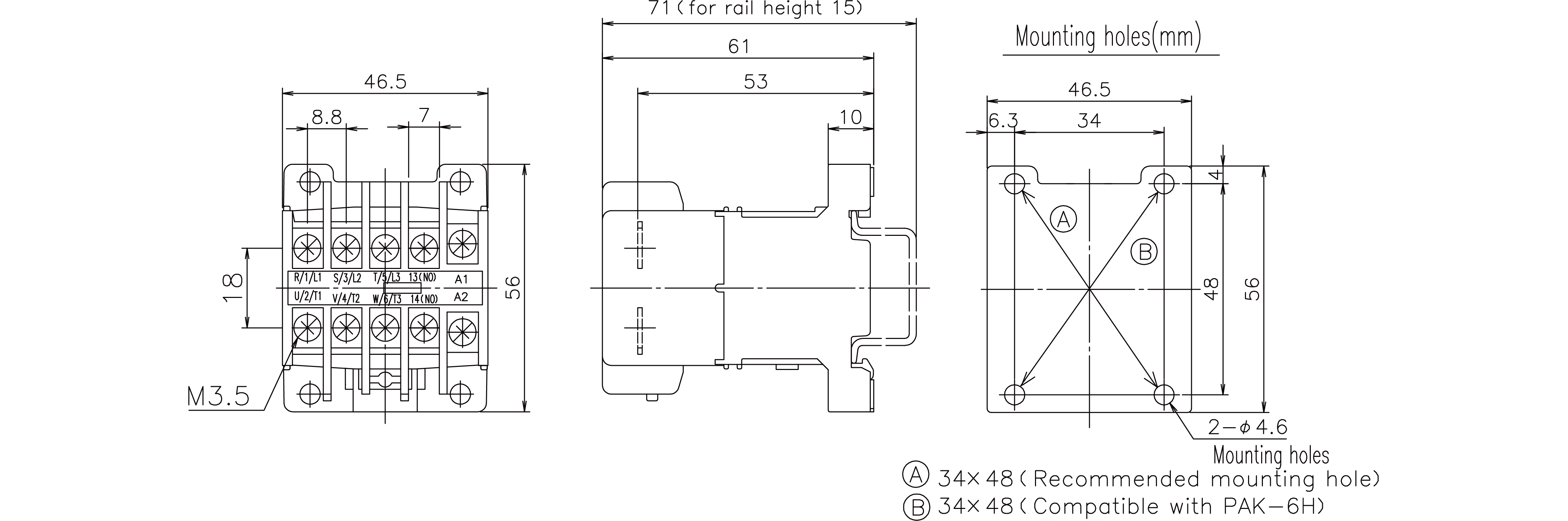

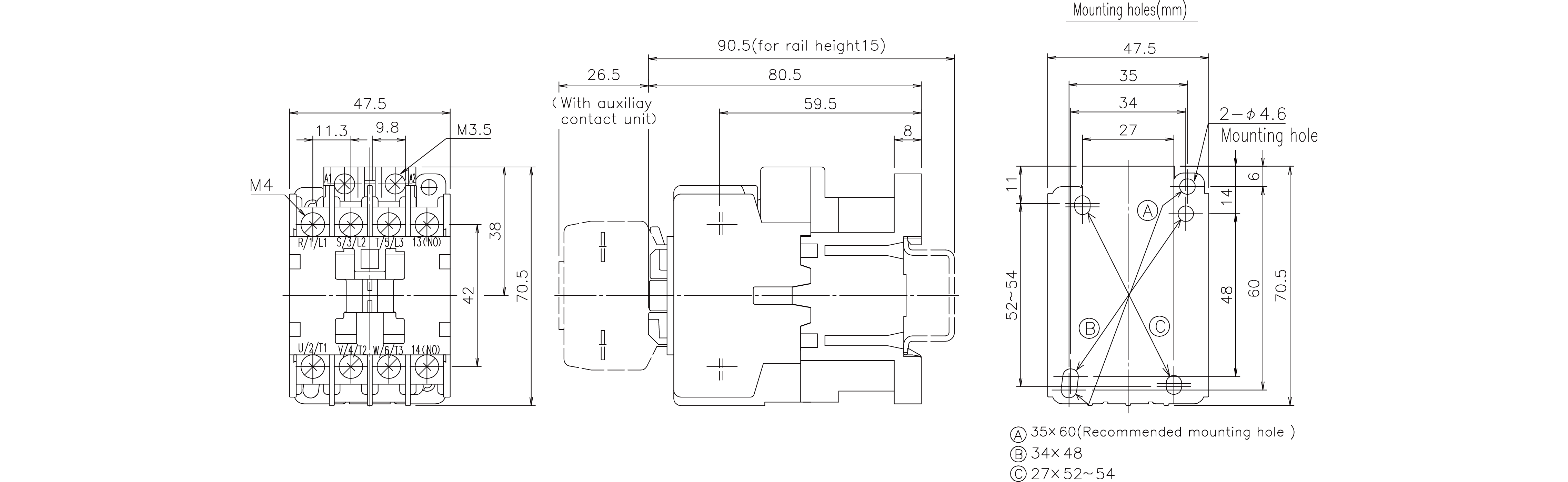

■Magnetic contactorPAK-6JC

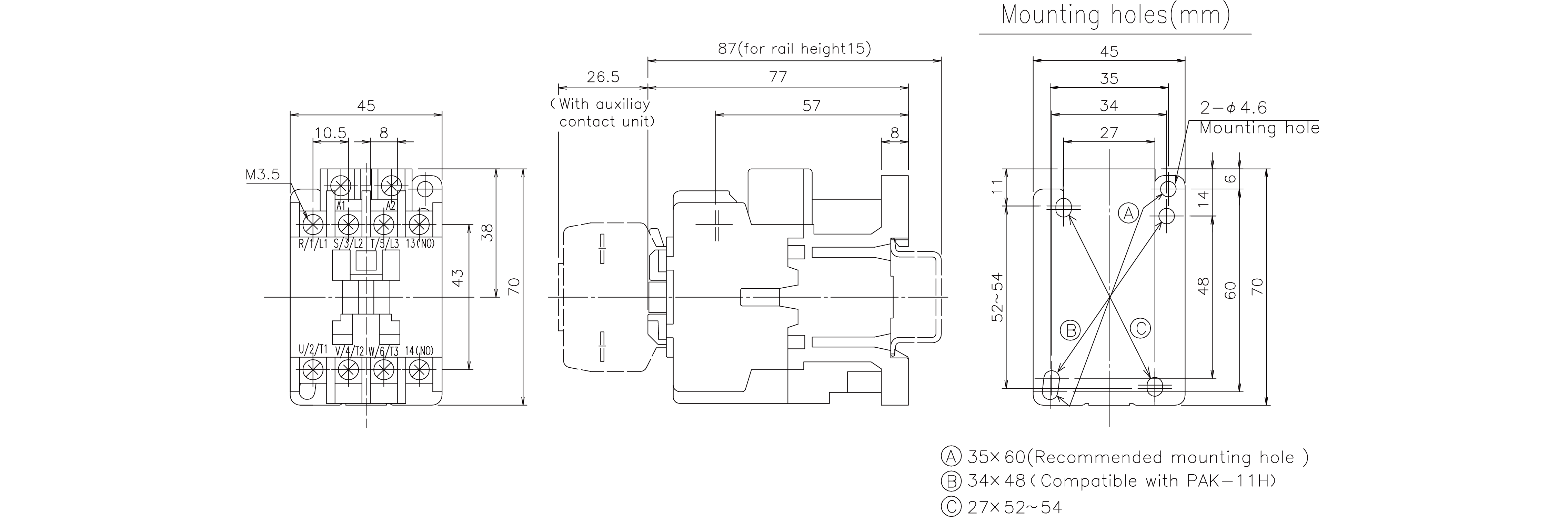

PAK-11J・12J
PAK-20J

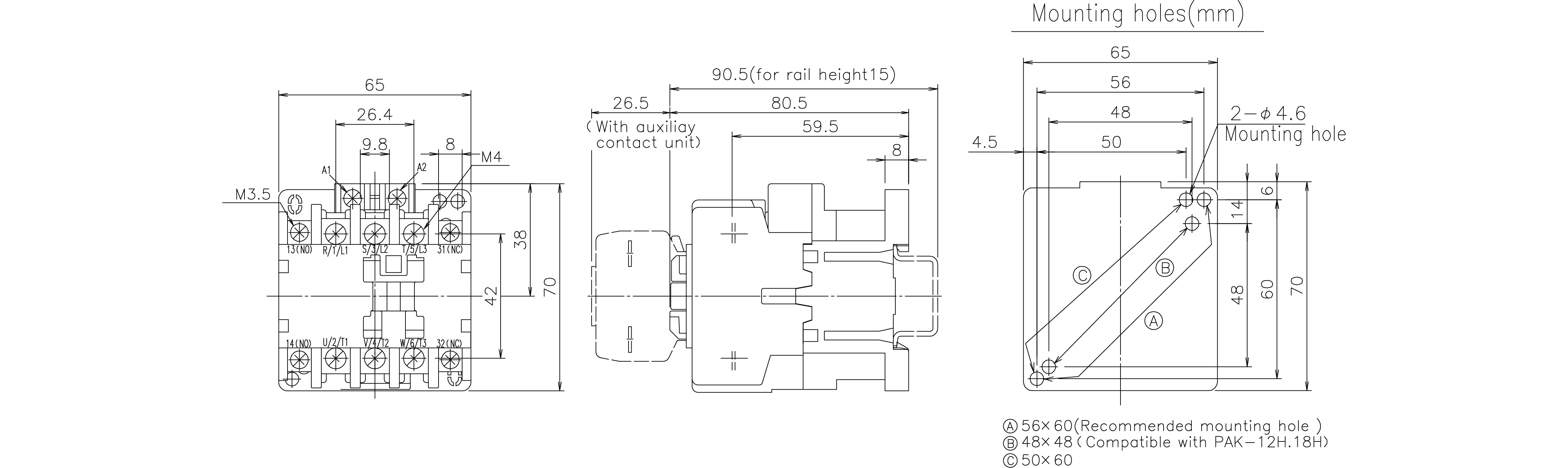

PAK-21J
PAK-26J・35J・50J

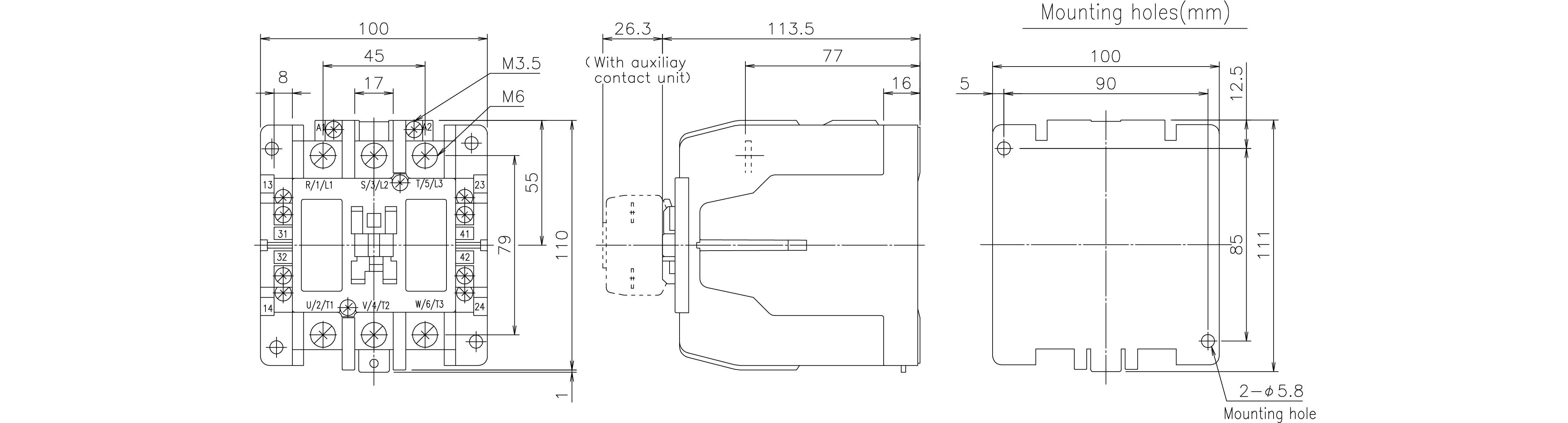

PAK-50H・65H・80H・95H

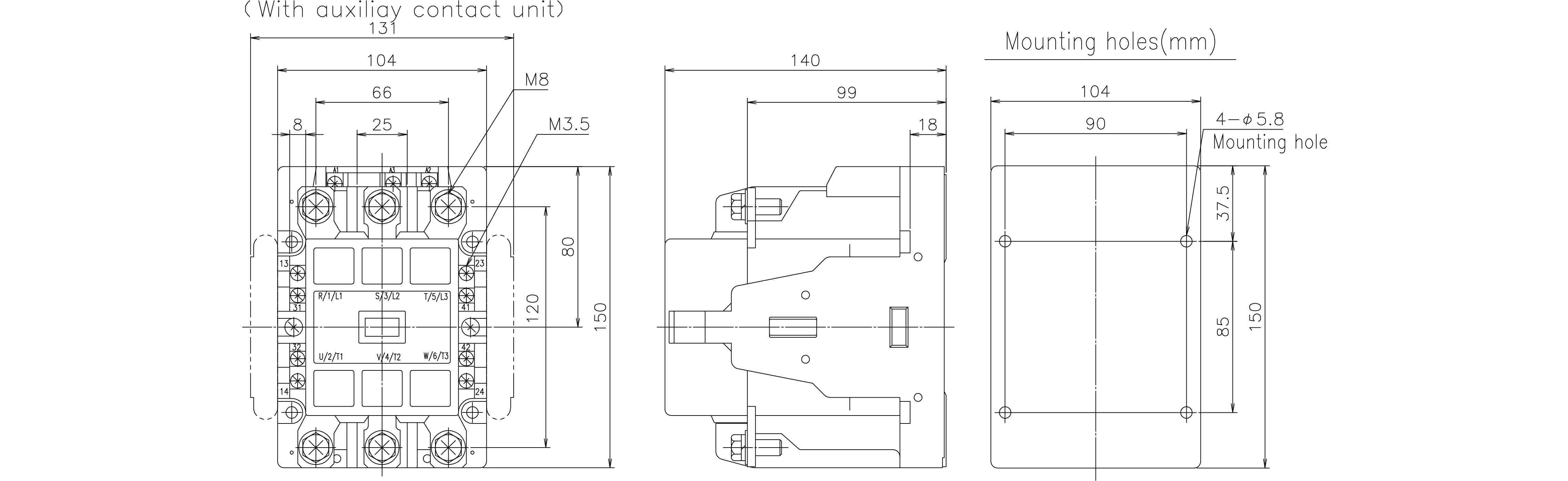

PAK-100H・125H
PAK-150H

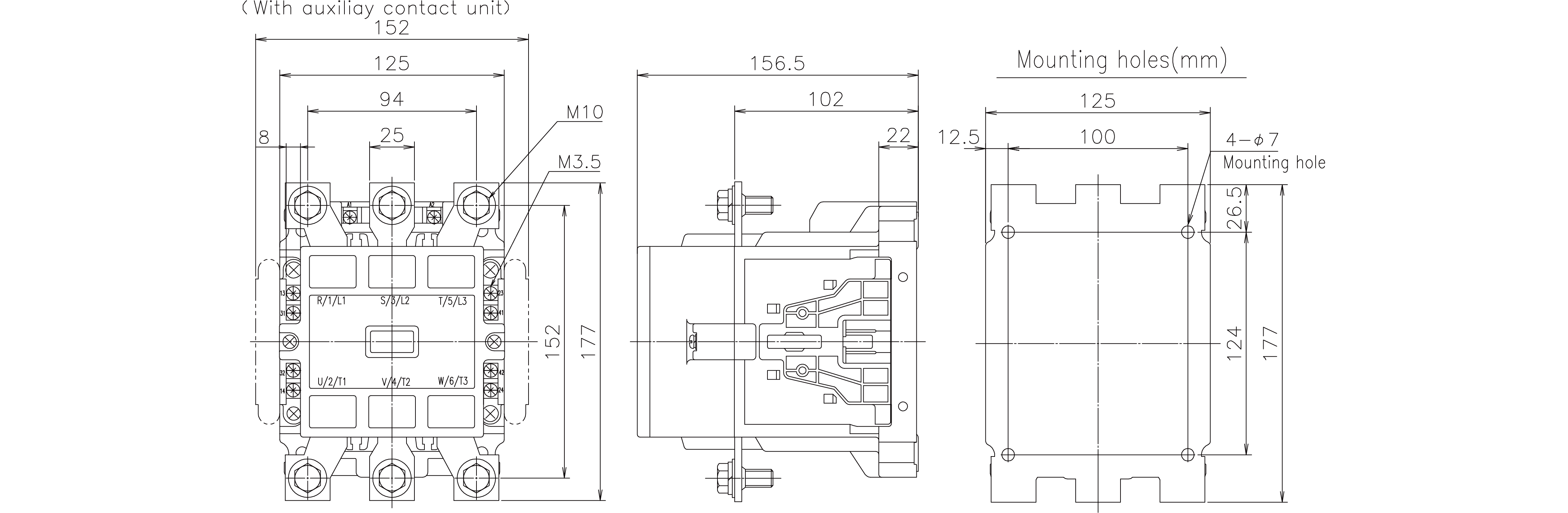

PAK-220H
PAK-300J・400J

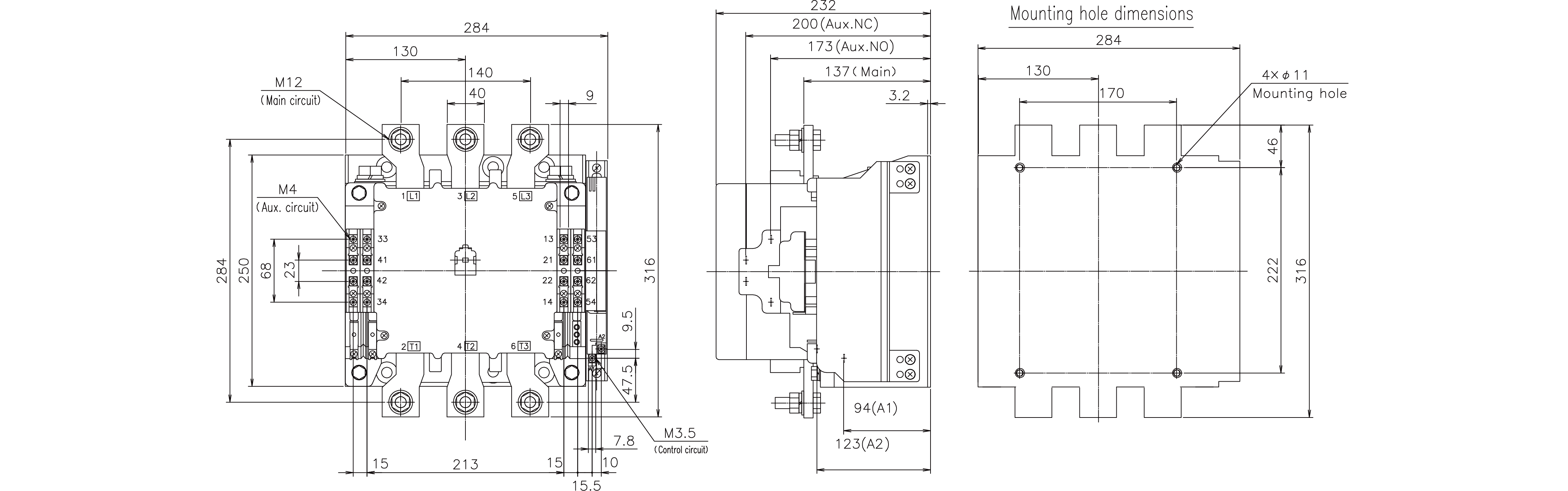

PAK-600J

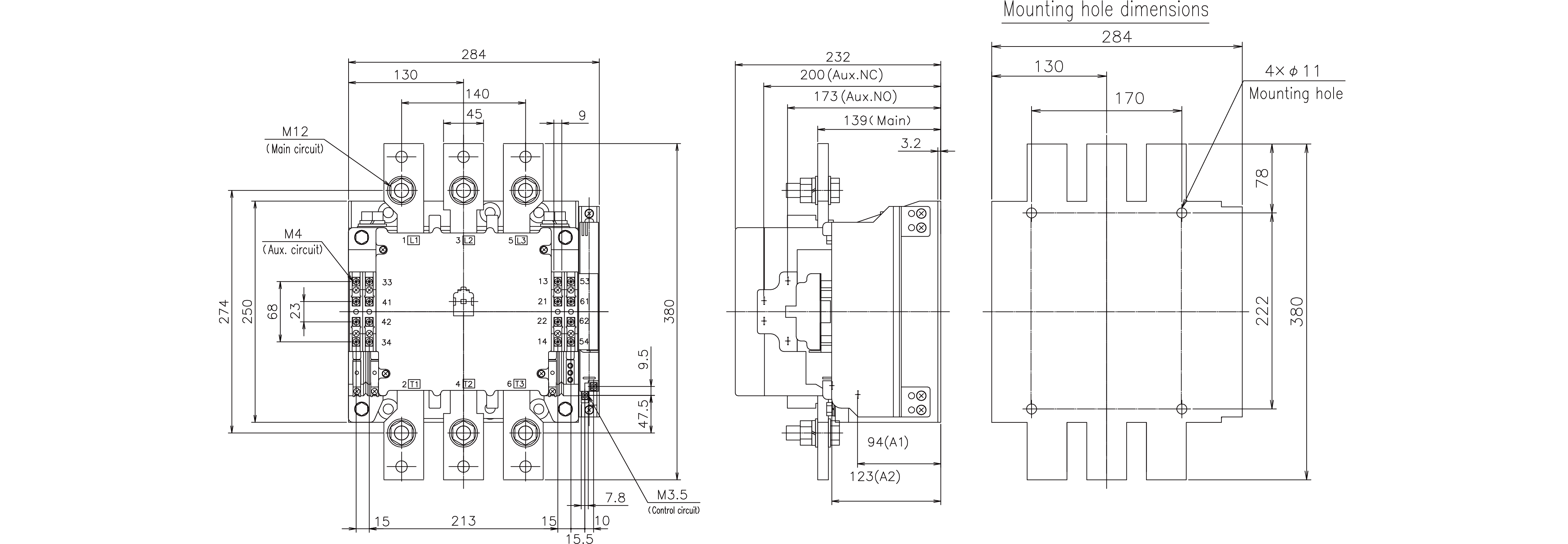

PAK-800J

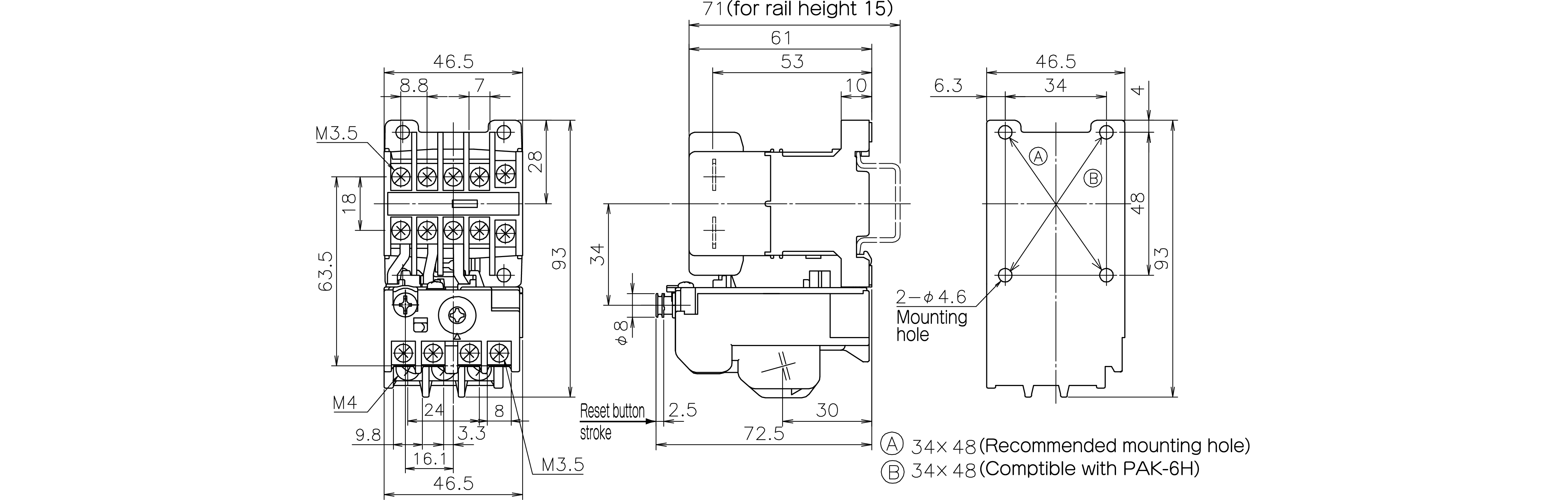

■Magnetic StarterPAK-6JTC

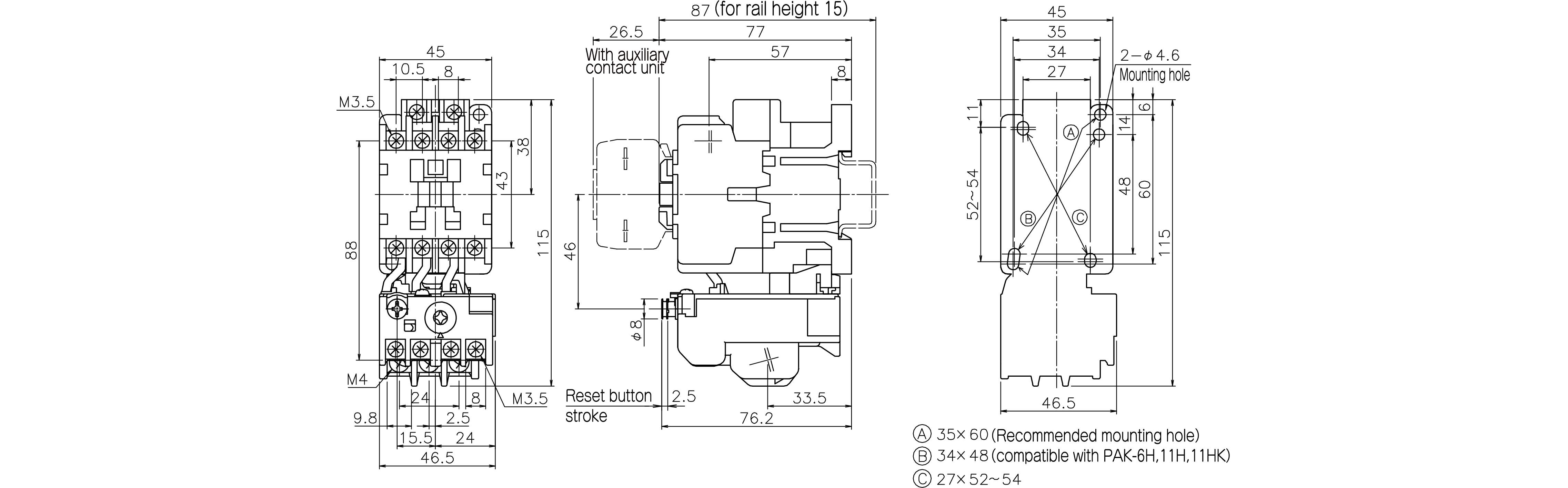

PAK-11JTC・12JTC

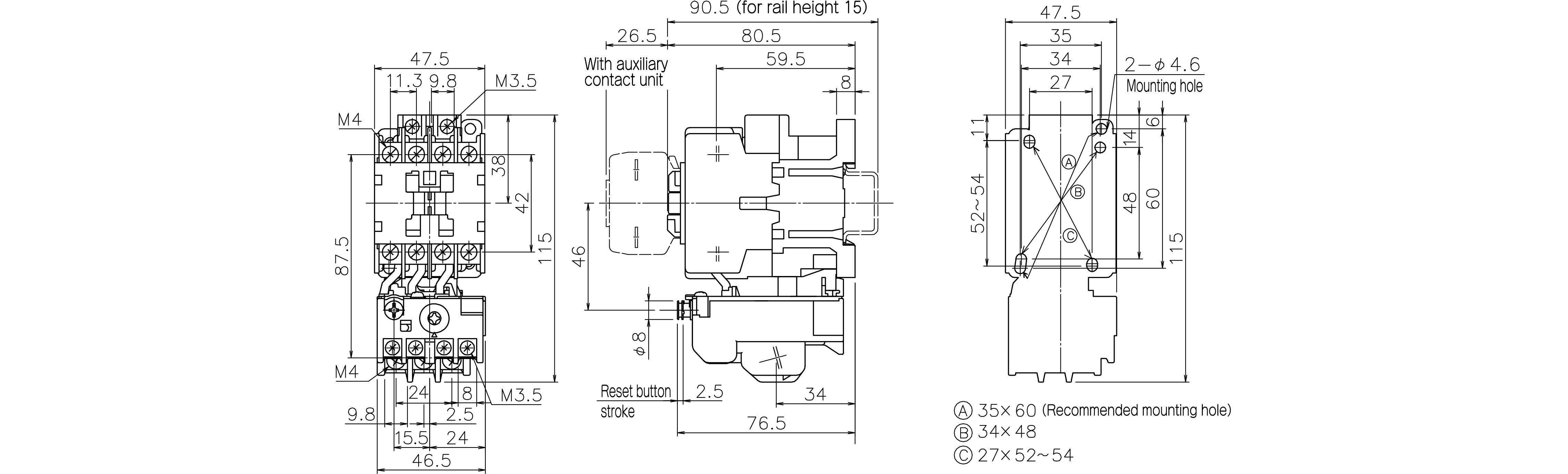

PAK-20JTC

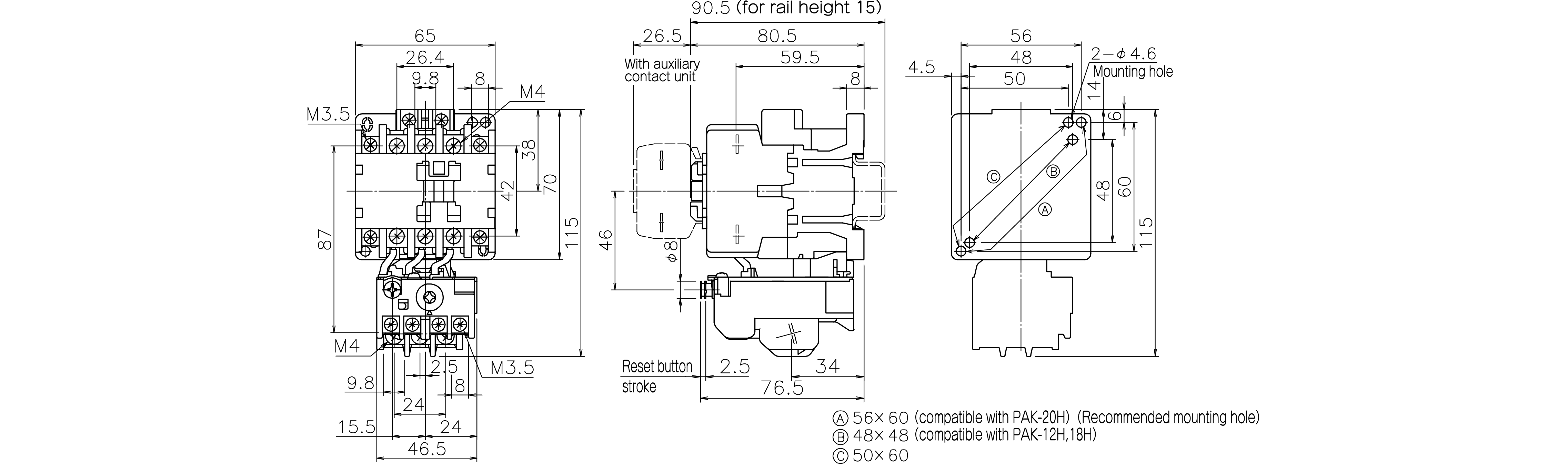

PAK-21JTC

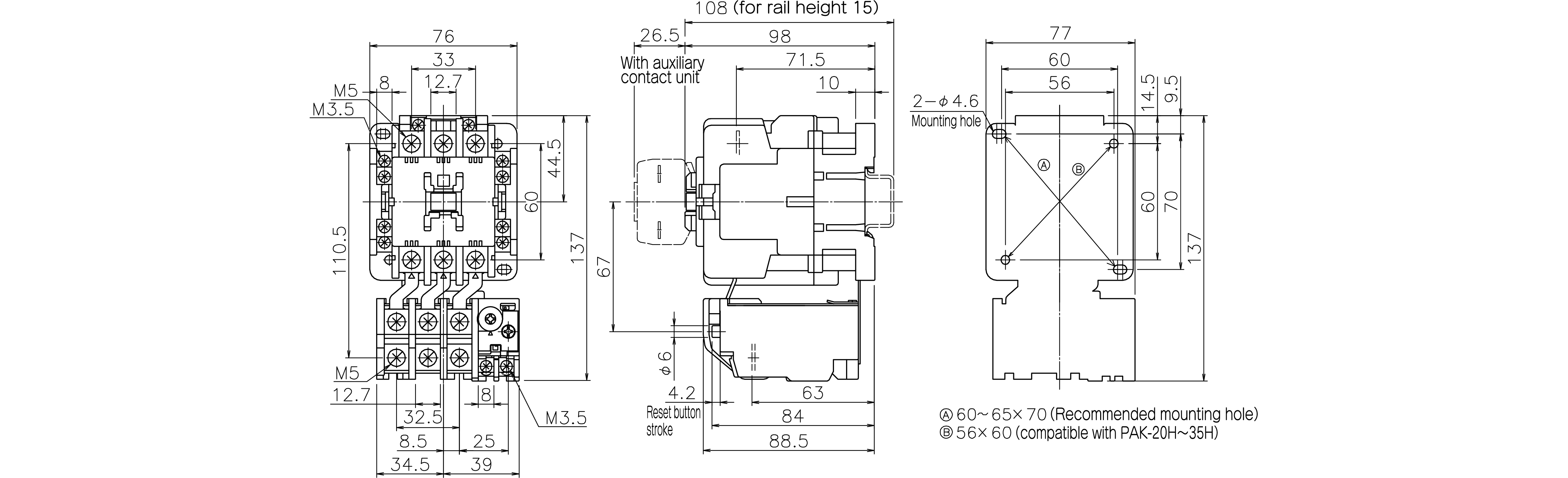

PAK-26JTC・35JTC・50JT

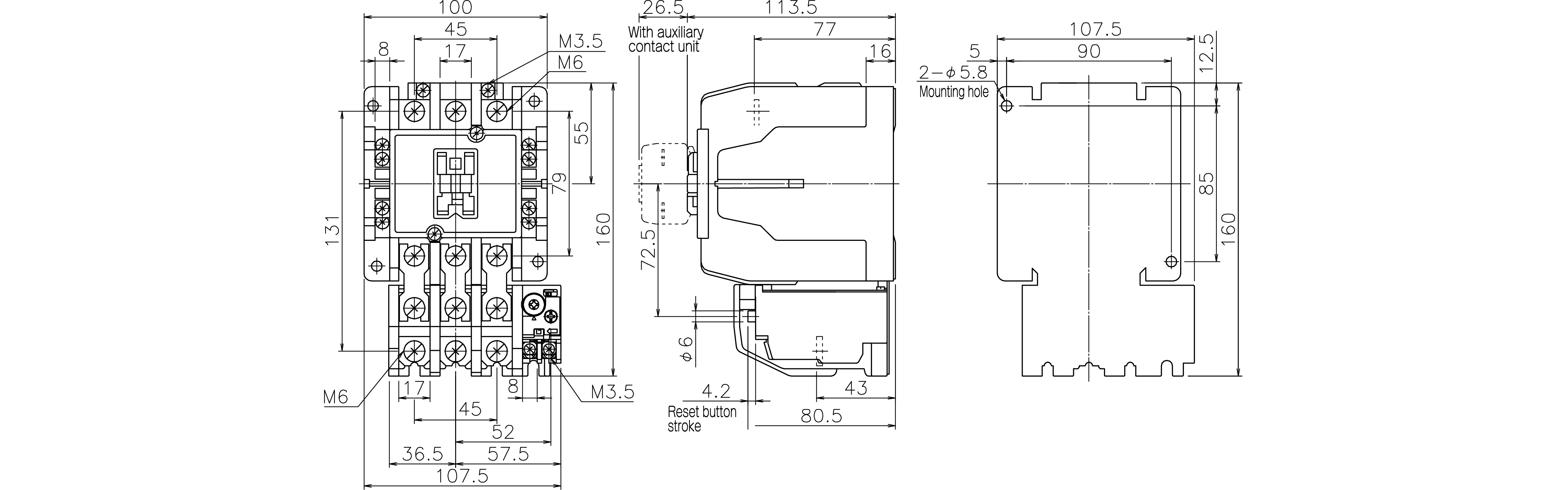

PAK-50HTC・65HTC・80HTC・95HT
PAK-100HTC・125HTC

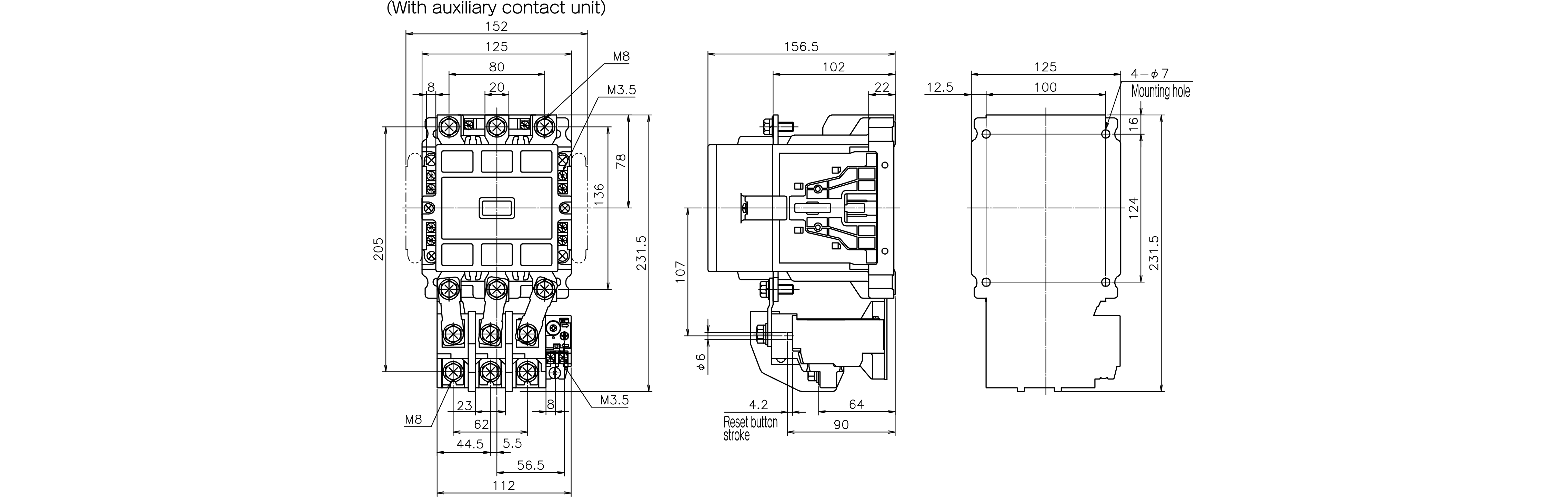

PAK-150HTC

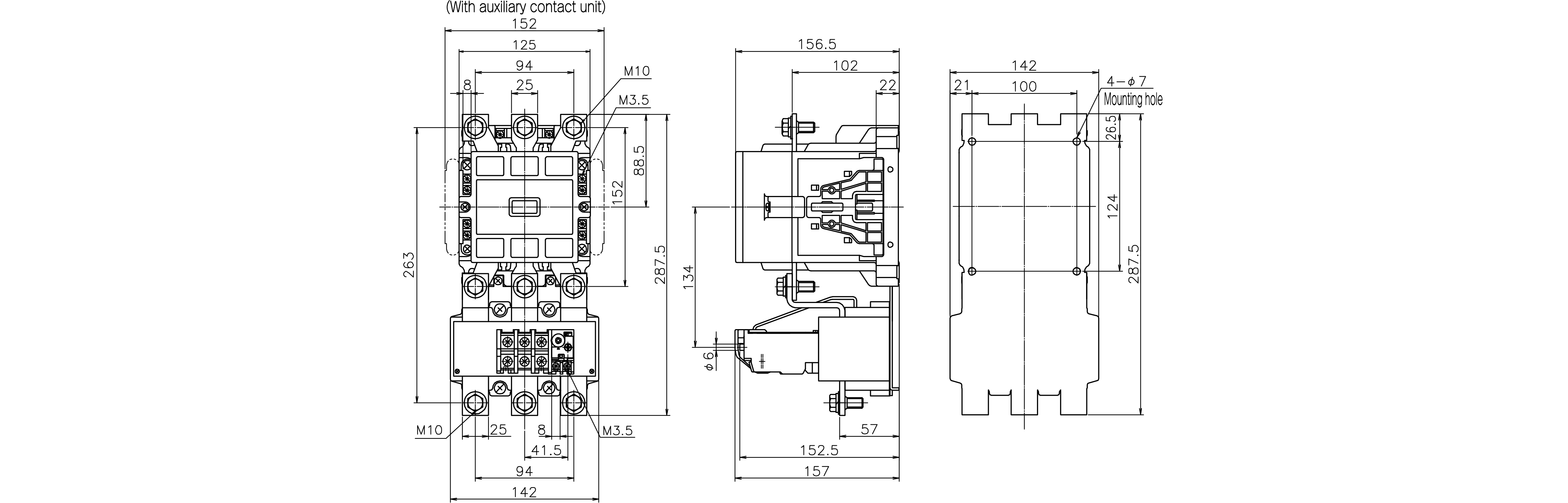

PAK-220HTC

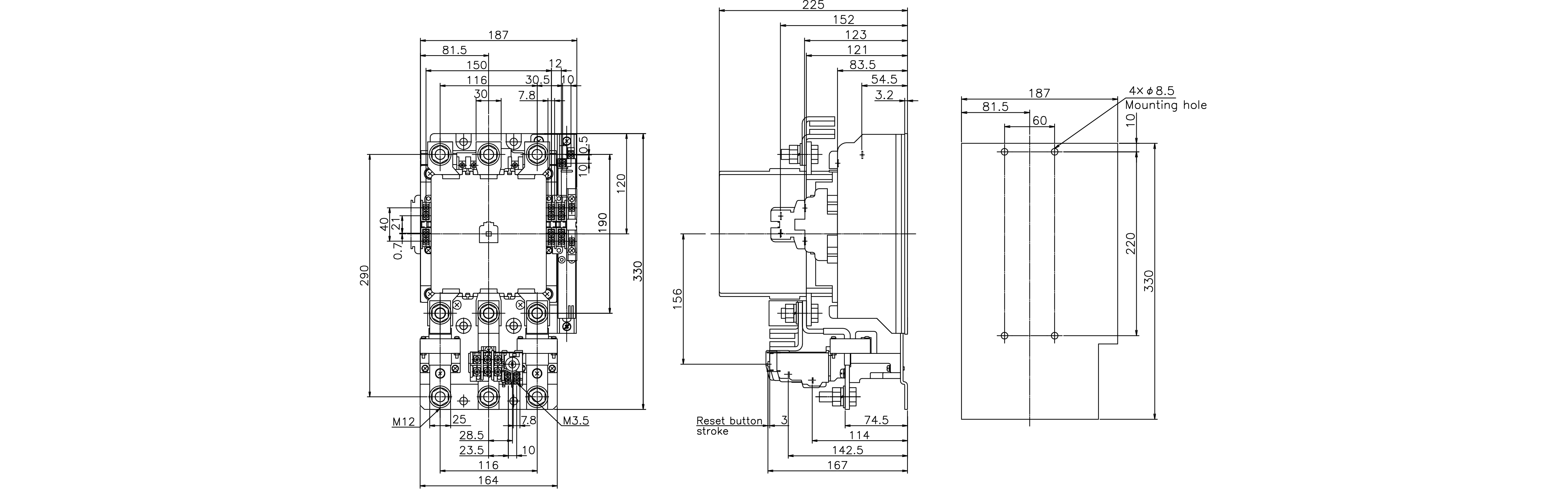

PAK-300JT・400JT

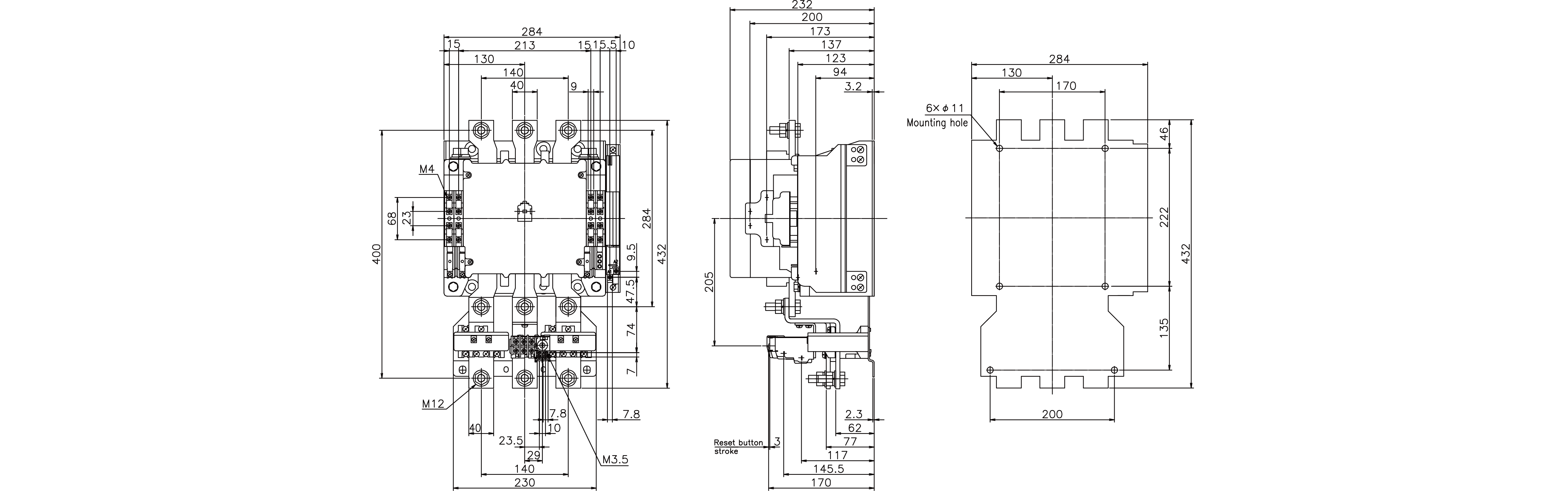

PAK-600JT
FAQ
- 01
- What optional accessories are available?
The following optional accessories are available:
■ Auxiliary contact units
Small electromagnetic contactors from 11J to 95H are available with 2-contact and 4-contact head-on type auxiliary contact units. Models 100H to 220H are available with 2-contact side-on type auxiliary contact units.
■ Finger protection function terminal covers (Models 6JC to 50J)
■ Terminal protection covers (Models 50H to 800J)
■ Coil surge absorption units (Models 11J to 50J)
These suppress surge voltages generated by the coil. Models 50H to 800J have built-in surge absorption functions.- 02
- What standard certifications do the products offer?
Some models feature UL, cULus, CCC, and TÜV international certification. They also meet JIS and IEC standards.
* cULus: Safety standard certification for Canada and the US from UL
* CCC: Mandatory certification under China GB standards
* TÜV: German Technical Inspection Association- 03
- Can the products be mounted on rails?
They are readily mounted on the 35 mm wide rails specified in DIN, IEC, and JIS C 2812 standards. (Models 6JC to 50J)- 04
- Can they be used to replace or upgrade existing products?
In most cases, yes. This may not be possible in certain cases due to the number of auxiliary contacts or special specifications or in cases involving customer-specific products.Product category- TOP
