A Type Control Center
The compact cabinet design saves space. There is no need to shut down the busbar when changing unit sizes. The unit door hinge positions have been changed to allow double-door opening for improved ease of maintenance and work efficiency for both the unit compartments and cable handling compartments.
Features
- Compact Cabinet Design
The compact design uses a standard cabinet width of 600 mm with depth reduced to 550 mm, combining space savings and easier layout planning. Differences in panel dimensions for different wiring methods have been eliminated, with both single-sided and double-sided types sharing the same design and configuration. - No need to shut down the busbar when changing unit sizes
Compared to the conventional S1 type, the mounting position of the vertical busbar support has been changed from the unit shelf to the cabinet itself, eliminating the need to shut down the busbar when changing unit sizes. - Improved ease of maintenance
The unit door hinge positions have been changed to allow double-door opening. This improves ease of maintenance and work efficiency for both the unit compartments and cable handling compartments.
Model type

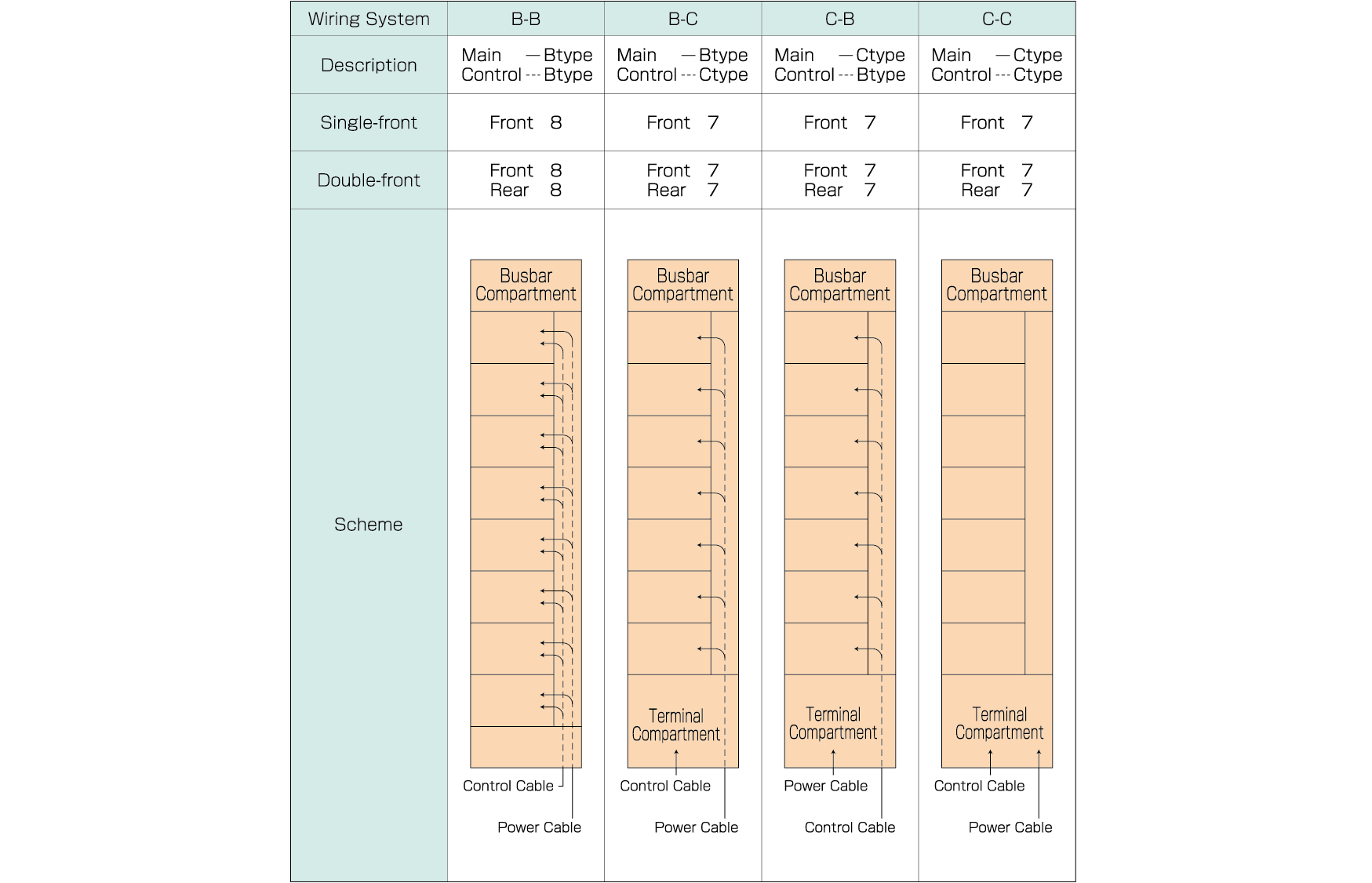

Wiring types and number of units to insert
Wiring type Number of units/ panel Panel dimensions（mm） Single-front Double-front Single-front/Double-front W D H B-B 8 16 600 550 2350 B-C 7 14 C-B 7 14 C-C 7 14 Specifications
Learn more
Applicable standards JEM1195 Ambient temperature ‐5 ℃ to 40 ℃ Enclosure type Enclosed Frame structure Double-front type and Single-front type（basic plate thickness 1.2 mm） Number of units Front 7（Rear 7） Wiring type Main B（Standard） C Control C（Standard） B Unit connection Main Automatic stab connection Control Manual plug connection Rated voltage（V) Main AC200/220 AC400/440 Control AC100/110 AC200/220 Rated busbar current（A) Horizontal 600・1000・1200・1500・2000 Vertical 500 Rated short-time current（r.m.s/0.5sec）（kA) 50 MCCB Rated breaking current（kA) 50 Wiring types and number of units to insert
Dimensions

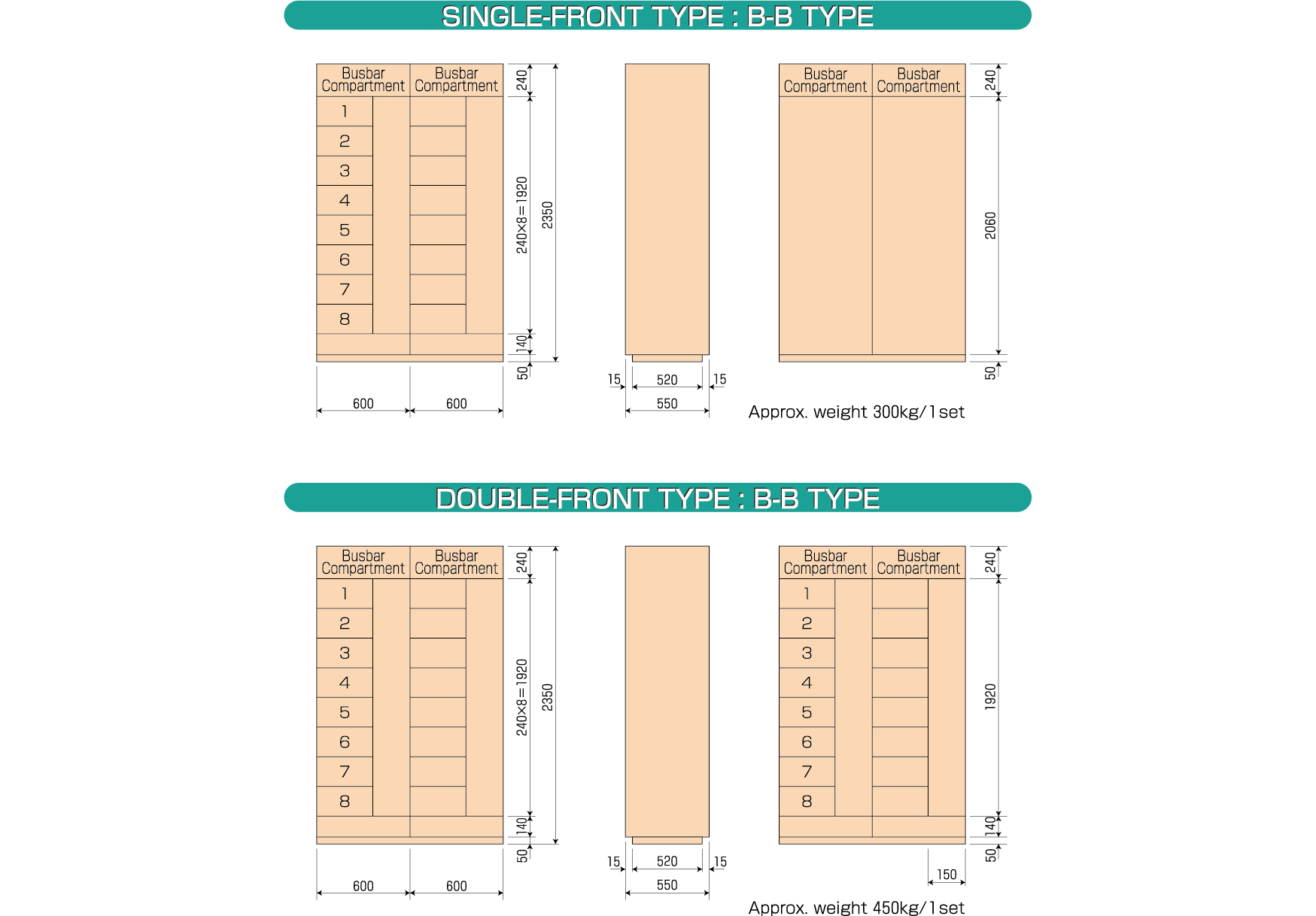

B-B type

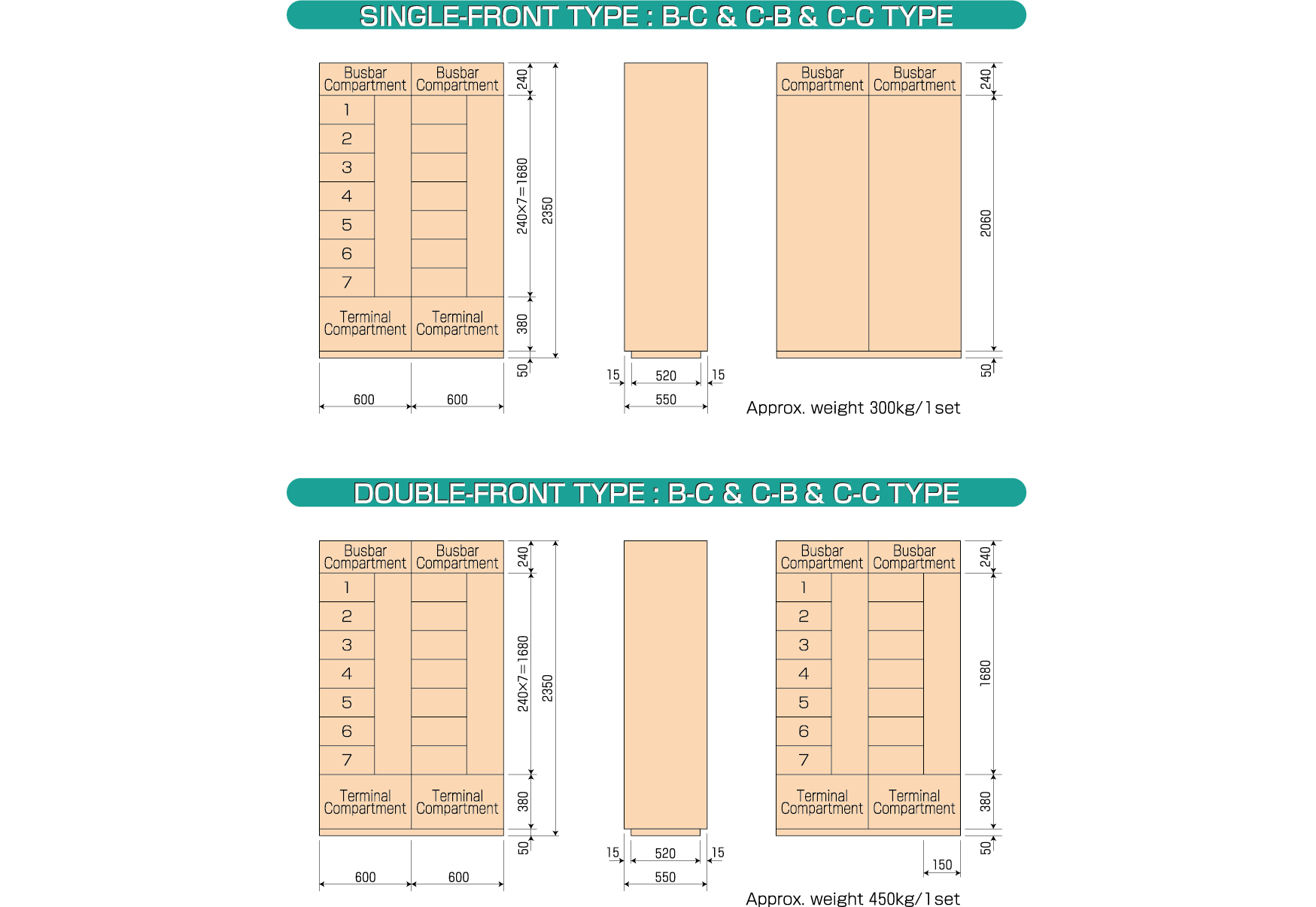

B-C・C-B・C-C type
Cable duct
■ Cable duct
Please contact us for more details.
