- Motor Control Center
- Walk-In Type Outdoor Control Center
PRODUCTS
Walk-In Type Outdoor
Control CenterThese units feature enclosures rated to IP54 for protection in environments exposed to dust, dirt, or water. Workspace is provided to allow maintenance, cable connections, and other tasks in any weather. Space can be expanded by adding additional panels. An air conditioning unit can also be installed.
Features
- Designed to meet IP54 requirements
The IP54 dust and water resistance enclosure protection rating ensures reliability even in harsh environments exposed to dust, dirt, or splashing water. * For more information on the panel interior environmental conditions, see “Panel Interior View” and “Exterior View” at the bottom of the page. - Design emphasis on ease of use
Provides work space to allow maintenance, cable connections, and other tasks under any weather conditions. - Future expandability
Equipment can be expanded by adding individual panels. * To allow expansion, the end panels must be moved to accommodate the number of panels added. For more information on the panel connection faces, see “Panel Connection Faces” at the bottom of the page. - Space for air conditioning installation
Space is provided for an air conditioning unit to allow comfortable work indoors, regardless of weather. * The product does not include/feature air conditioning.
Specifications
Standard specifications (outdoor enclosure)
-
- Enclosure protection rating
- IP54
-
- Material
- Steel plate (urethane coating)
Option: Heat-shield coating (color: 5Y7/1 only)
-
- Insulation material (ceiling and sides)
- Glass wool
-
- Accessories
- Interior fluorescent light (Option: LED lighting may be used instead.)
Checker plate (floor)
-
- Distribution panel mounting dimensions
- 320 mm × 428 mm
* Intended for the installation of a residential distribution board to supply power for air conditioning and lighting
-
- Remarks
- Future expansion possible; can be shipped in batches (individual panels).
* Can also be shipped divided into main unit (including roof frame) and foundation frame.

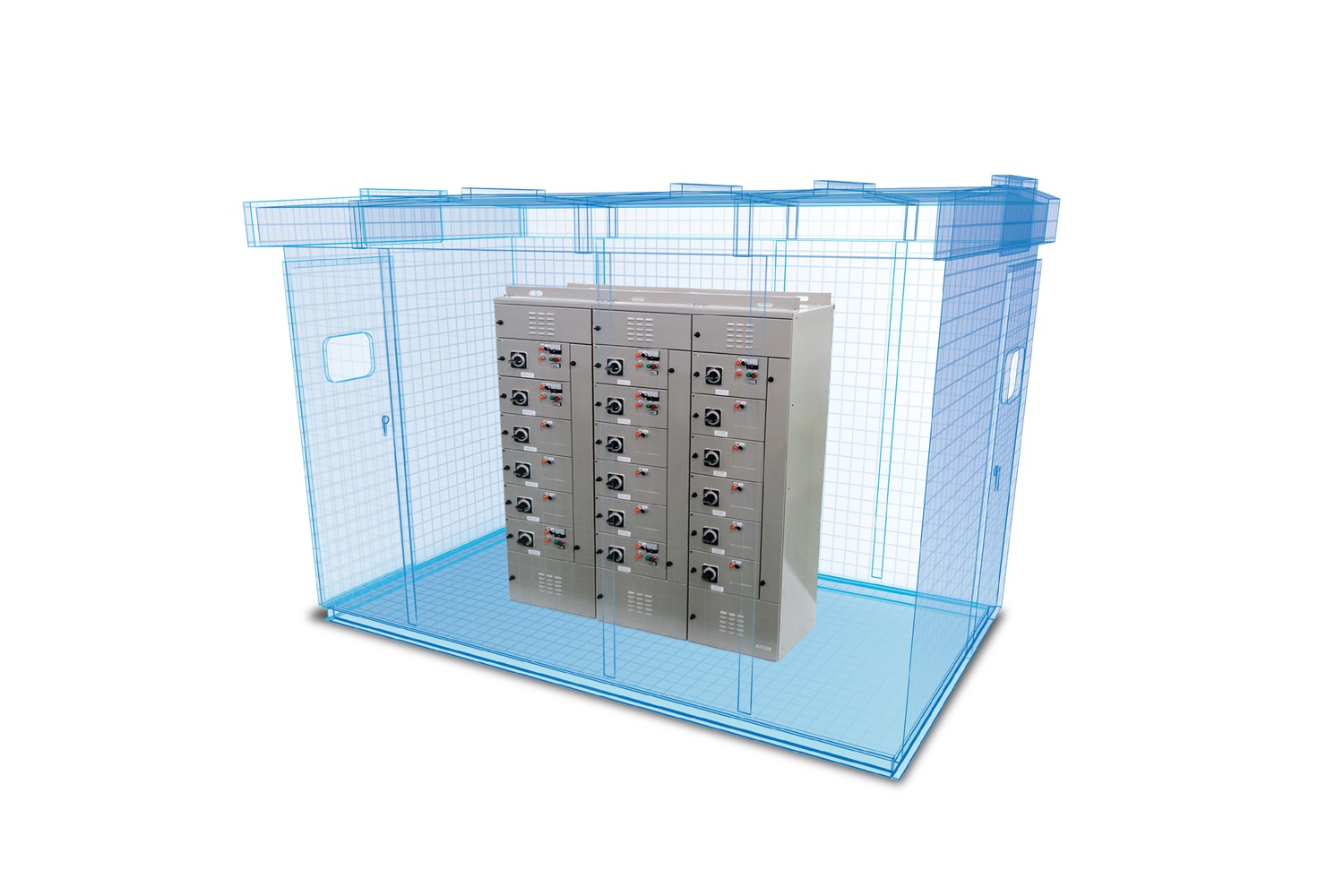

MCC Layout Diagram

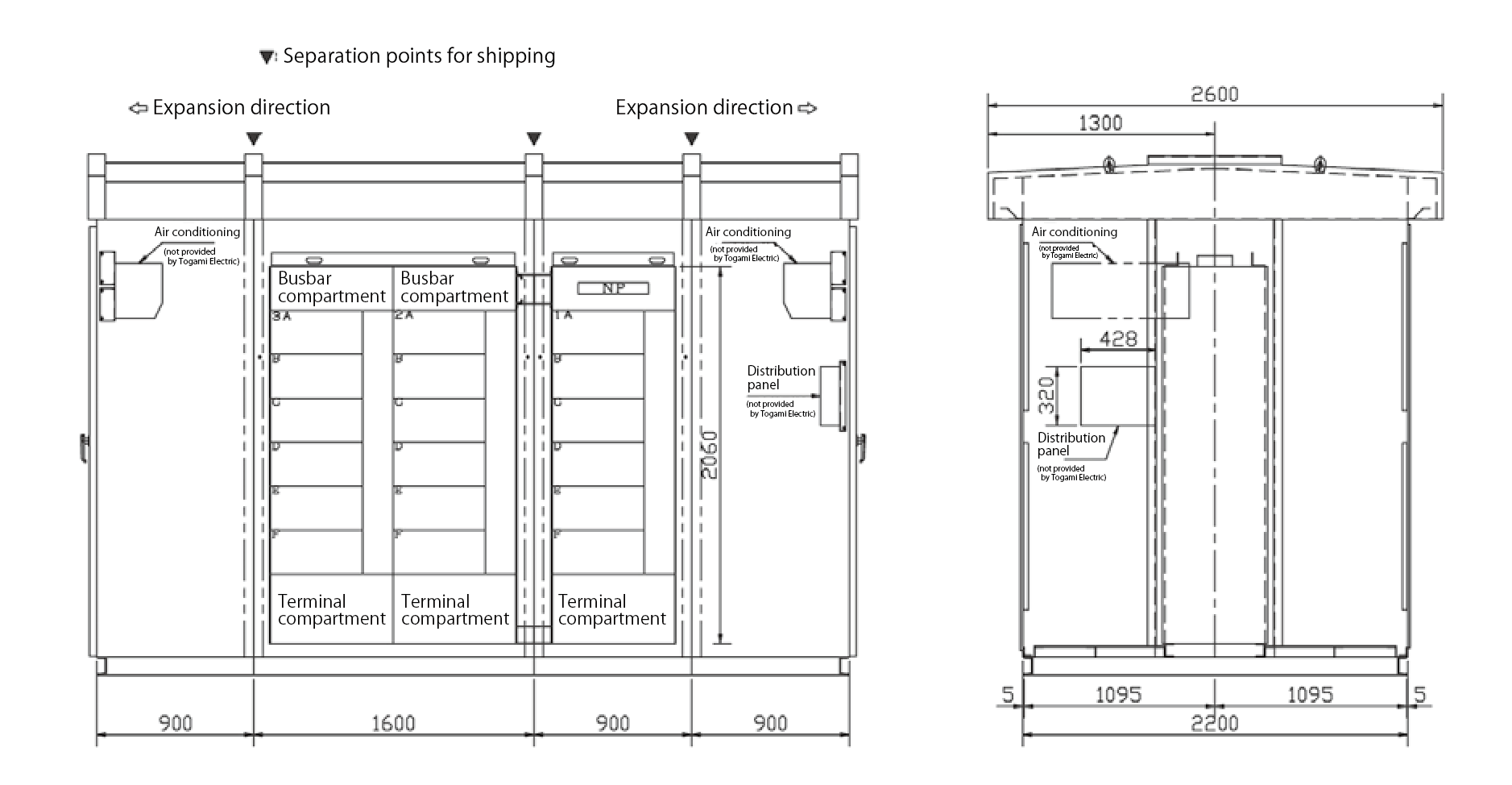

Dimensions

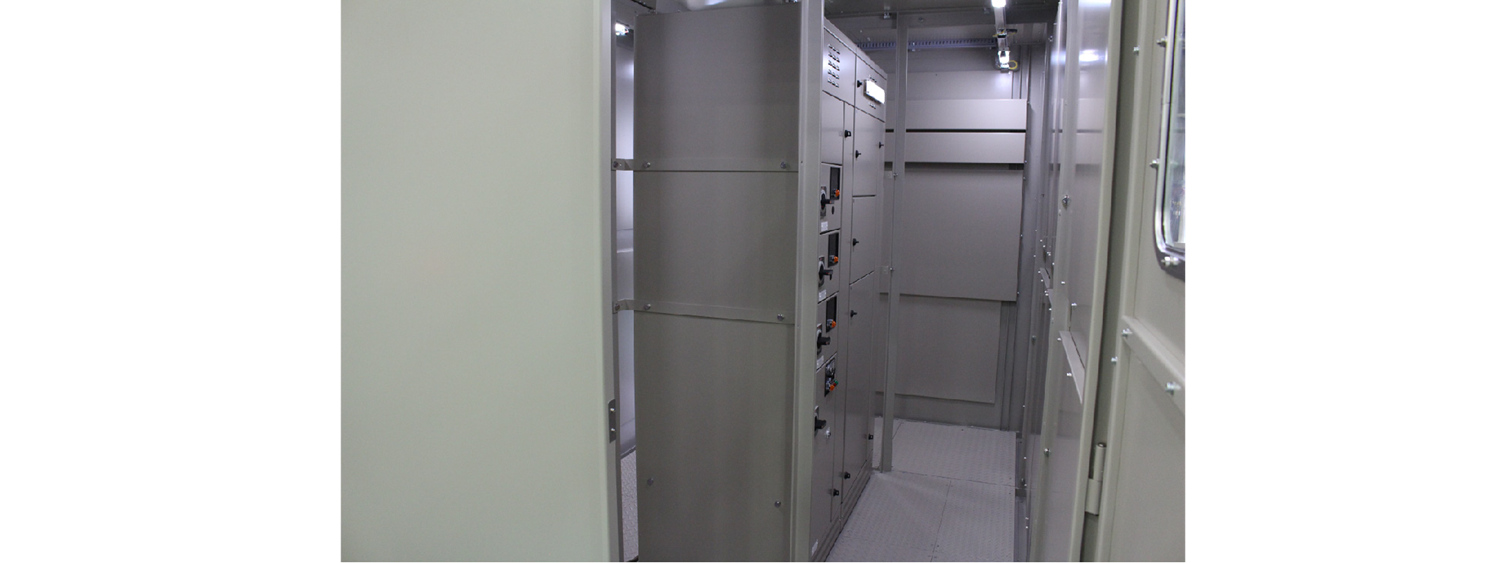

Panel Interior View

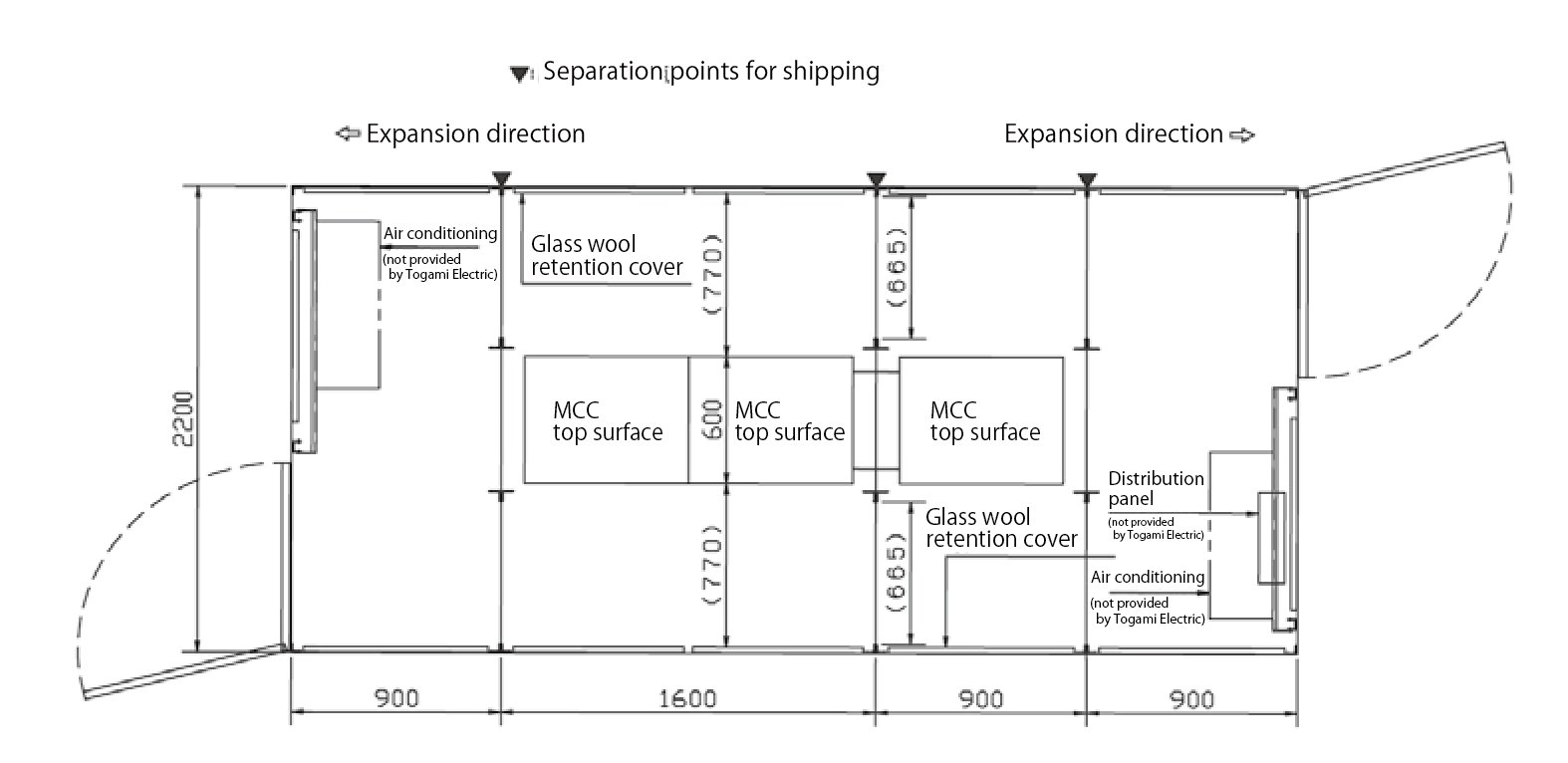

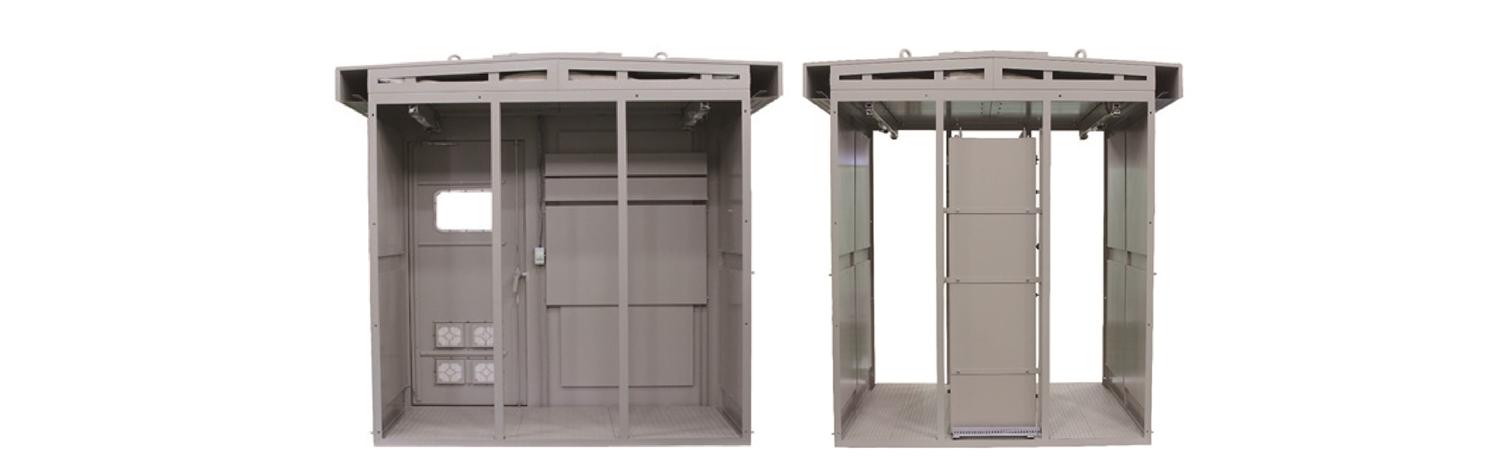

Panel Connection Faces

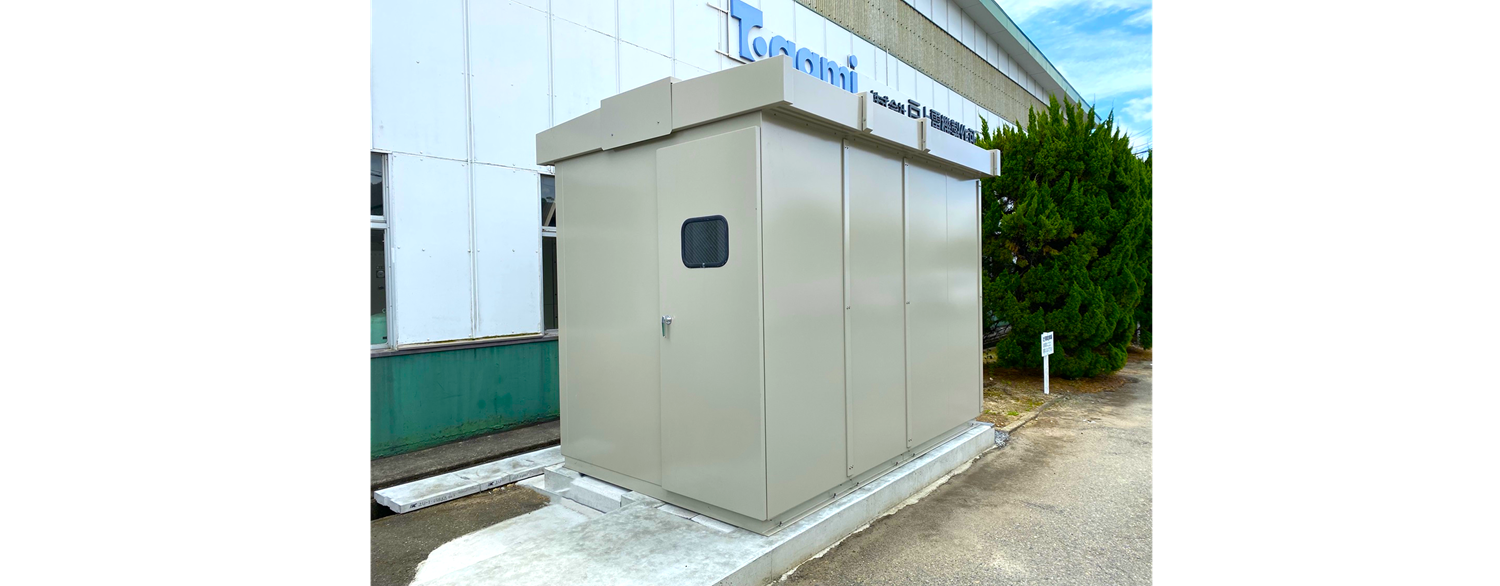

Appearance as Installed
Wiring types and number of units to insert
Wiring type B-C(Standard) B-B C-B C-C Description Main：C type
Control：B typeMain：B type
Control：B typeMain：B type
Control：C typeMain：C type
Control：C typeNumber of units to insert(Double-front) Front 6
Rear 6Front 7
Rear 7Front 6
Rear 6Front 6
Rear 6Please contact us for more details.
