MCC-A

E Type Control Center

E Type achieves space-saving by using multiple compartments in an economical size. Adoption of a circuit breaker with a built-in leakage alarm has made the unit compact at 160 mm. E Type is economically efficient by reducing the number of parts.

　　

Features

  • Adoption of circuit breaker with built-in leakage alarm has made the unit compact 160 mm. E type has been pursued economic efficiency by reducing the number of parts.
  • Units can be inserted or removed by use of a crank handle, which allows simple and secure operation. Two pairs of guide pins on the unit side and mounting holes on the frame side improves connecting reliability of vertical busbars and main circuit connecting parts of the unit.
  • For duble-front type, a set of vertical busbars are equipped in each side, which allows compatibility of units for each side.

Model type

Wiring types and number of units to insert


Wiring type Number of units/ panel Panel dimensions(mm)
Single-front Double-front Single-front Double-front
W D H W D H
B-B 12 24 700 450 2350 700 700 2350
B-C 10 20 700 450 2350 700 700 2350
C-B 10 20 700 450 2350 700 700 2350
C-C 10 20 600 450 2350 600 700 2350

※ 160 mm unit is usable up to motor capacity of 7.5 kW(400 V).

Specifications

　 Learn more
Applicable standards JEM1195、IEC61439
Ambient temperature -5℃ to 40℃
Unit connection Main：Automatic stab connection
Control：Manual plug connection
Rated insulating voltage 600 VAC
Rated voltage Main　200/220 V　400/440 V
Control　100/110 V　200/220 V
Rated busbar current Horizontal　630, 1000, 1250, 1600, 2000 A
Vertical　500 A
Rated short-time current 50 kA r.m.s/0.5 sec
Rated breaking current 50 kA at 440 V

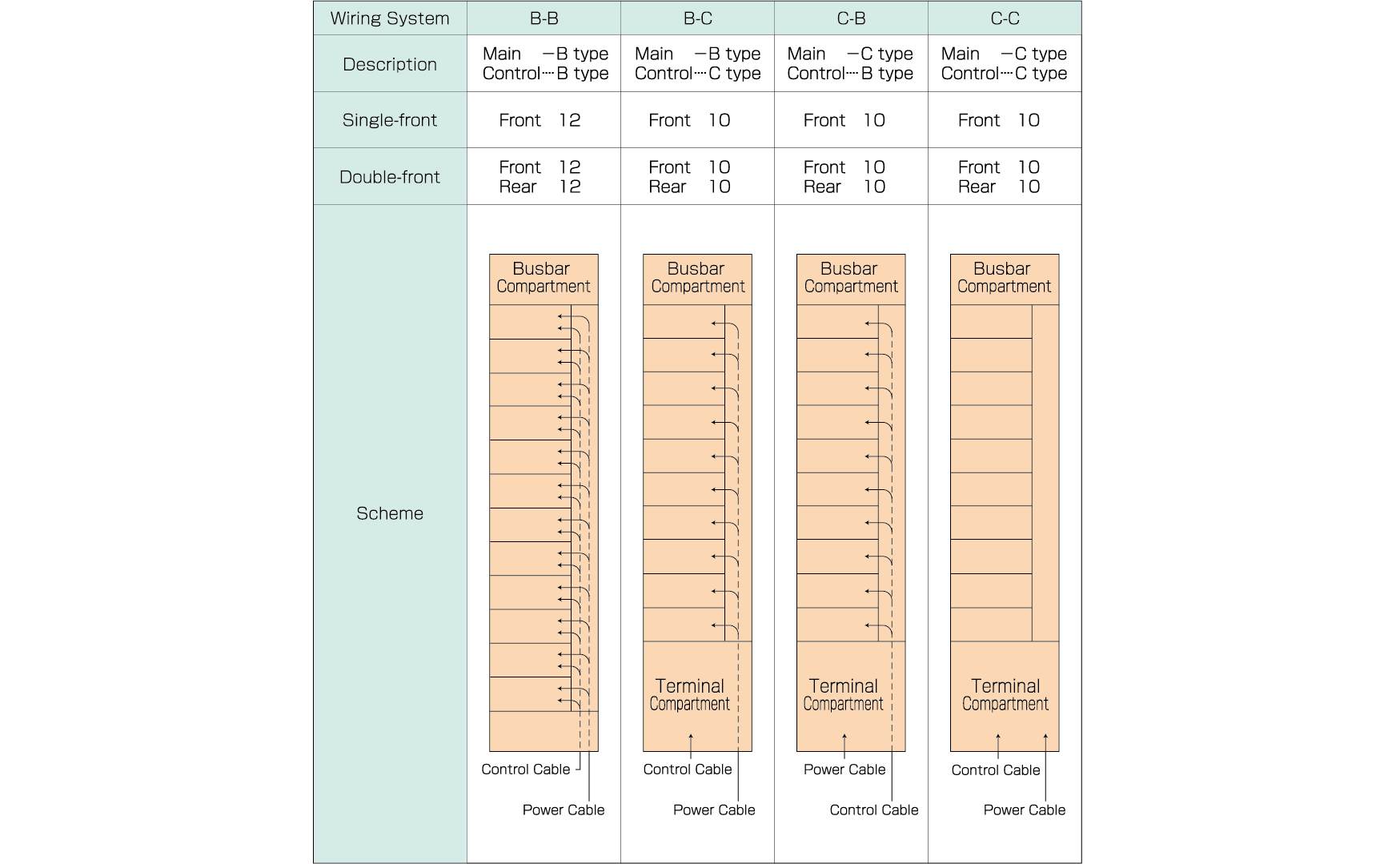

　 Wiring types and number of units to insert
Wiring types and number of units to insert
　

Dimensions

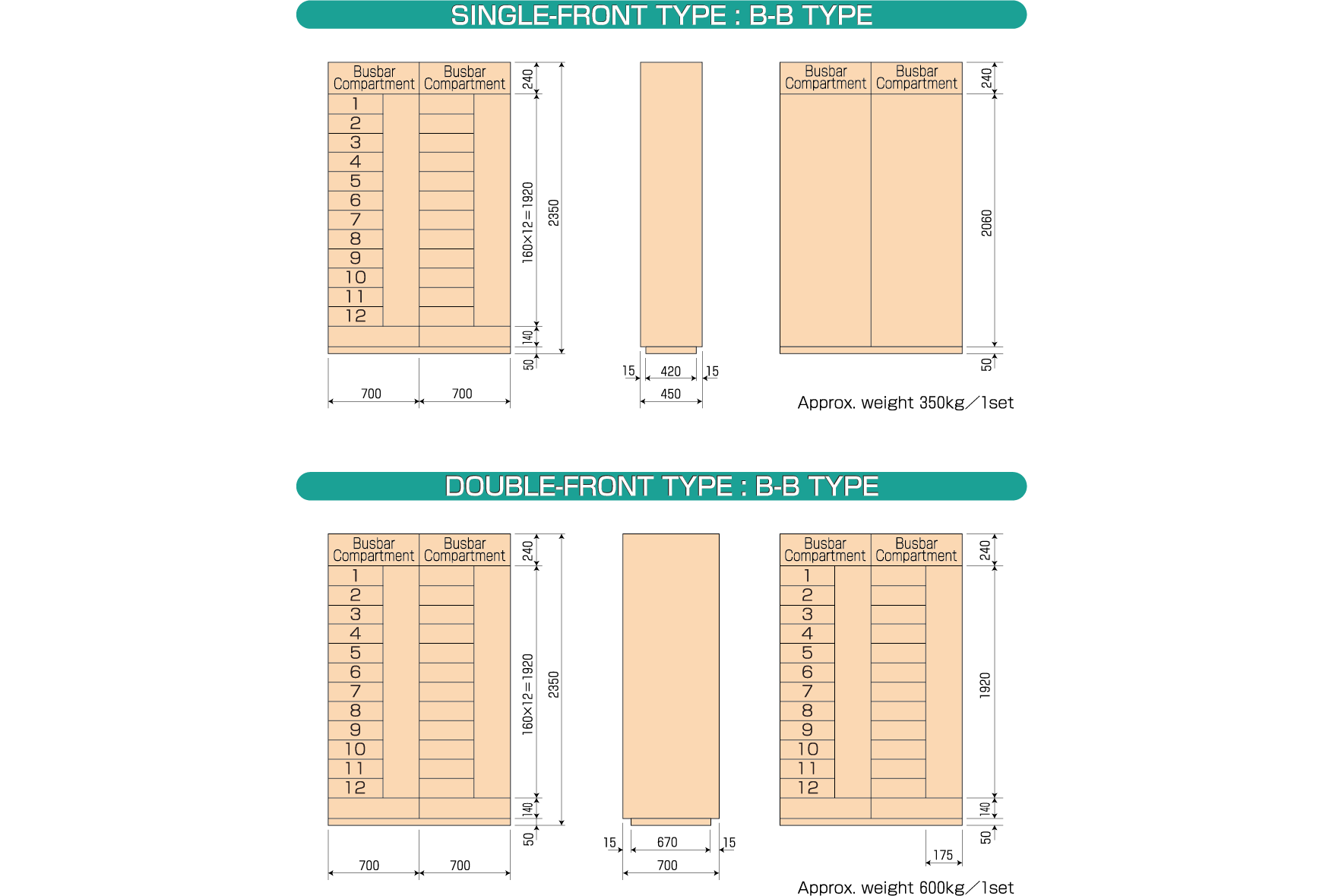

　 B-B type
B-B

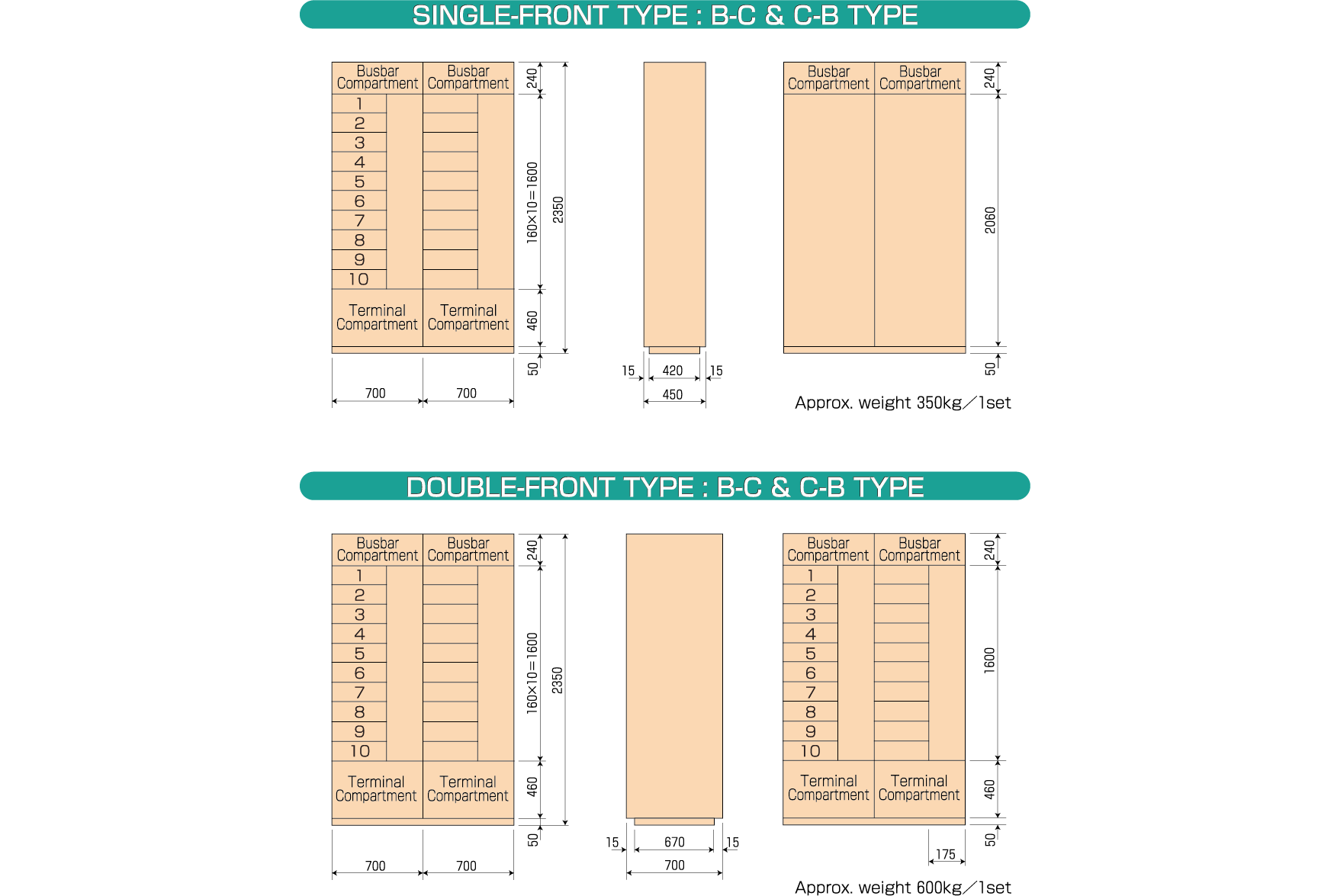

　 B-C・C-B type
B-C・C-B

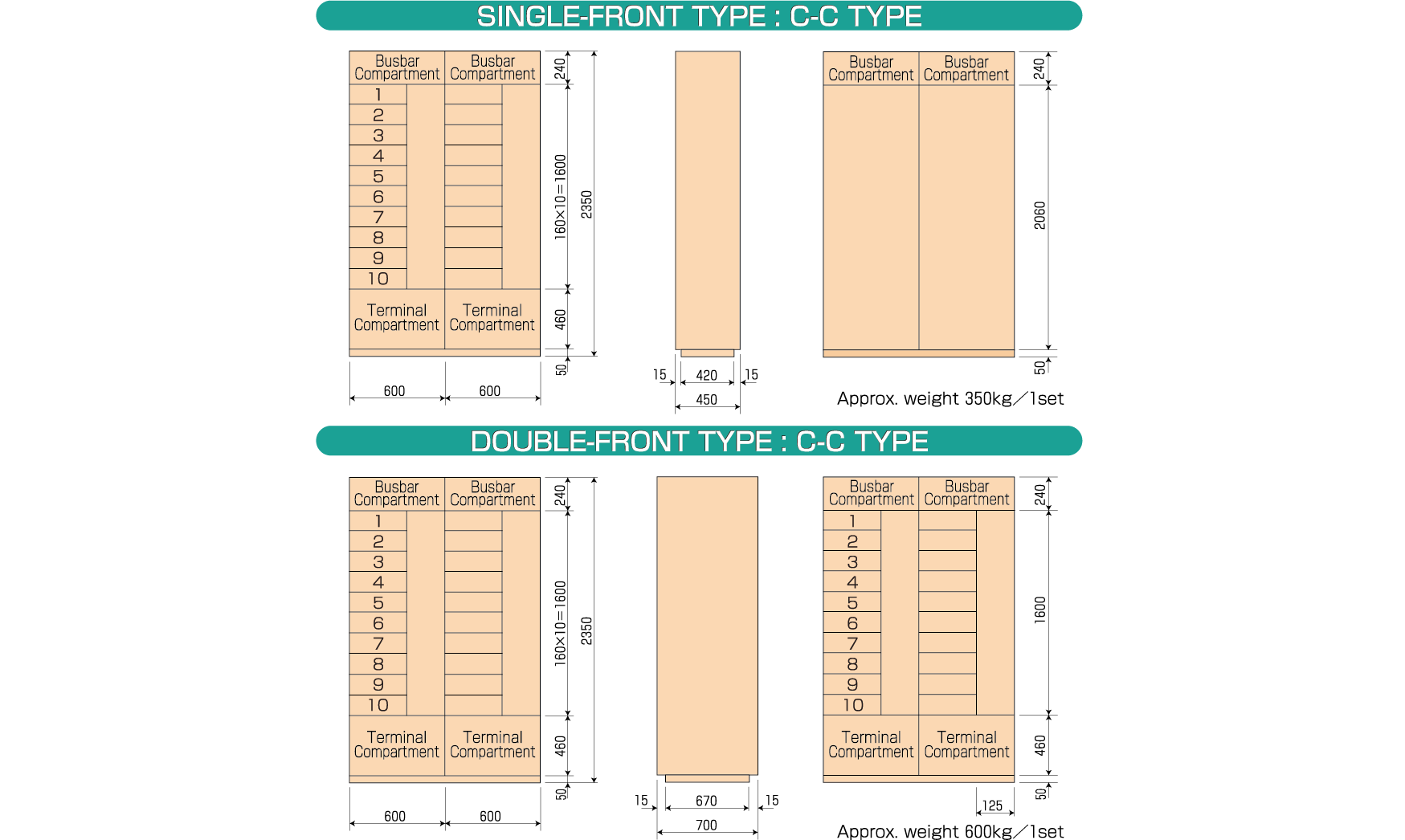

　 C-C type
C-C

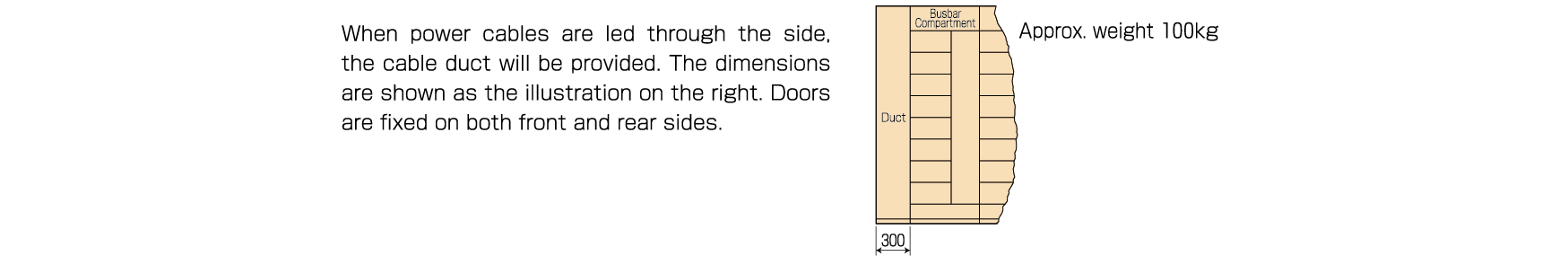

　 Cable duct

Cable duct

Please contact us for more details.
